19 inch 1280*1024 3G-SDI monitor

19 inch 1280*1024 3G-SDI monitor

19 inch rugged metal case 3G-SDI monitor compatible with HD-SDI.1280*1024 best resolution with square 5:4 aspect ratio. Optional for mirror function or flipped function.
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

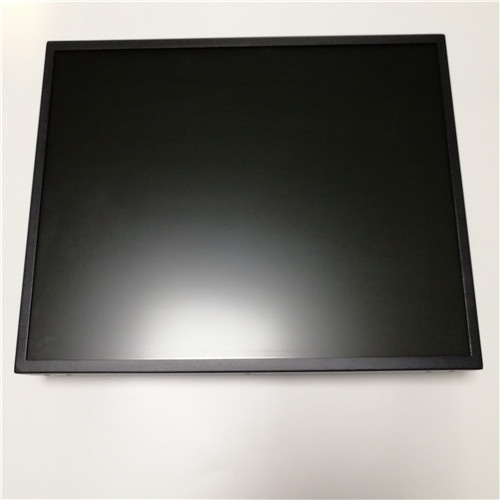

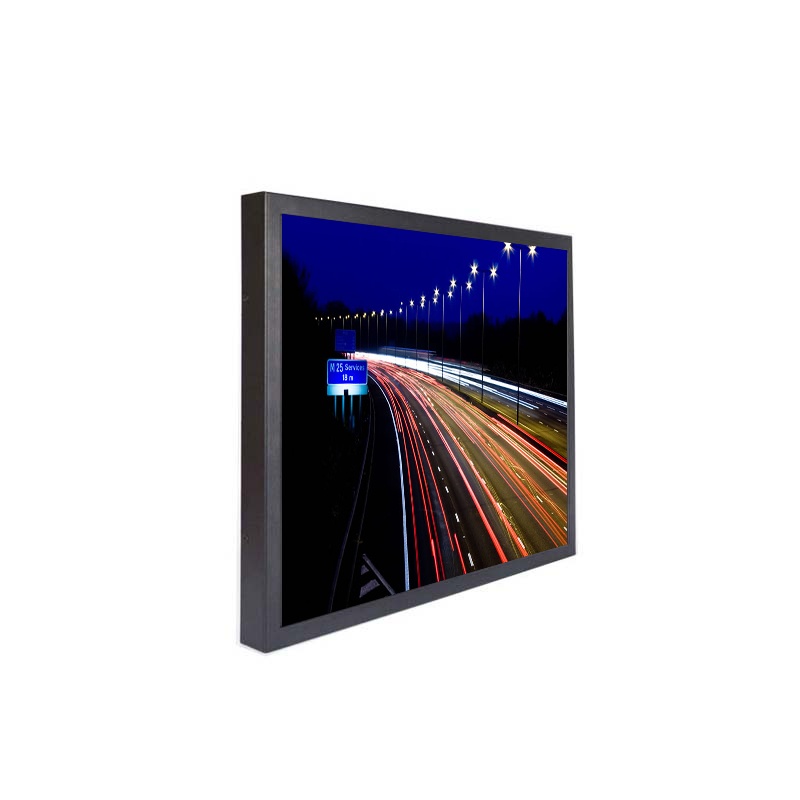

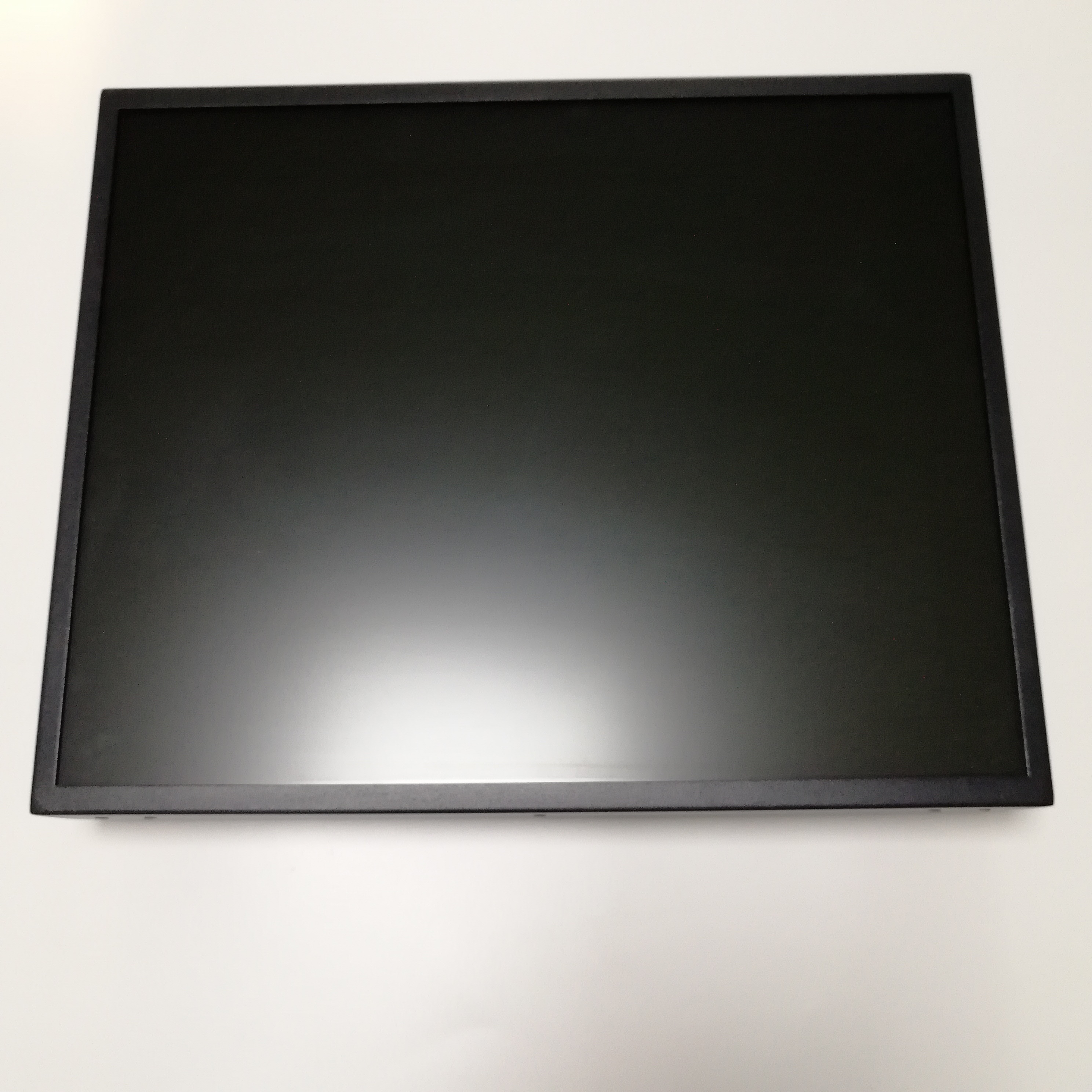

19 inch SDI monitor

Rugged Metal Case



250 nits

3G-SDI compatible with HD-SDI

Optional for high brightness 1000 nits

Optional for vertically and horizontally flipped function

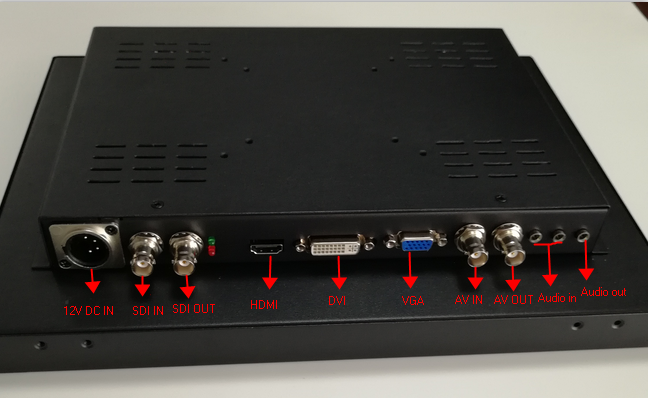

VGA+3G-SDI in*1+ 3G-SDI out*1+BNC IN*1+ BNC out*1+DVI+HDMI+Audio in*2+Audio out*1

Optional for teleprompter use without SDI function

H190-SDI 19 inch Metal case SDI monitor


Datasheet Pictures
Size 19"

Active Area 376.32*301.06 mm
Panel Type TFT-LCD
Backlight CCFL
Backlight Life 30,000 hrs
Resolution 1280*1024
Acpect Ratio 5:4
Contrast 1000:1
Brightness 250 nits; optional for high brightness 1000 nits
Viewing Angle (H/V) 170/160
Response Time 6 ms
Display Color 16.7M
Operating Temperature 0~50
Storage Temperature -20~60

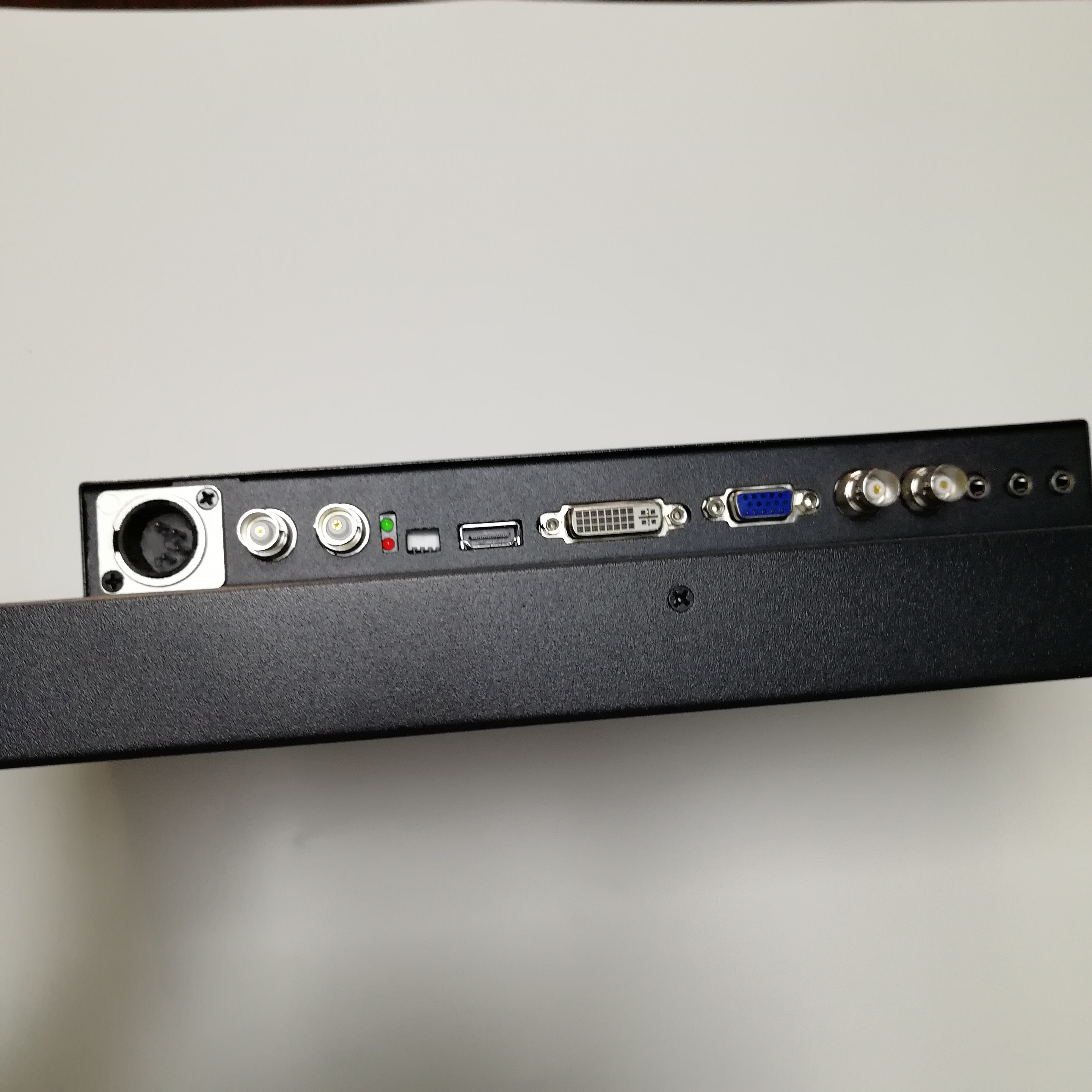

Video Inputs/Outputs VGA+3G-SDI in*1, 3G-SDI out*1, BNC IN*1, BNC out*1+DVI+HDMI
Audio Inputs/Outputs  *2/*1
Flipped function Optional Vertically and Horizontally
Touch NO

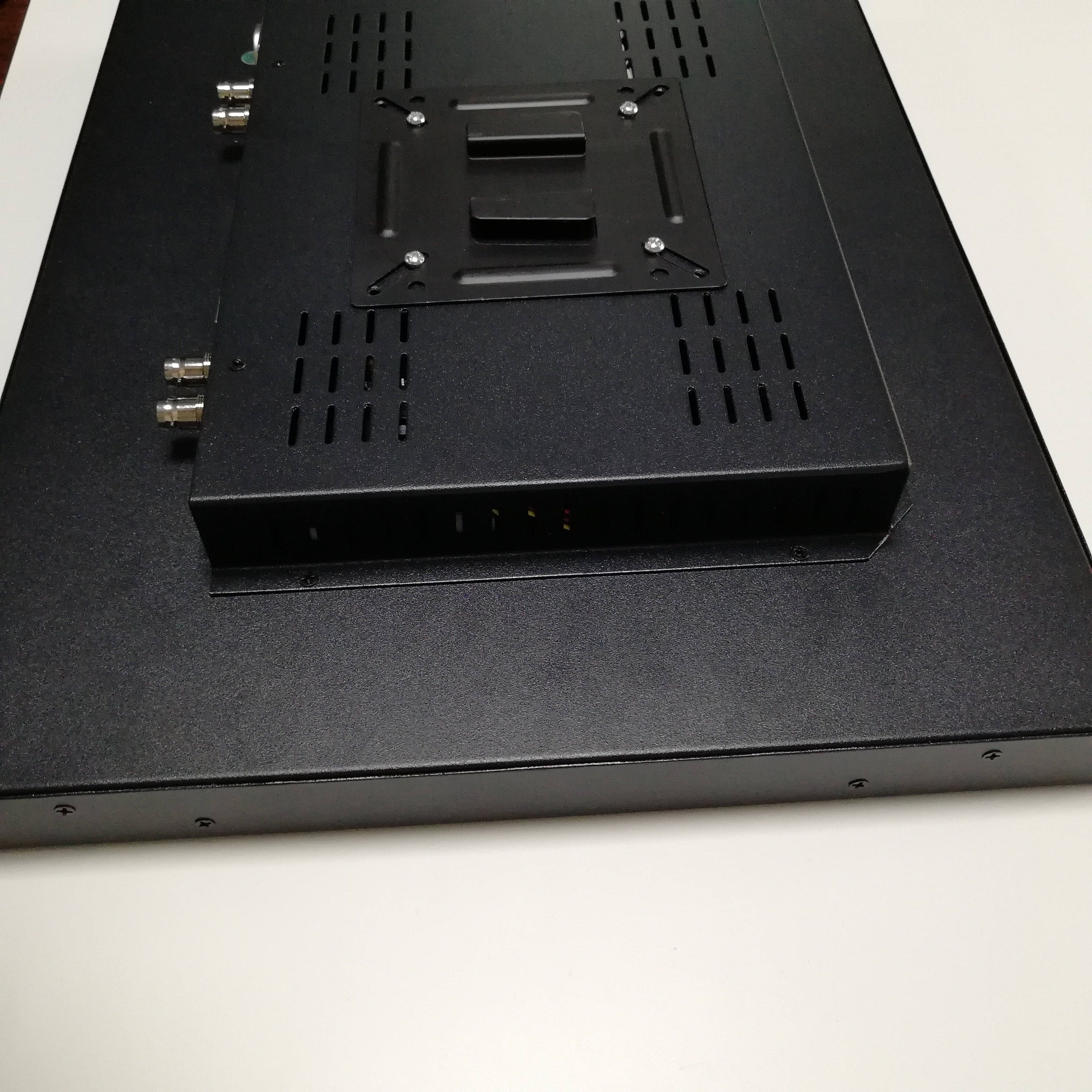

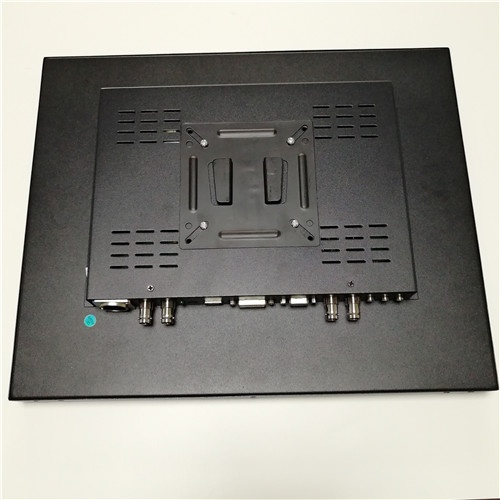

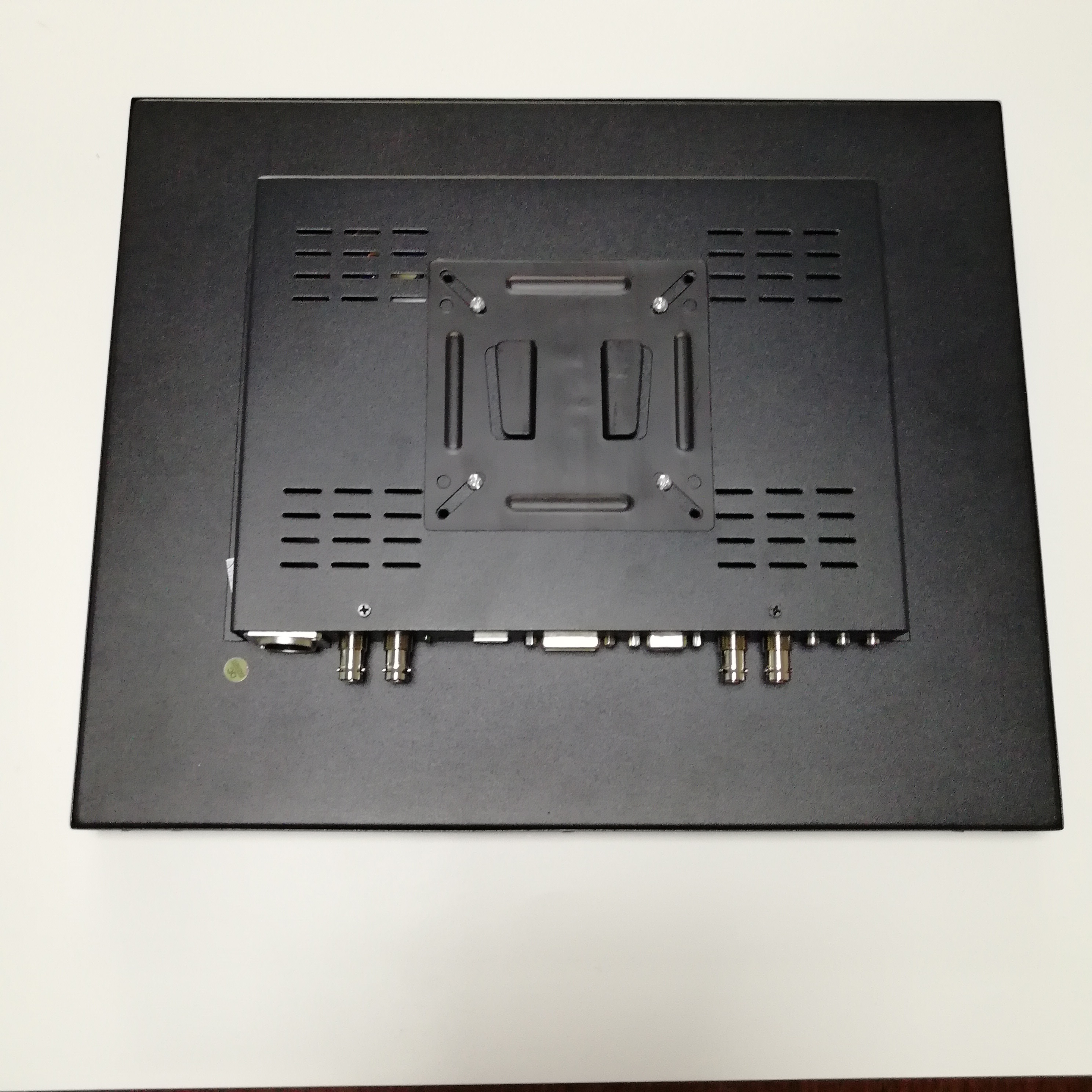

Installation VESA mount
Power Requirement DC 12V
Dimension (W*H*D) 39.9*34.5*6.0 cm
NET Weight 4.5  kgs
Gift box size 49*10.2*39.4 cm
Control OSD Control OR remote control
Certificates CE/FCC/ROHS/CCC
Accessories:VESA wall mount kit*1, VGA cable*1, BNC cable*2 and 12V 8A 4 pins XLR power adapter*1.
Delivery: EXW shenzhen
Lead Time: 10-15 working days after order confirmed; Sample within 5 workdays.
Payment: T/T in advance
Warranty: 1 year


VESA wall mount kit*1, VGA cable*1, BNC cable*2 and 12V 8A 4 pins XLR power adapter*1.
