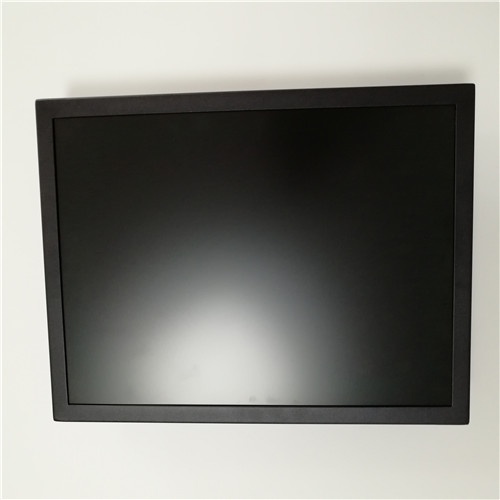

15 inch 1024*768 3G-SDI monitor

15 inch 1024*768 3G-SDI monitor

15 inch 1024*768 3G-SDI broadcasting use monitor with rugged metal case and optional for high brightness for teleprompter use
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

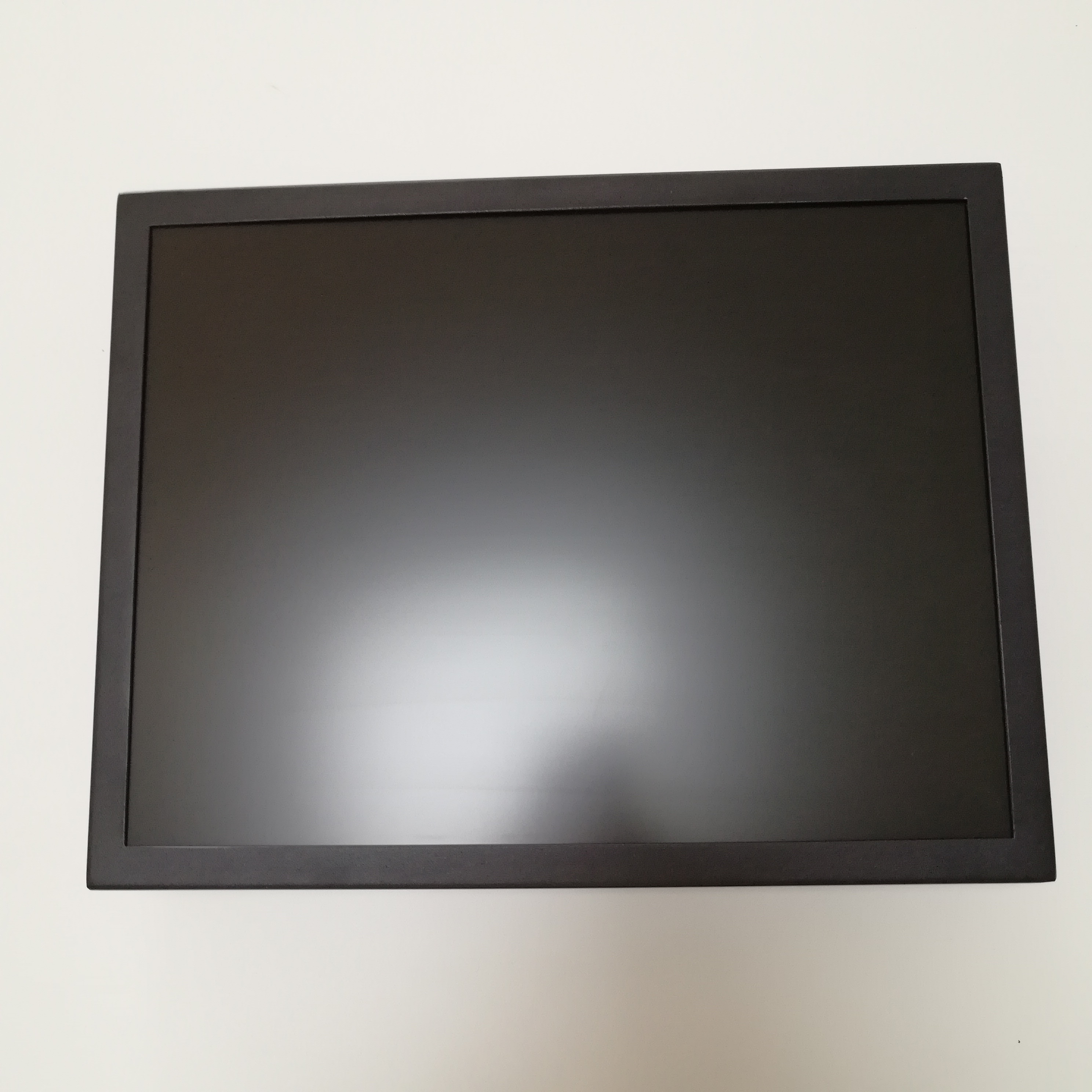

15 inch SDI monitor

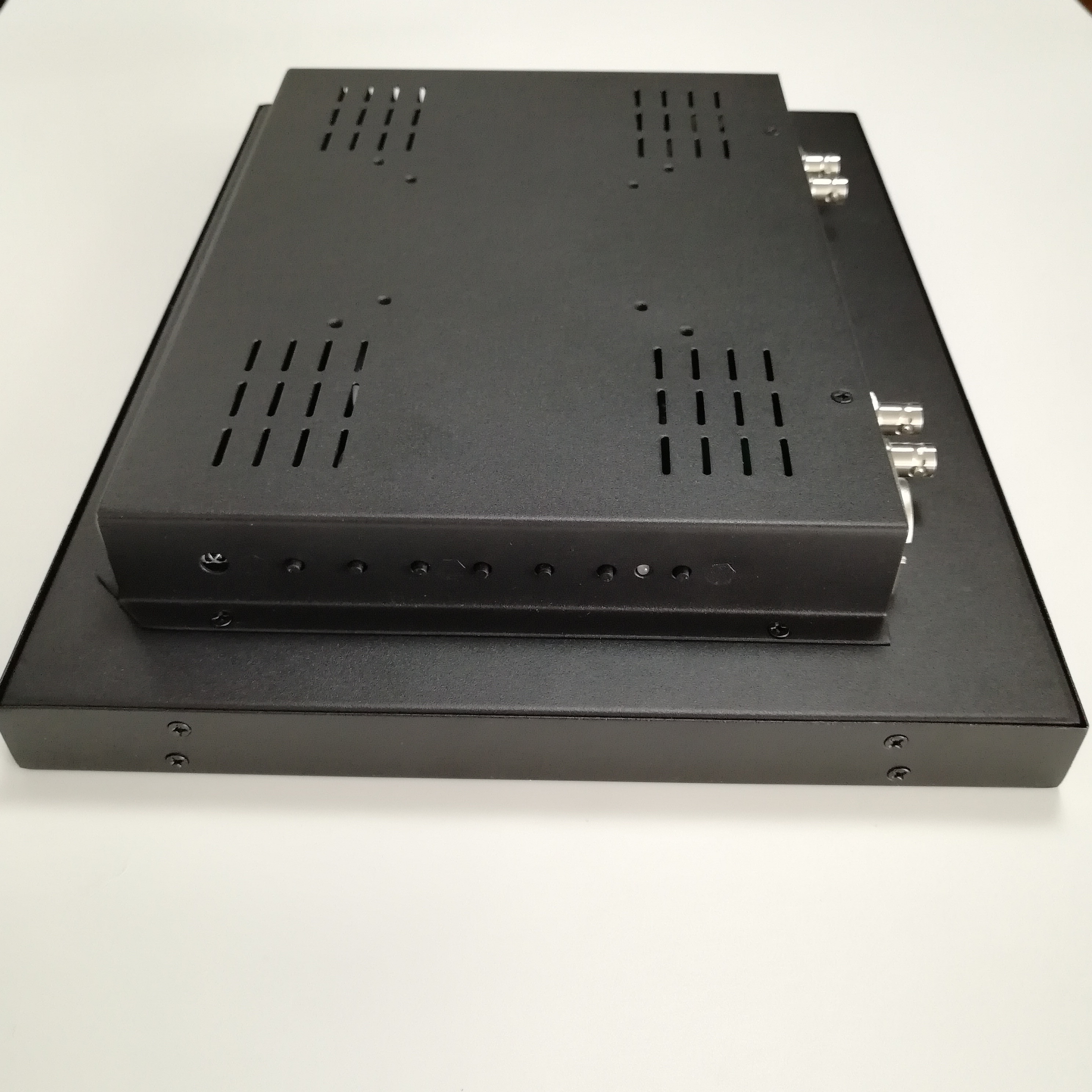

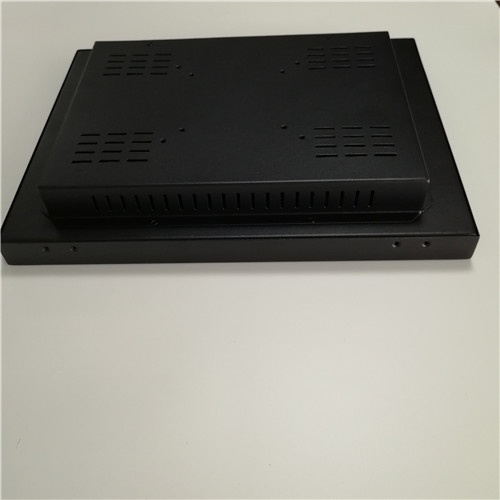

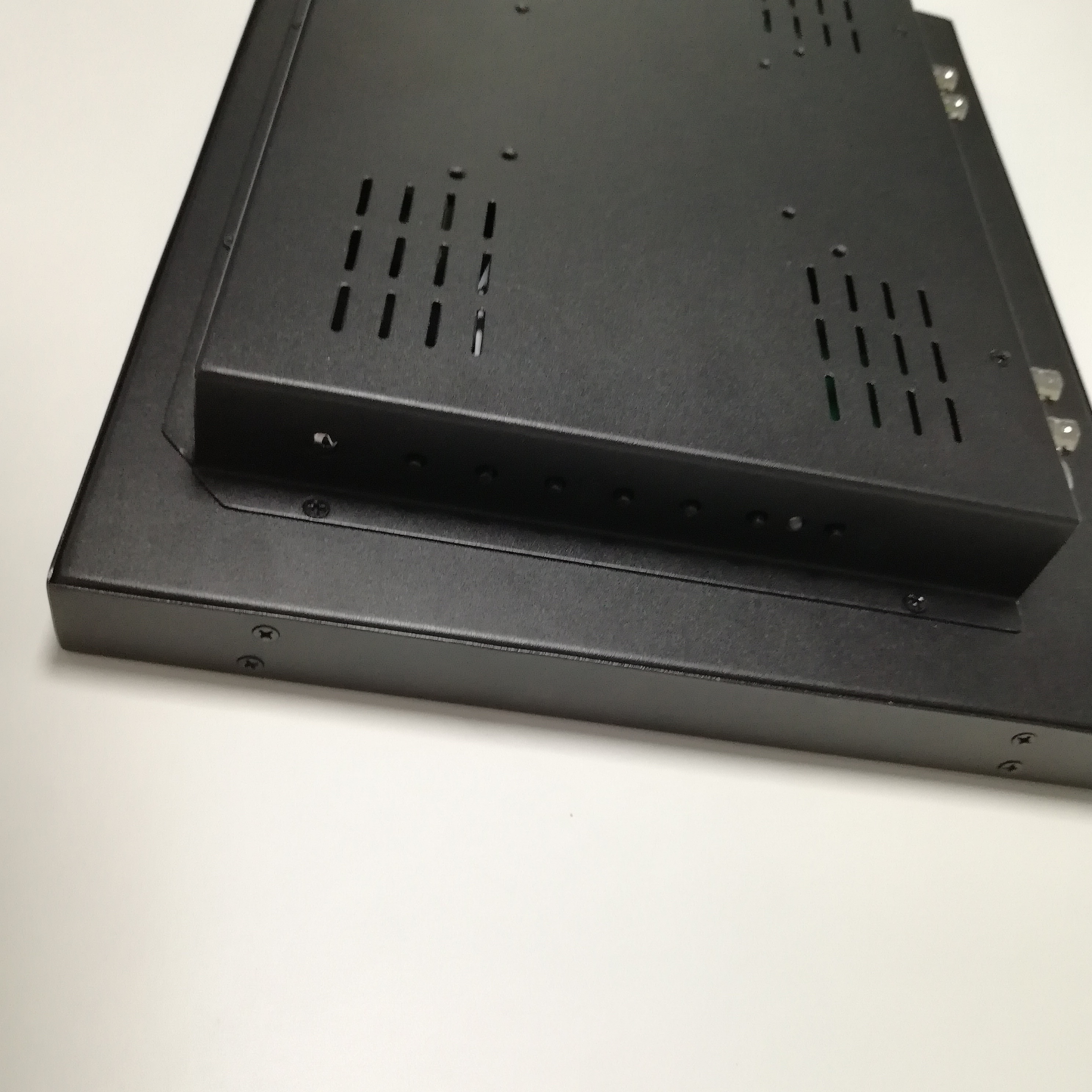

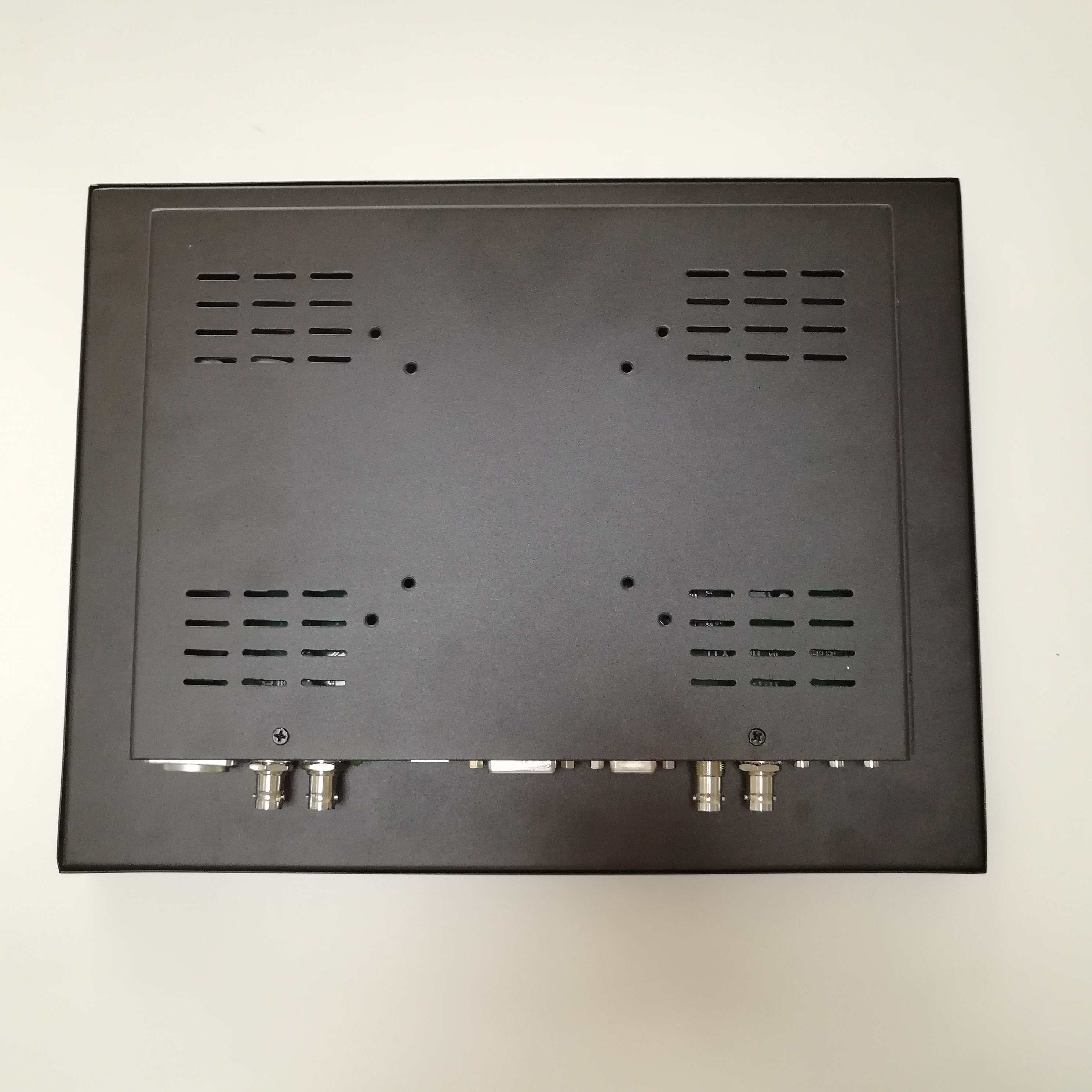

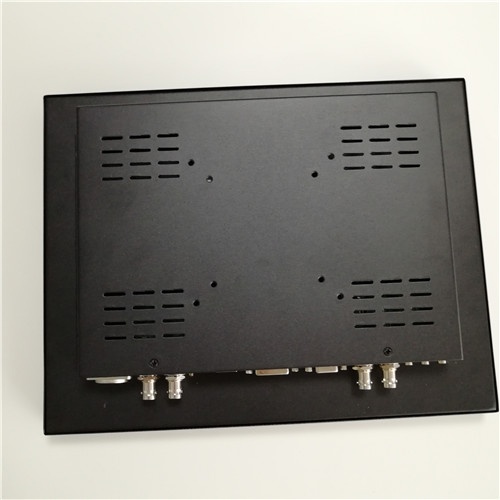

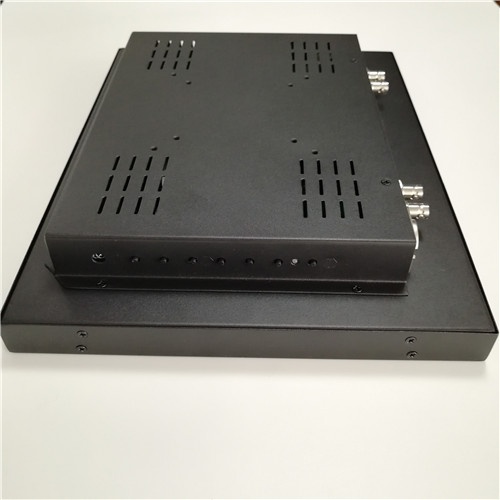

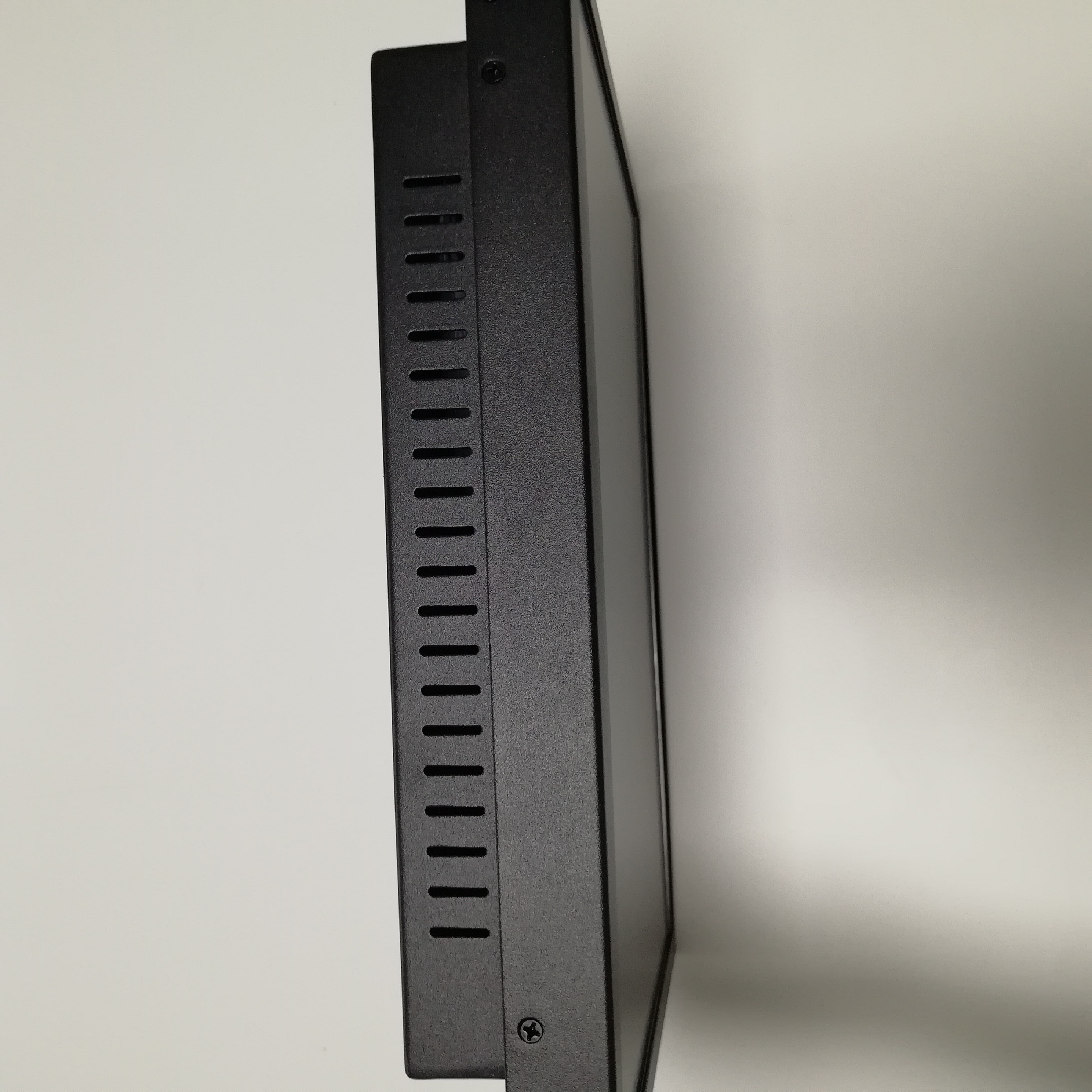

Rugged Metal Case

1024*768

350 nits

3G-SDI compatible with HD-SDI

Optional for high brightness 1000 nits

Optional for vertically and horizontally flipped function

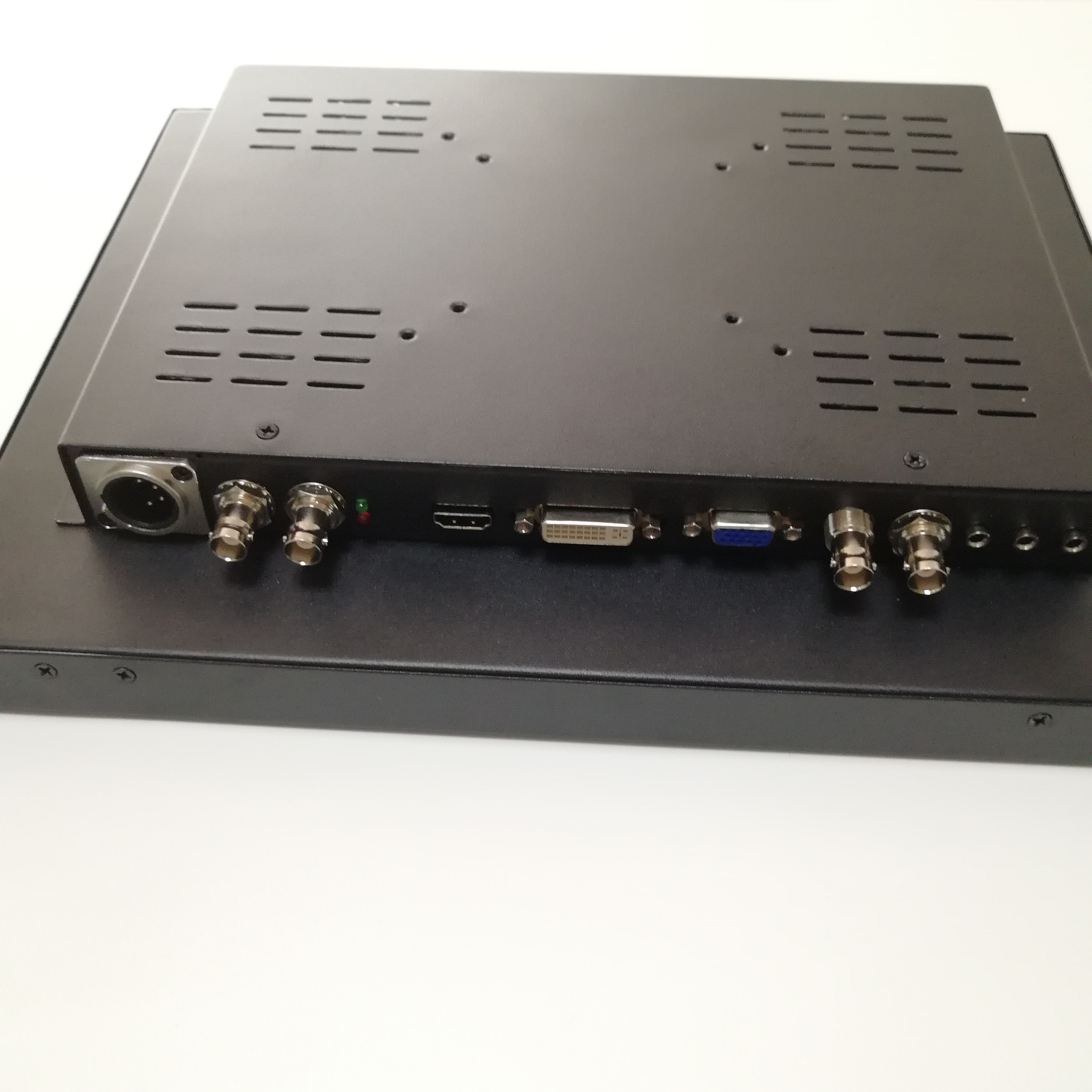

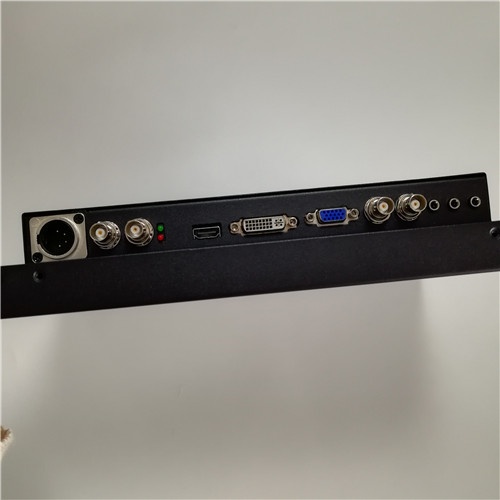

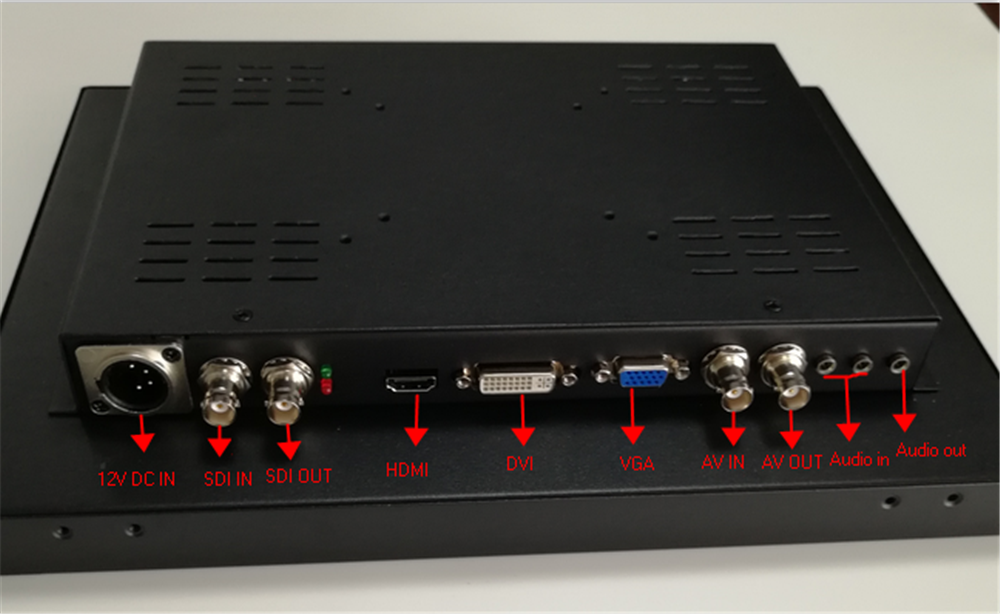

VGA+3G-SDI in*1+ 3G-SDI out*1+BNC IN*1+ BNC out*1+DVI+HDMI+Audio in*2+Audio out*1


Optional for teleprompter use without SDI function

H150-SDI 15 inch metal case SDI monitor


Datasheet Pictures
Size 15"
Active Area 304.1*228.1 mm
Panel Type TFT-LCD
Backlight LED
Backlight Life 50,000 hrs
Resolution 1024*768
Acpect Ratio 4:3
Contrast 800:1
Brightness 350 nits; optional for 500 nits and 1000 nits
Viewing Angle (H/V) 150/150
Response Time 6 ms
Display Color 16.2M
Operating Temperature 0~50
Storage Temperature -20~60
Video Inputs/Outputs VGA+3G-SDI in*1, 3G-SDI out*1, BNC IN*1, BNC out*1+DVI+HDMI
Audio Inputs/Outputs  *1/N/A
Flipped function Optional Vertically and Horizontally
Touch NO
Installation VESA mount
Power Requirement DC 12V
Dimension (W*H*D) 33.2 *27.0 *5.5 cm
NET Weight 2.94 kg
Gift box size 41*10.1*36.7 cm
Control OSD Control
Certificates CE/FCC/ROHS/CCC
Accessories: VESA wall mount kit*1, VGA cable*1, BNC cable*2 and 4 pins XLR power adapter*1.






















Accessories:

VESA wall mount kit*1, VGA cable*1, BNC cable*2 and 4 pins XLR power adapter*1.
