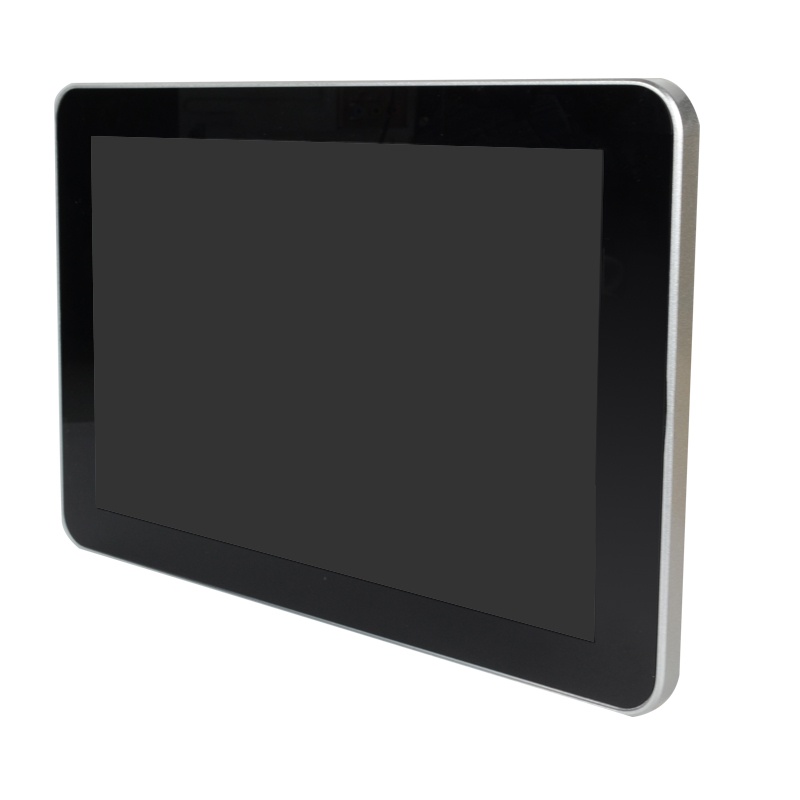

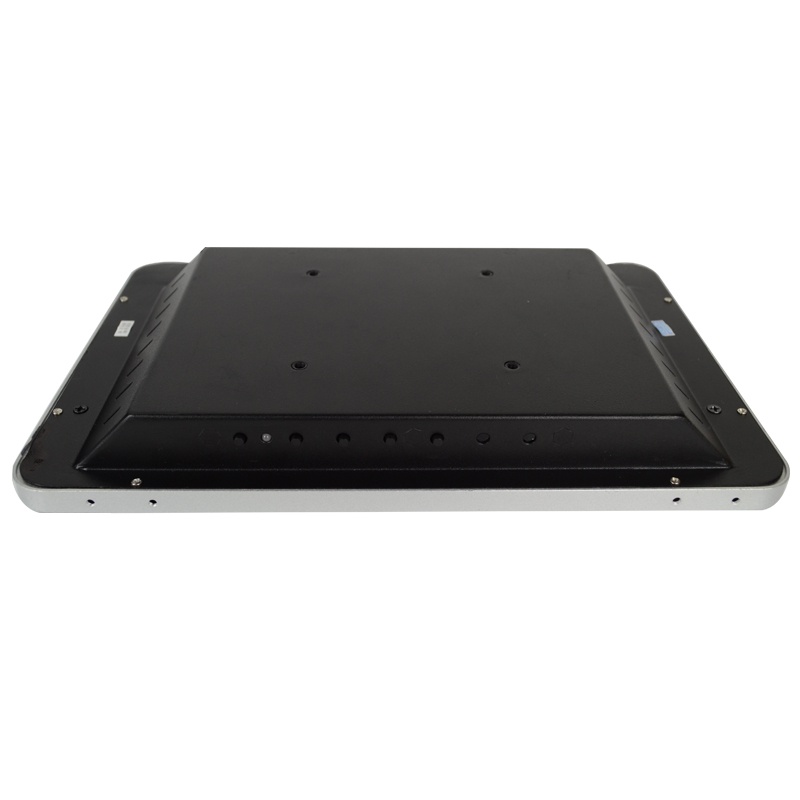

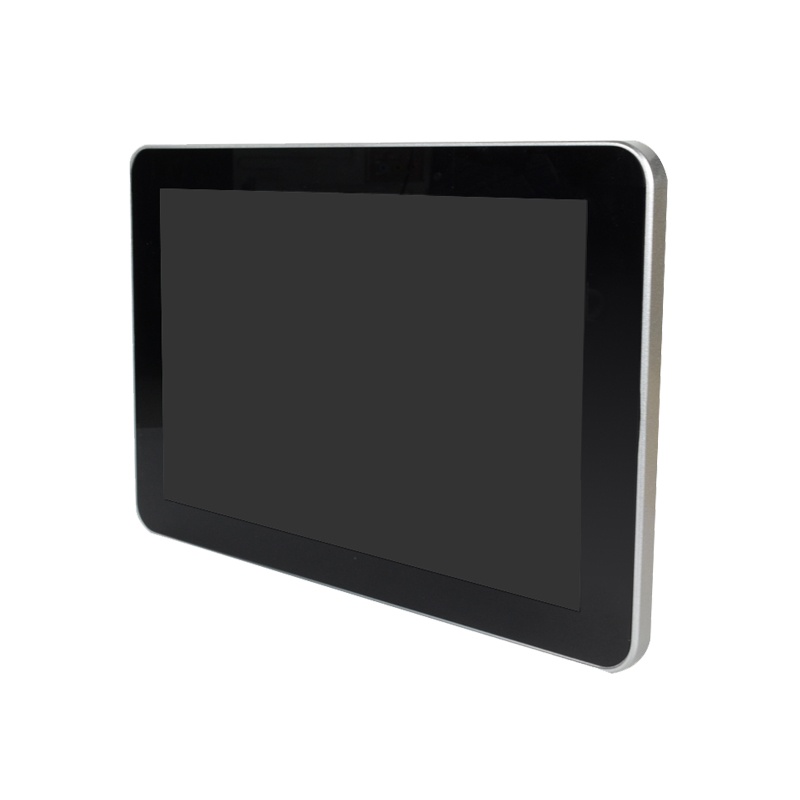

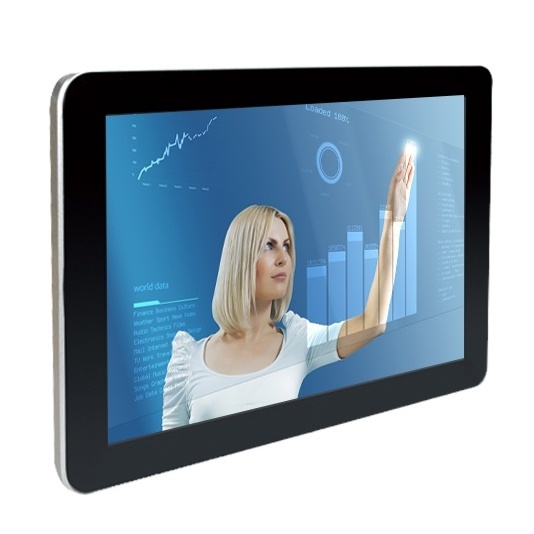

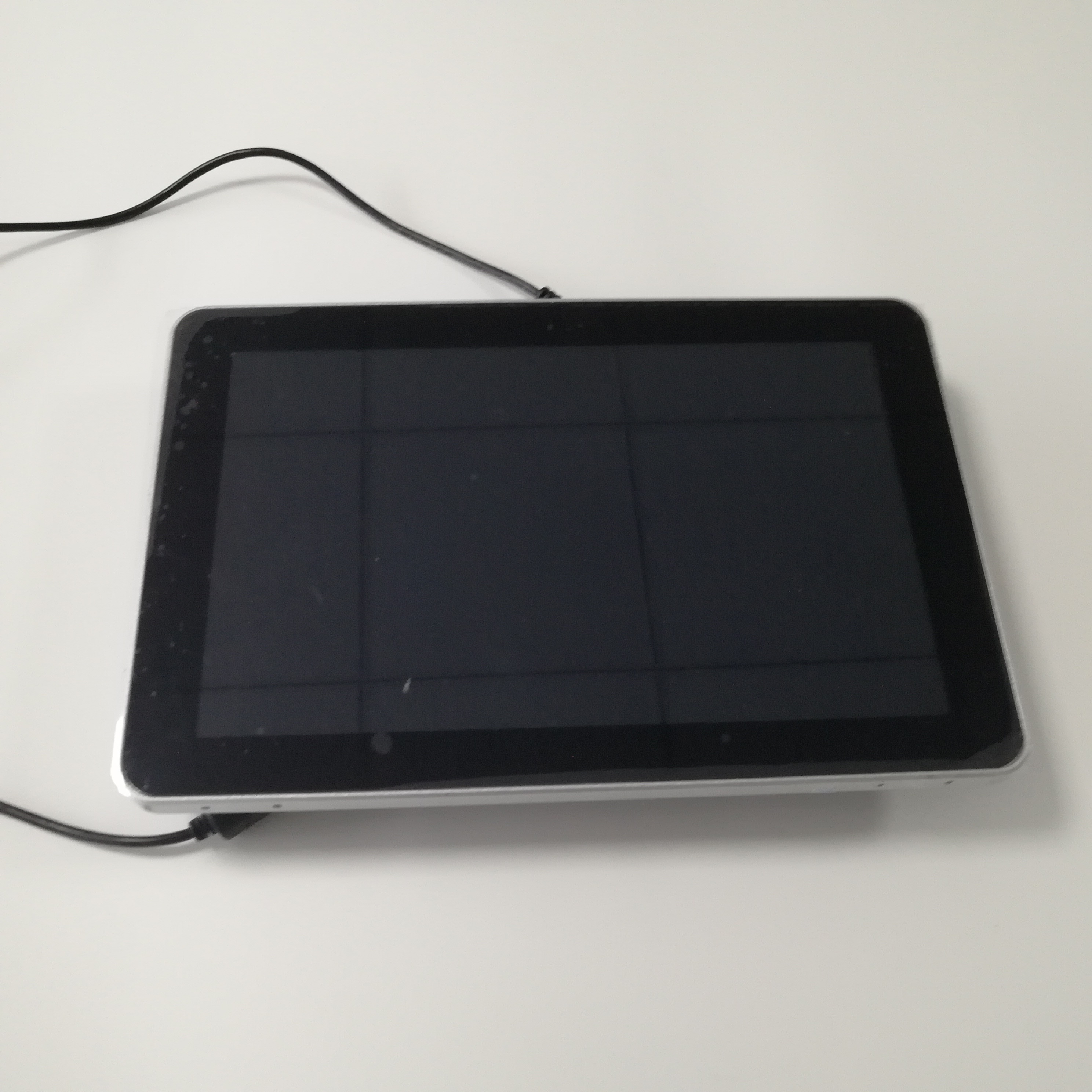

H101-RT 1280*800 10.1 inch IPS capacitive touch monitor with HDMI function

H101-RT 1280*800 10.1 inch IPS capacitive touch monitor with HDMI function

1280*800 10.1 inch IPS panel Industrial EETI capacitive touch monitor; G+G structure; True-flat screen; VESA mount or open frame; VGA+AV+BNC+HDMI+TOUCH
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories
  • 10.1 inch IPS panel capacitive touch monitor;
    1280*800;
    Industrial EETI touch;
    G+G structure;
    True-flat screen;
  • Full viewing angle 178/178

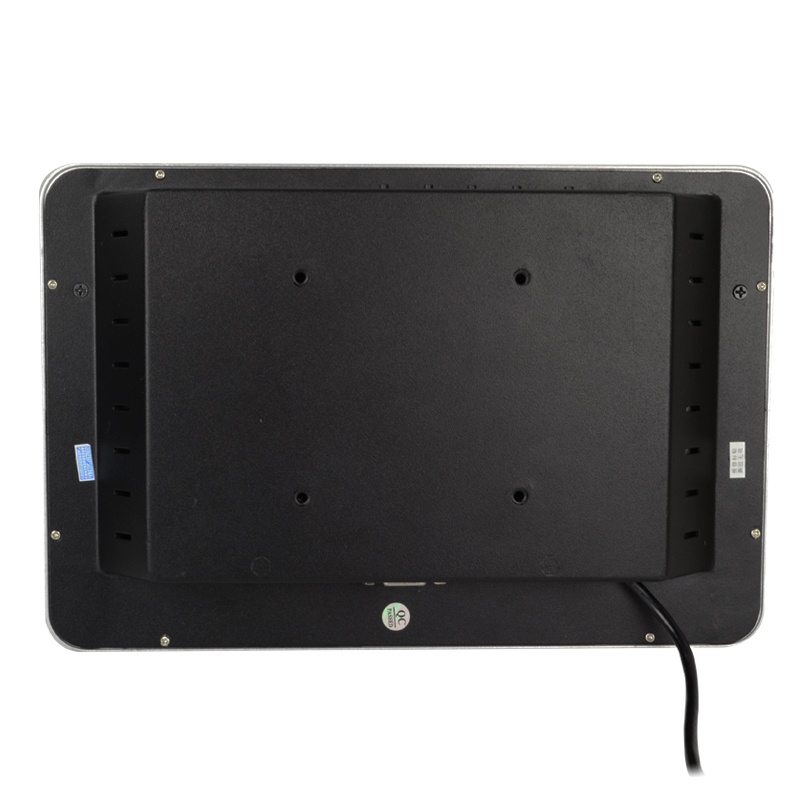

    VESA mount or open frame;

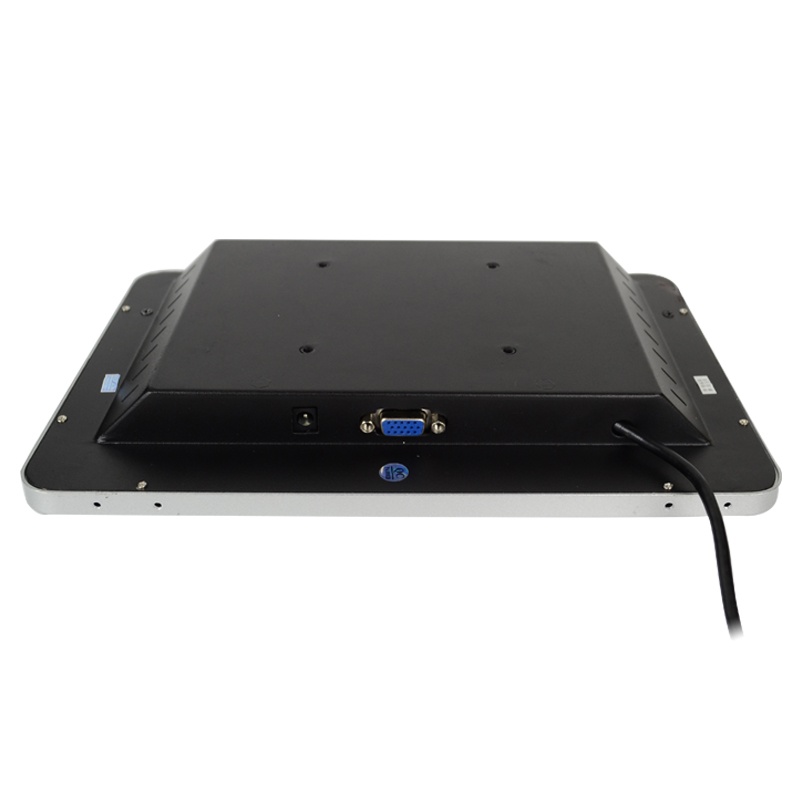

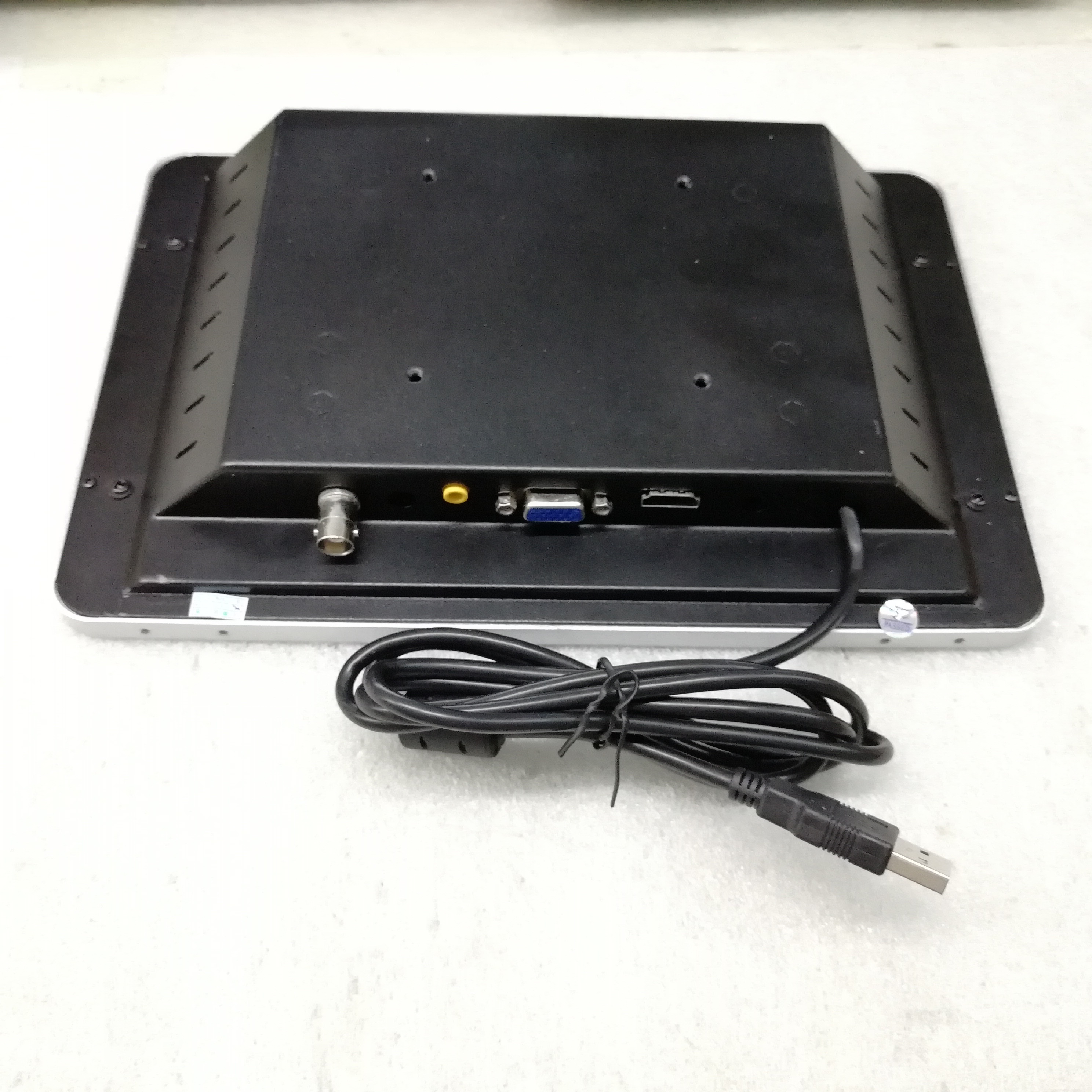

    VGA+AV+BNC+HDMI+USB for TOUCH
  • Model: H101-RT
  • Display: 10.1” TFT High Definition capacitive touch monitor (16:10)
  • Resolution: 1280*800 pixels
  • Luminance: 350 nits
  • Contrast ratio: 500:1
  • Power supply: 12V DC with 110V-240V AC power adapter
  • Response time: 6 ms
  • Viewing angle: 178°/178° full viewing angle

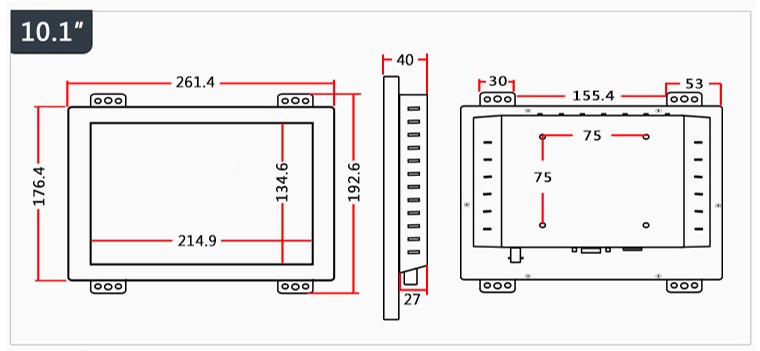

  • Product size: 26.2*17.5*3.8 cm
  • Shell material: Aluminium bezel with metal housing
  • Net weight: 1.27 KGS
  • Carton box size: 40*38*67 CM
  • Carton box gross weight: 19.43 KGS
  • 10 PCS/CTN



  • Touch panel: G+G
  • Surface hardness: 7H
  • Transparency: >90%±5%
  • Operating temperature: 0 to 50°C/20%-80%(non-condensing)
  • Humidity temperature: 0-85% at 40°C (non-condensing)
  • Storage temperature: -20 to 60°C/5-95%(non-condensing)
  • Storage humidity: 5%~95%
  • Connection Type: USB
  • Response time: <10 ms
  • Operation voltage: 3.3 V-3.6 V DC
  • Max supported points : 10

System supported: Windows XP/7/8 Android, Linux














Accessories: VGA cable, power adapter, manual and VESA wall mount kit.
