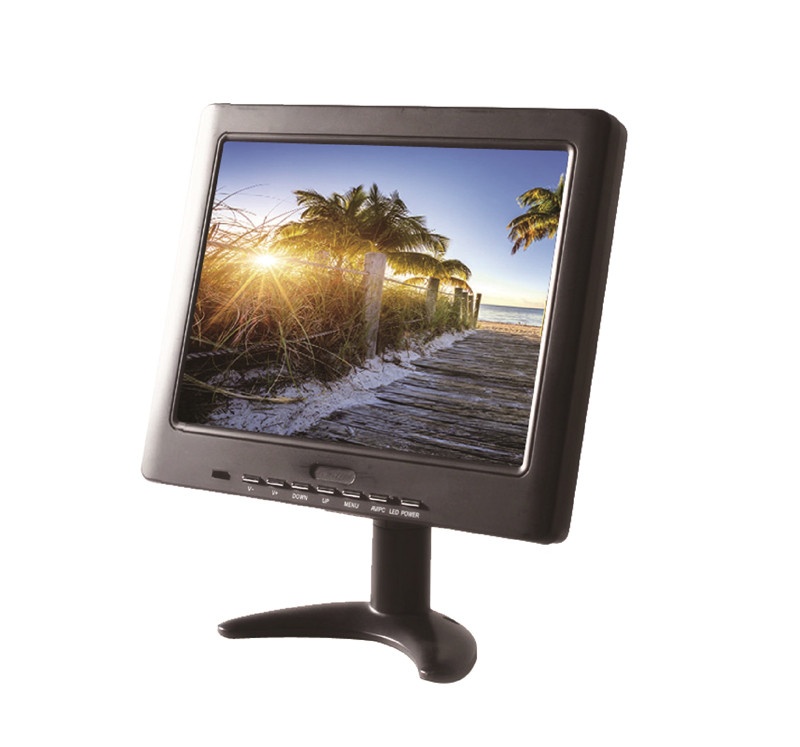

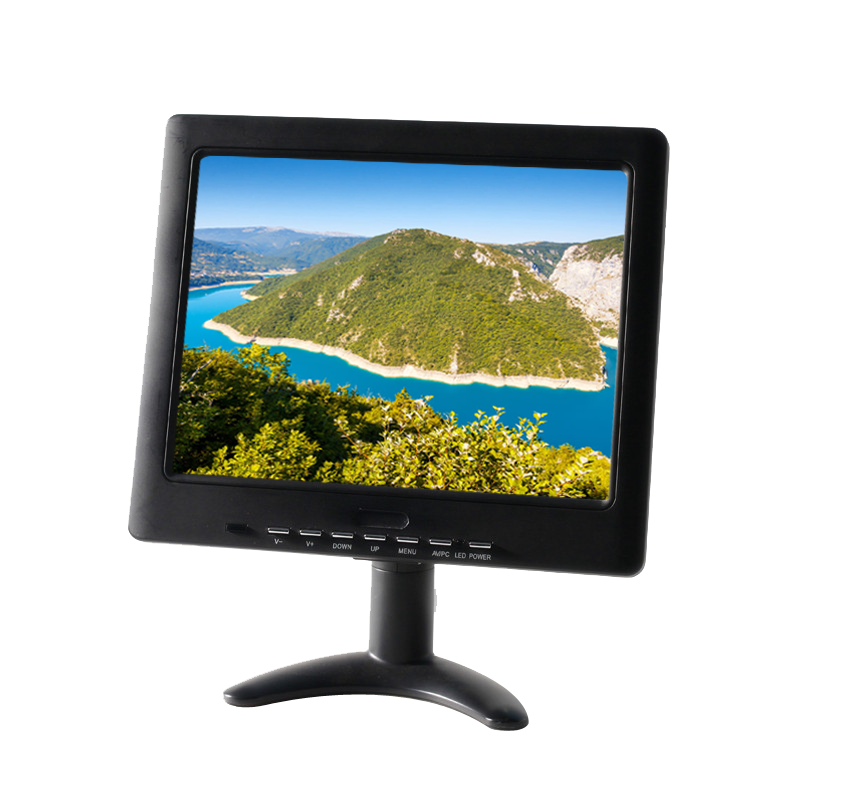

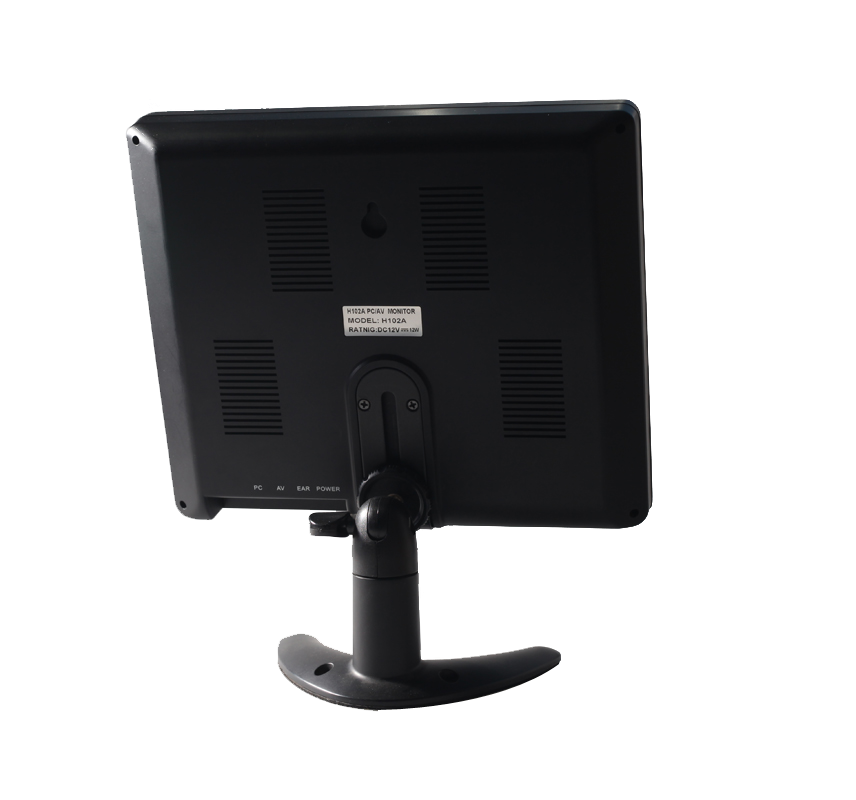

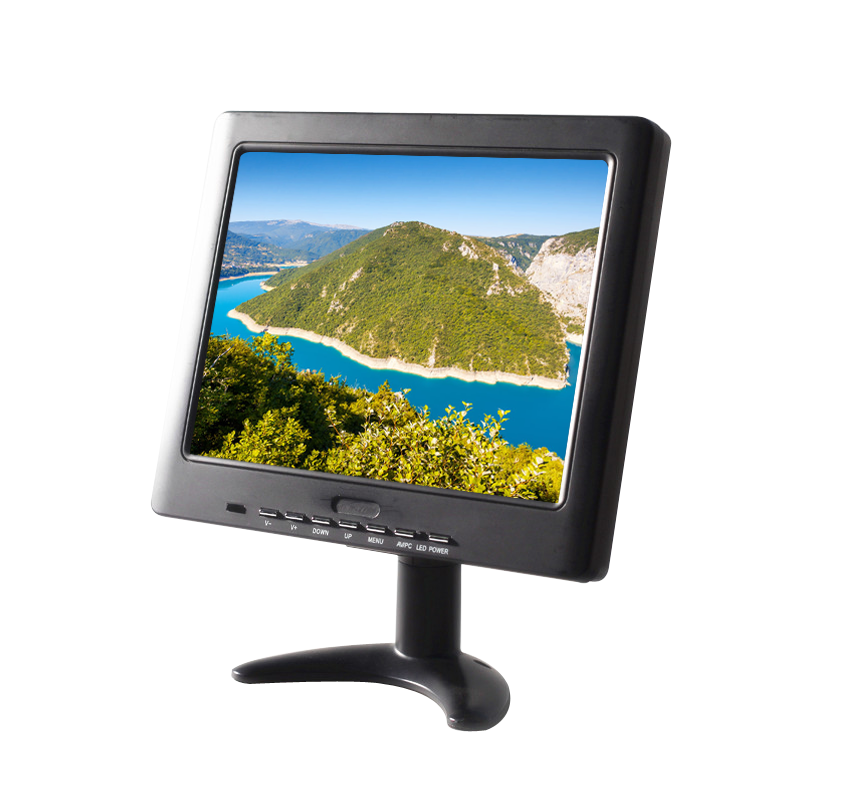

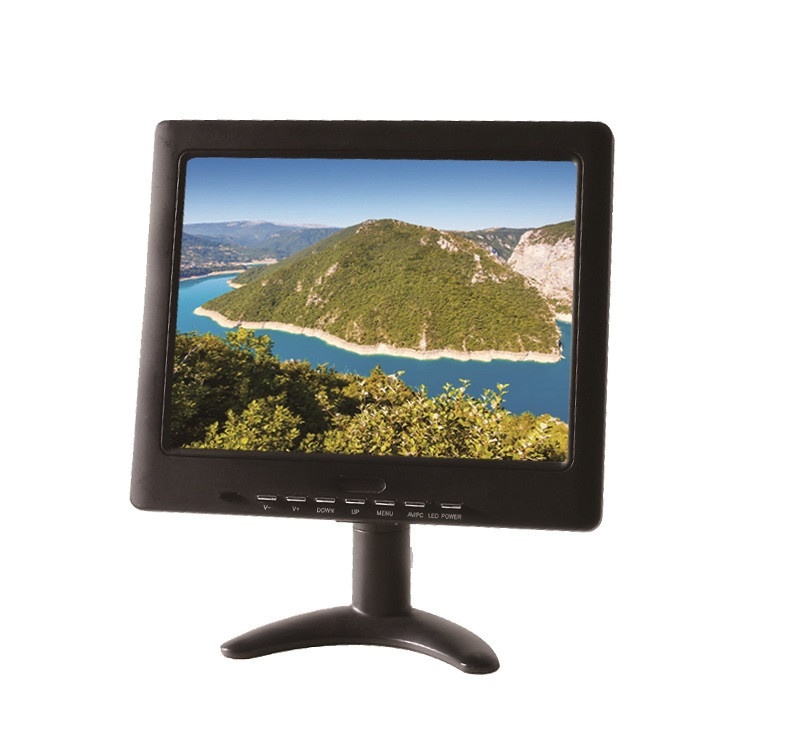

H102A 10 inch plastic LCD monitor for security and industry

H102A 10 inch plastic LCD monitor for security and industry

10" plastic TFT LCD Display, 800*600; grade A level screen, both for security camera and industrial usage.
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

10" plastic TFT LCD Display;

Resolution: 800*600 pixel;

Brightness: 300 nits

Contrast ratio: 250:1;

Viewing angles: 140°/120°

Screen brand: SANYO

Optional Mirror function: UP and DOWN

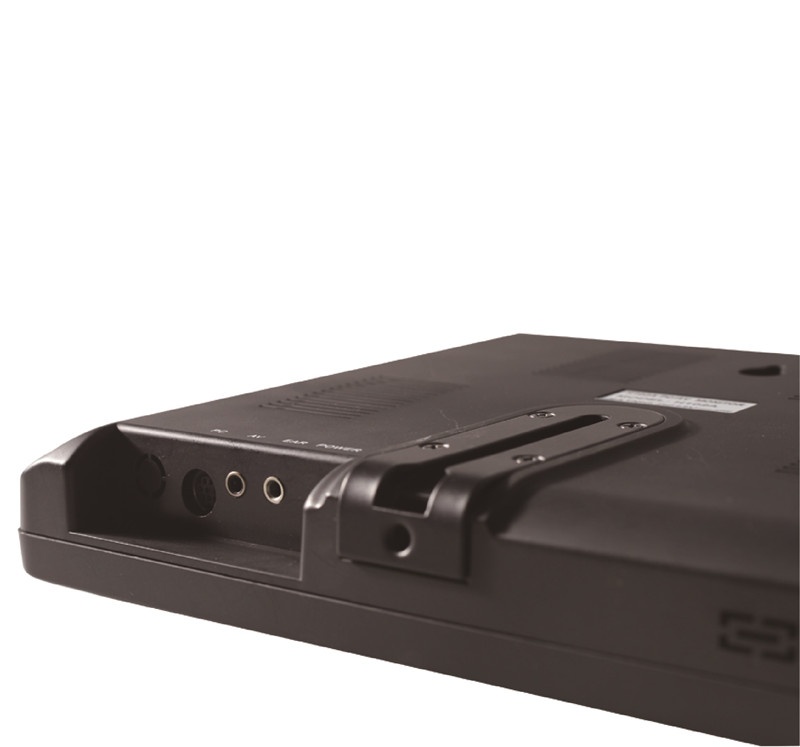

Interface: VGA/AV input RCA output

Optional: BNC/HDMI/TV

Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean

Certification: FCC, CE, ROHS, CCC

Display Parameters

Aspect Ratio


Contrast Ratio 250:1 Panel Type LCD
Display Area 202.8×152.1mm Brightness 300 nits Backlight CCFL
Resolution 800×600 Viewing Angle 140°/120°

Screen Color


Response Time 50ms


Installation Stand  Frame color Black Product Dimensions 254×210×37(mm)
Power input/output 110V to 240V input, 12V output Operating temperature 0~65℃ Humidity temperature 0~90%@40℃ ( non-condensing )
Storage temperature -10~70℃ Box Packing Dimensions




  • Product dimensions: 25.4 x 21 x 3.7cm
  • Gift box: 34.8×25.9×7.5cm
  • Net weight: 1.80kg
  • Carton size: 40*36*58.5cm
  • Carton qty: 10pcs
  • Features: With VGA and AV; BNC and HDMI input optional
  • Built-in loudspeaker optional, headphone jack makes convenient for external headphones or Soundbox
  • Accessories: Manual, Stand, AV cable, VGA cable, remote controller and power adapter
  • Mainly used in industrial endoscope, video microscope, industry Smooth degree of coplanar detector, dimensional detector, hot-press BGA rework station, Laser engraving equipment, Laser marking machine, The rocker camera security, video surveillance, POS cash register system and other similar areas.

Accessories: Specification, Warranty card, stand, AV cable, Remote controller, Power adapter
