H192-RT 1440*900 19 inch widescreen monitor with capacitve touch panel

H192-RT 1440*900 19 inch widescreen monitor with capacitve touch panel

1440*900 19 inch widescreen monitor with capacitve touch panel
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

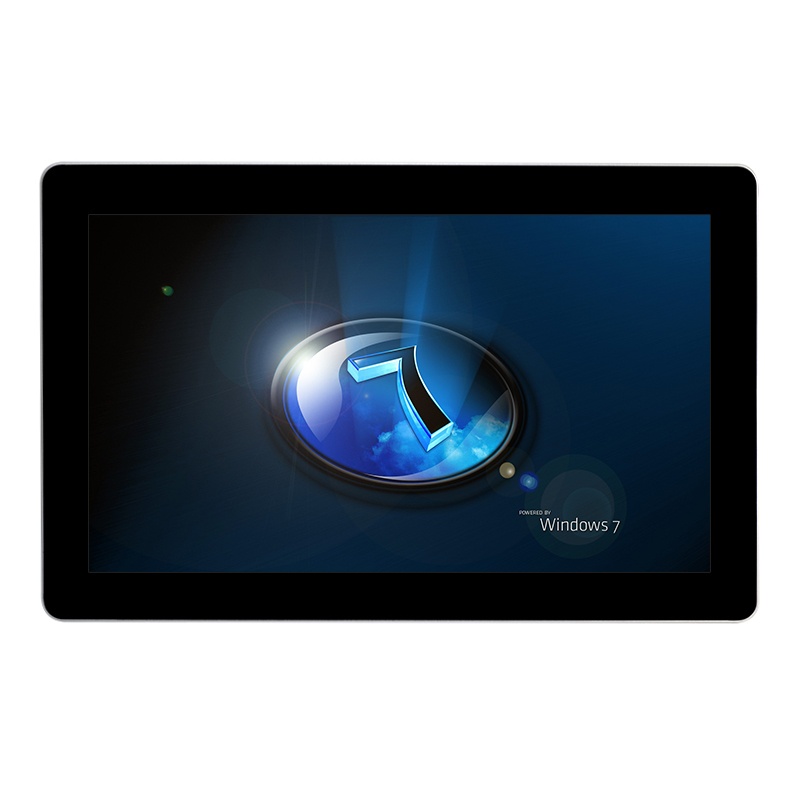

19 inch widescreen industrial capacitive touch monitor

EETI touch control

1440*900

G+G structure

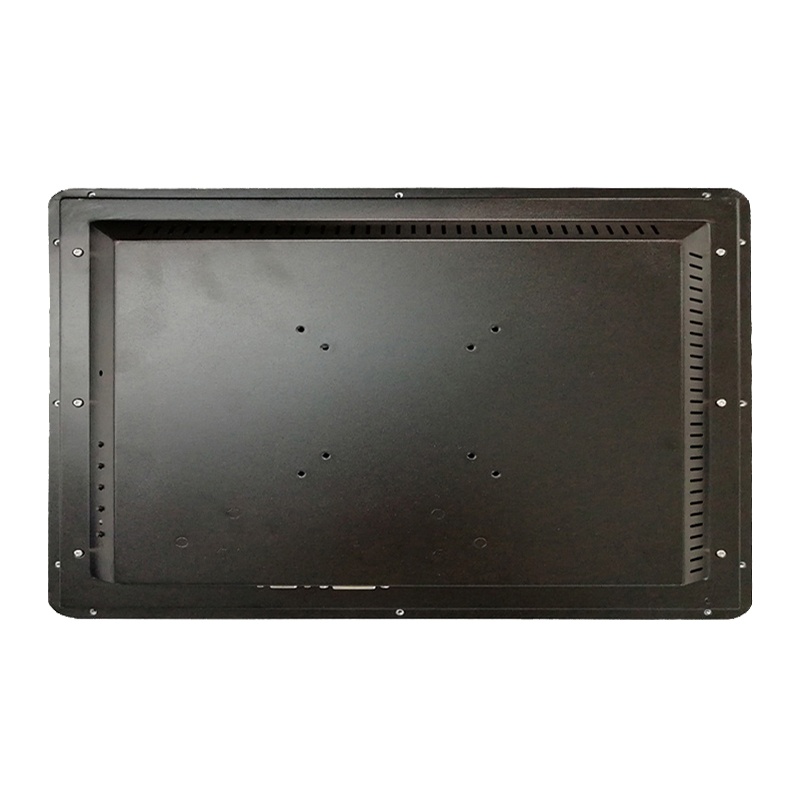

VESA mount, open frame or with folded stand

VGA+DVI+HDMI+USB Touch

  • Model: H192-RT
  • Display: 19” TFT High Definition capacitive touch monitor (16:10)
  • Resolution: 1440*900 pixels
  • Luminance: 250 nits
  • Contrast ratio: 1000:1
  • Input voltages: 110 to 240V AC
  • Output voltage: 12V DC
  • Response time: 6ms
  • Viewing angle: 170°/160°
  • Shell material: Aluminium bezel with metal case
  • Signal input: VGA+DVI+HDMI+USB touch

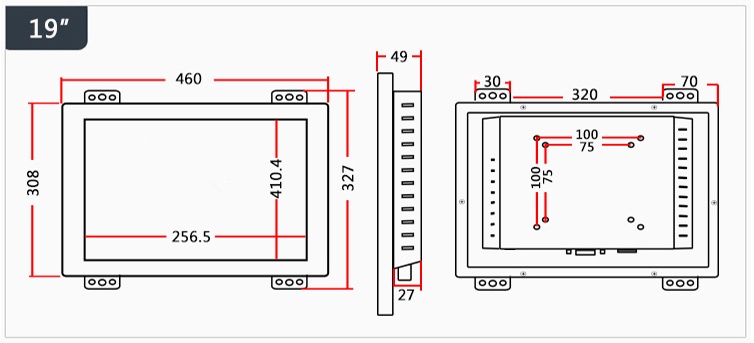

  • Product size: 46.0*32.7*4.3 CM



  • Touch panel: G+G
  • Surface hardness: 7H
  • Transparency: >90%±5%
  • Operating temperature: 0 to 50°C/20%-80%(non-condensing)
  • Humidity temperature: 0-85% at 40°C (non-condensing)
  • Storage temperature: -20 to 60°C/5-95%(non-condensing)
  • Storage humidity: 5%~95%
  • Connection Type: USB
  • Response time: <10 ms
  • Operation voltage: 3.3 V-3.6 V DC
  • Max supported points : 10
  • System supported: Windows XP/7/8/10, Android, Linux

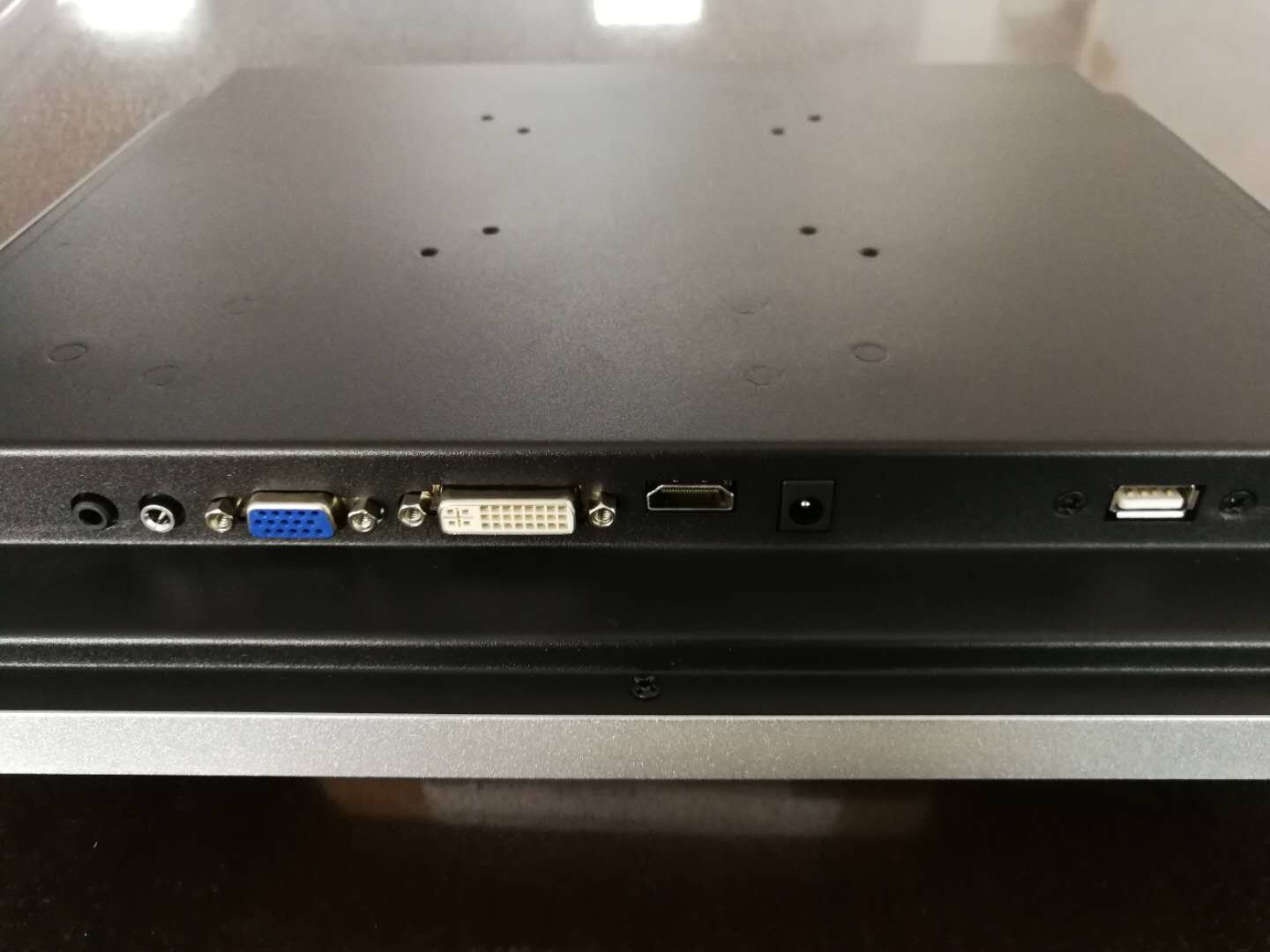

vga dvi hdmi input

Accessories:


VESA wall mount, warranty card,VGA cable, USB cable, manual and power adapter.
