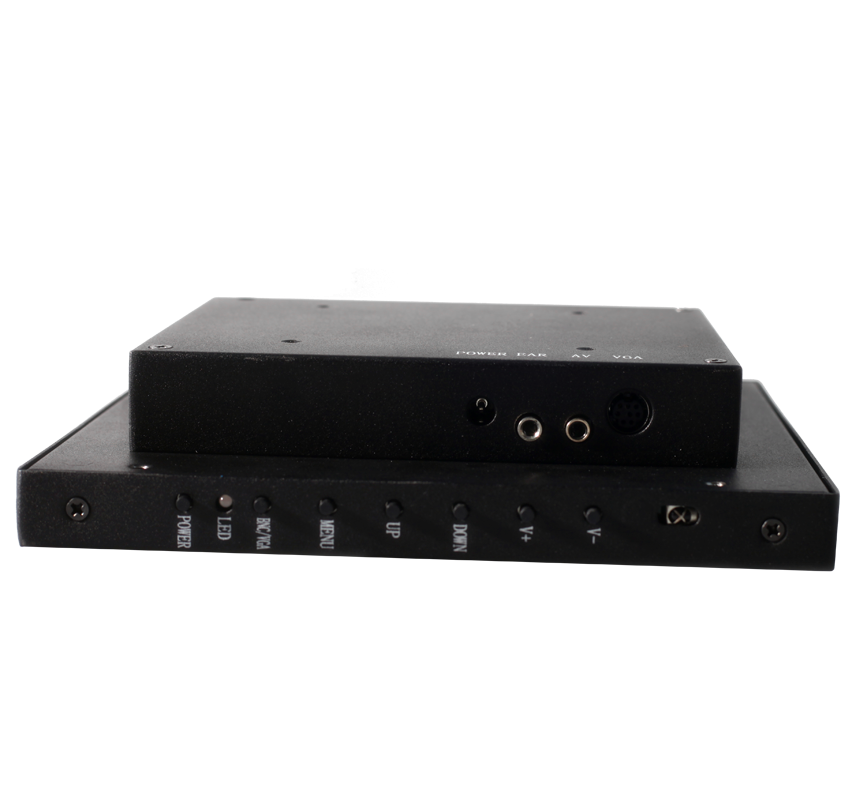

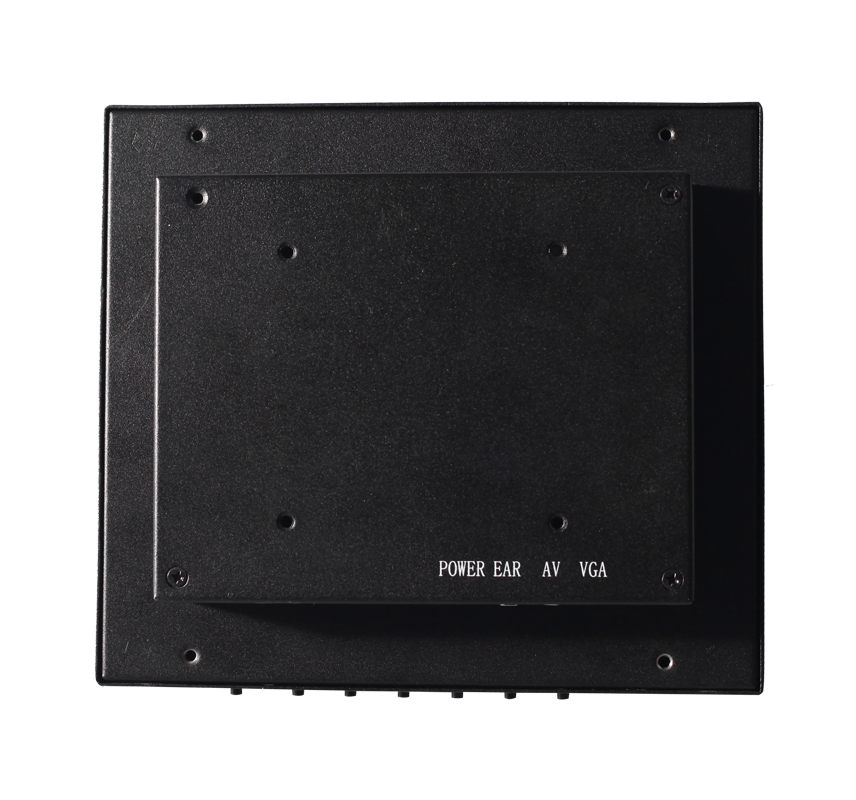

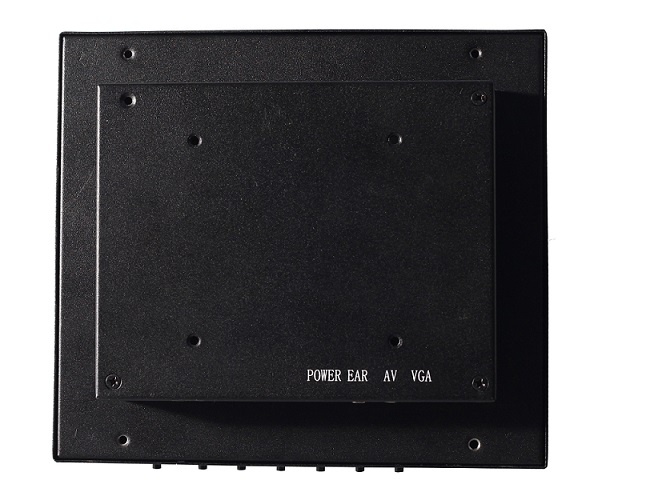

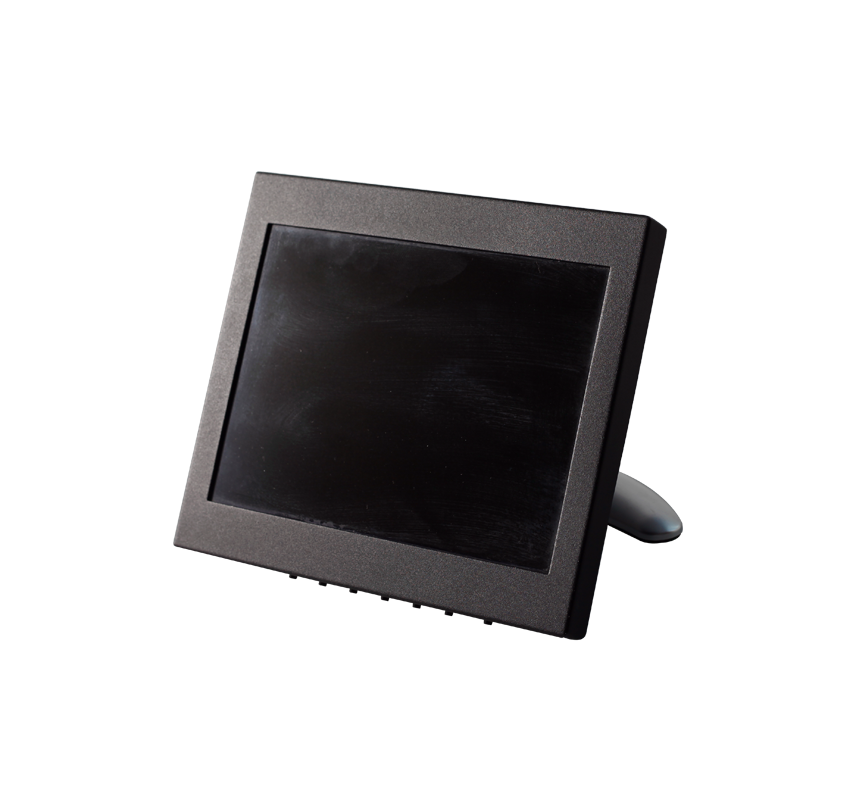

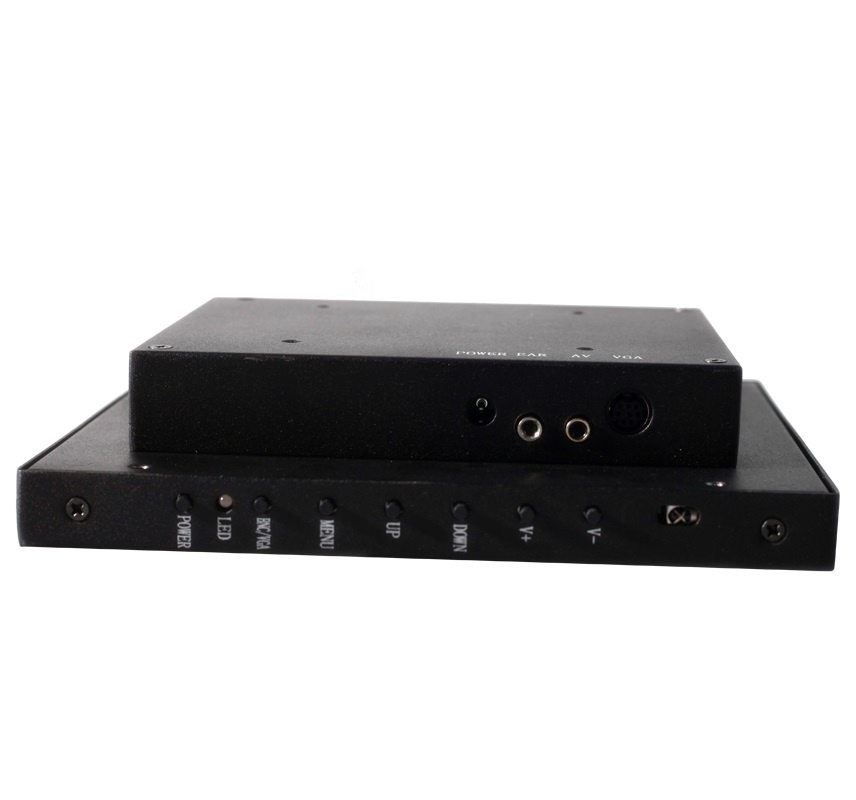

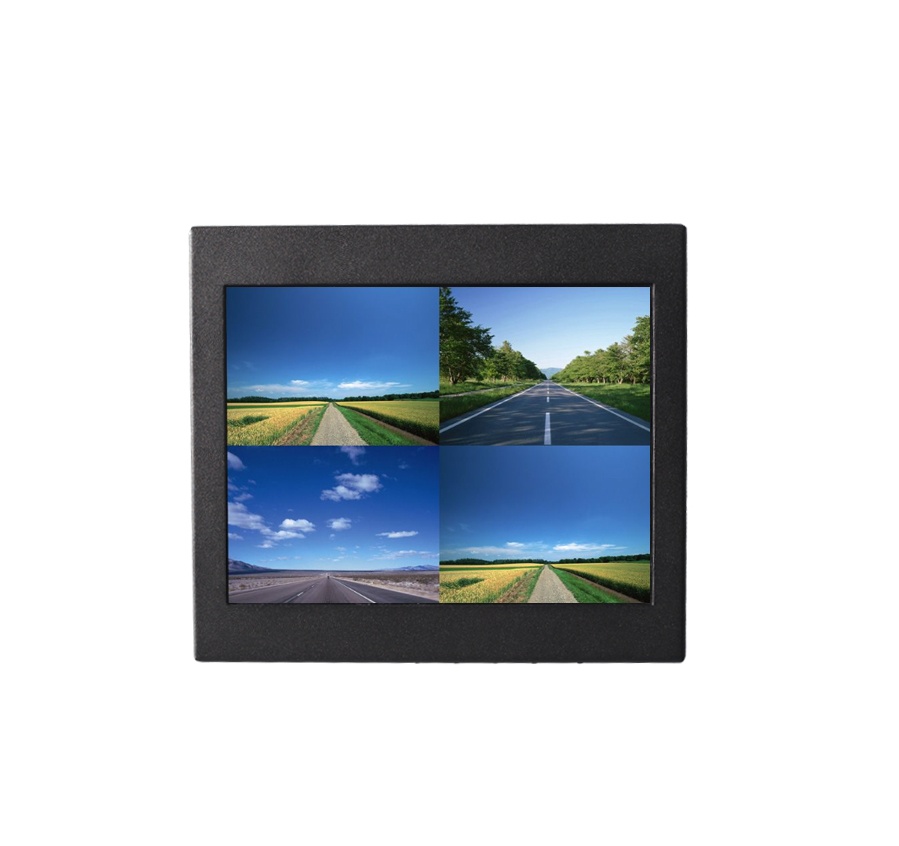

H8002 8 inch Rugged Metal LCD monitor

H8002 8 inch Rugged Metal LCD monitor

8" metal TFT Digital LCD Display 4:3 display ratio with standard VGA and AV ports can be used for CCTV security cameras and industrial machines.
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

8 inch 800*600

Rugged metal case

Interface: VGA+AV

Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean

Certification: FCC, CE, ROHS,CCC

Display Parameters

Aspect Ratio 4:3 Contrast Ratio 250:1 Response Time 50ms
Display Area 163.2×122.4 mm Brightness 200 cd/㎡ Backlight CCFL
Resolution 800*600 Viewing Angle 120°/130°

Screen Color 262K Panel Type LCD


Installation Custom Stand  Frame color Black Product Dimensions 206*161*37 mm
Power input/output 110V to 240V input, 12V output Operating temperature 0~50℃ Humidity temperature 0~85%@40℃ ( non-condensing )
Storage temperature -20~60℃ Box Packing Dimensions 305*215*75 mm


 Warranty card, stand, AV cable, VGA cable, Remote controller, Power adapter.
