H121A-RT 800*600 12.1 inch capacitive touch monitor

H121A-RT 800*600 12.1 inch capacitive touch monitor

800*600 12.1 inch capacitive touch monitor with industrial EETI touch and G+G structure
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

12.1 inch pcap touch monitor;

800*600; optional for 1024*768;

G+G touch;

Industrial EETI touch control;

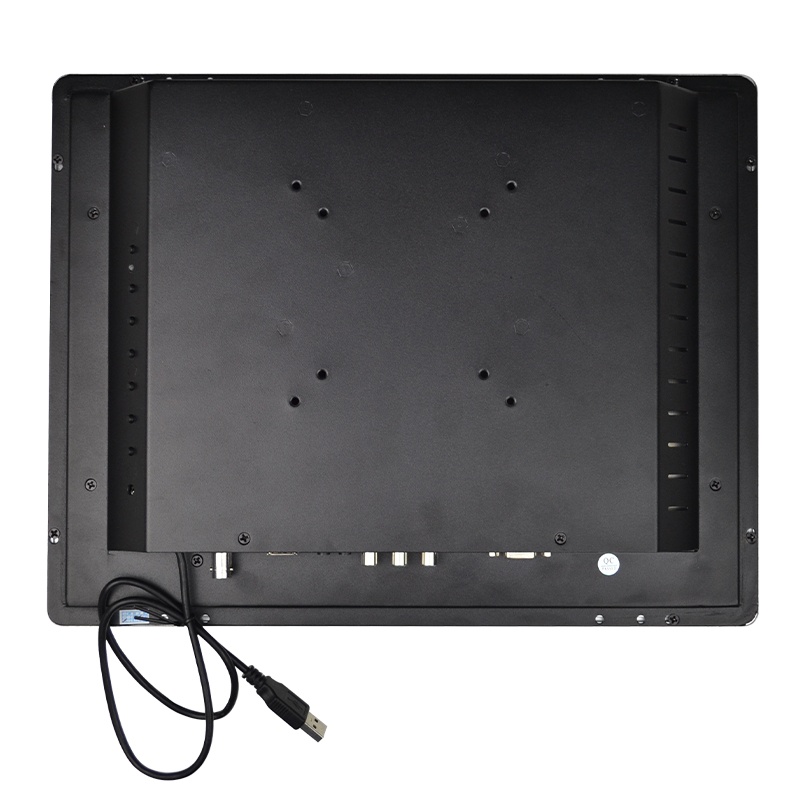

VESA wall mount, open frame or with folded stand;

VGA+AV+BNC+HDMI+USB+Touch;

  • Model: H121A-RT
  • Display: 12.1” TFT High Definition capacitive touch monitor (4:3)
  • Resolution:  800*600pixels
  • Luminance: 250 nits
  • Contrast ratio: 300:1
  • Power supply: 12V DC
  • Response time: 6 ms
  • Viewing angle: 140°/110°
  • Touch control: Industrial EETI or consumer ILITEK touch
  • Product size: 29.4*22.5*4.9cm
  • Shell material: Aluminium bezel with metal housing

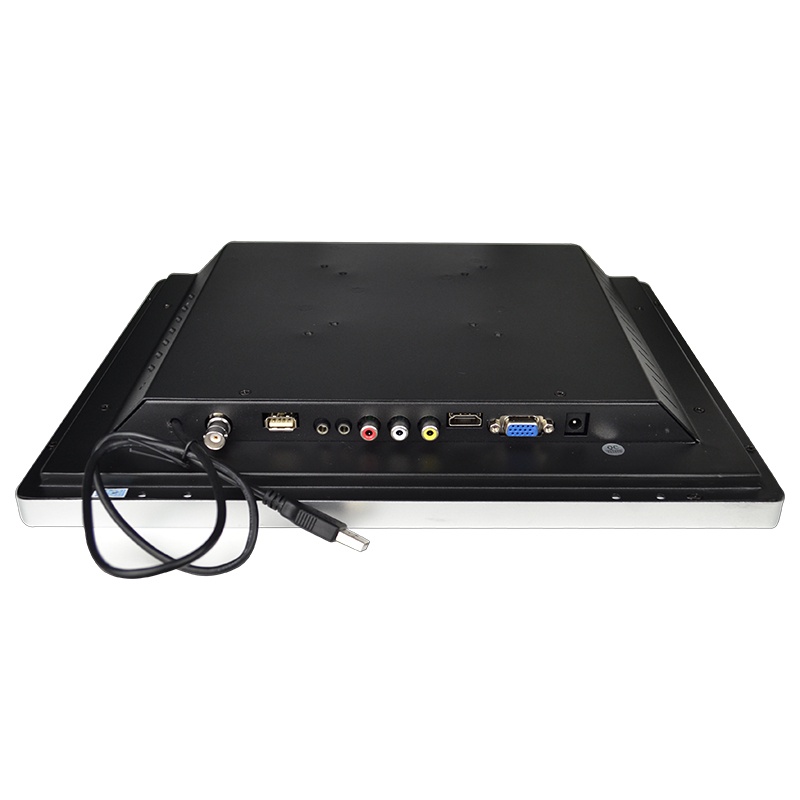

  • Interface: VGA+AV+BNC+HDMI+USB(Media player)+USB for Touch



  • Touch panel: G+G
  • Surface hardness: 7H
  • Transparency: >90%±5%
  • Operating temperature: 0 to 50°C/20%-80%(non-condensing)
  • Humidity temperature: 0-85% at 40°C (non-condensing)
  • Storage temperature: -20 to 60°C/5-95%(non-condensing)
  • Storage humidity: 5%~95%
  • Connection Type: USB
  • Response time: <10 ms
  • Operation voltage: 3.3 V-3.6 V DC
  • Max supported points : 10
  • System supported: Windows XP/7/8/10, Android, Linux









Accessories:

VGA cable, power adapter manual and warranty card.
