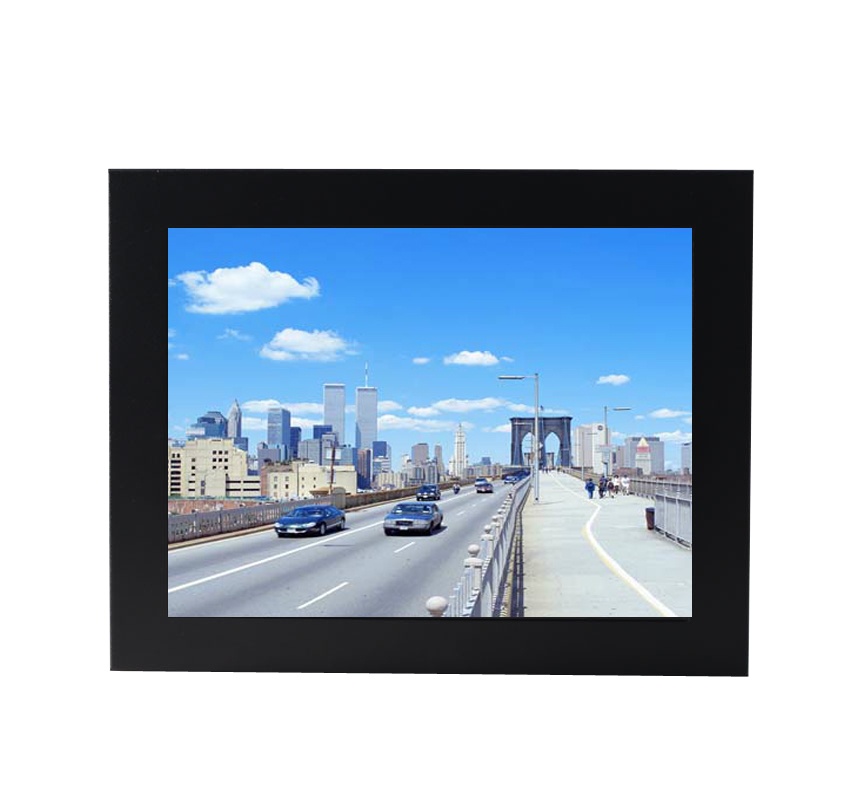

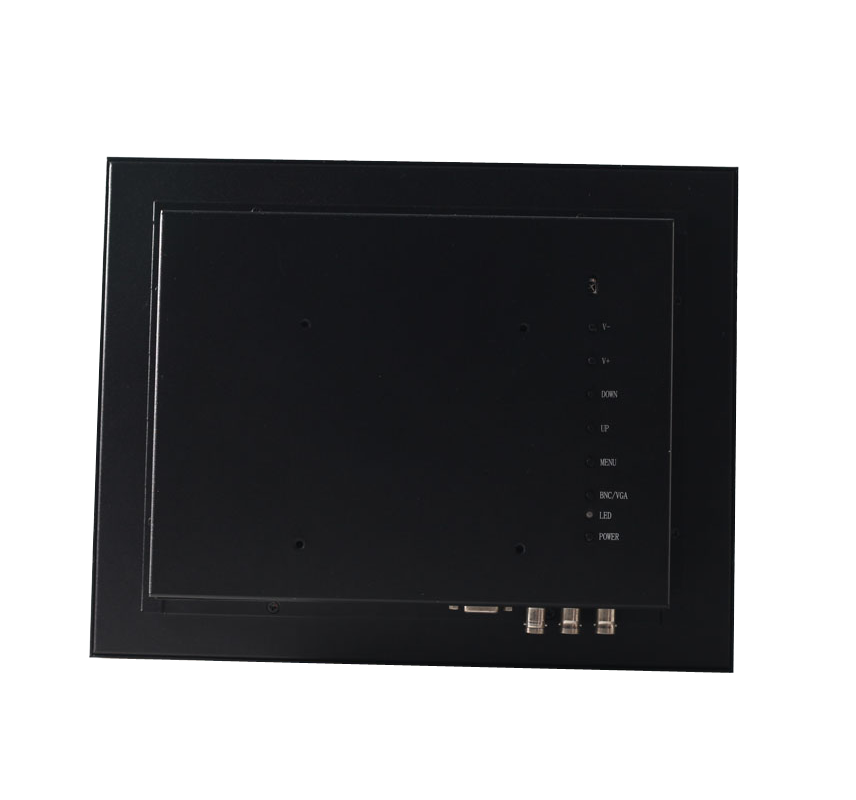

H121J 12.1 inch metal case LCD monitor

H121J 12.1 inch metal case LCD monitor

12.1 inch 800*600 metal case non-touch industrial monitor with VGA 15 pins +BNC*3 or VGA 8 pins+AV
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

· 3D digital comb filter with 3D digital noise reduction

· HD Signal with Progressive scan

· Solid metal frame, Anti-static, Anti-magnetic field and Anti strong interference.

· VESA standard wall mount(Metal folded holder optional)

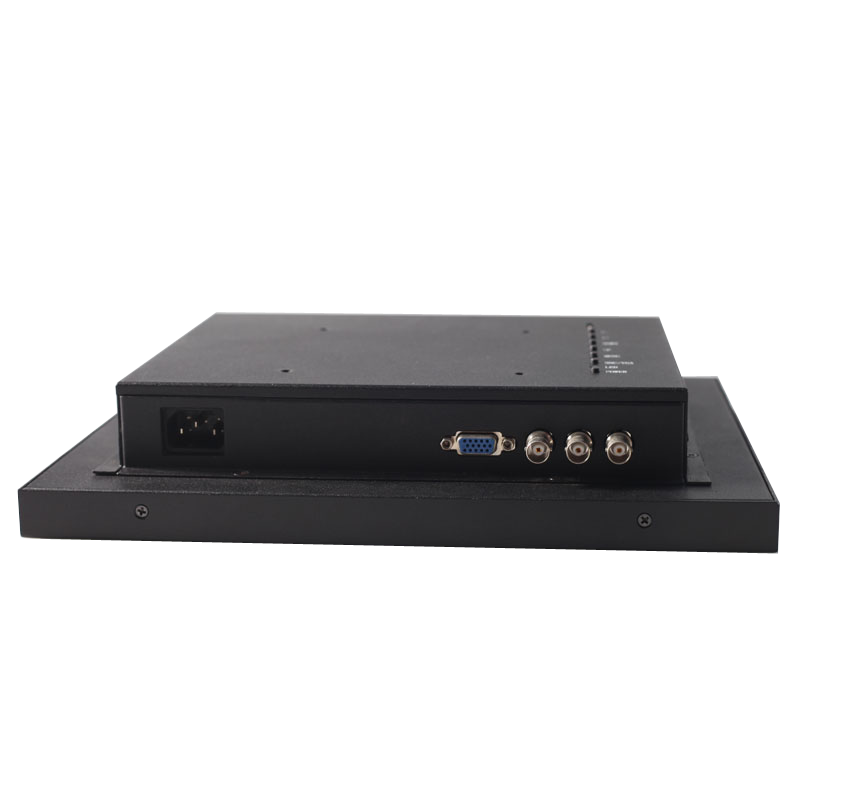

· VGA 15 PINS,BNC1,BNC2 inputBNC output;

· Certification: FCC, CE, RoHS Directive-compliant, CCC

· Mainly used in security monitoring, industry video monitoring or similar fields.

Display Parameters

Aspect Ratio 4:3 Contrast Ratio 450:1 Response Time 45ms
Display Area 246×184.5mm Brightness 330 NITS Backlight CCFL
Resolution 800×600 Viewing Angle 140°/110°

Screen Color 12M Panel Type LCD


Installation Wall Mount(Stand for Option)  Frame color Black Product Dimensions 309×254×49(mm)
Power input/output Input:110V~240V Output:12V Operating temperature -10~75℃ Humidity temperature 0~95%@40℃ ( non-condensing )
Storage temperature -35~75℃ Box Packing Dimensions 383×325×78(mm)
Accessories: Specification, Warranty card, stand, AV cable or BNC cable, VGA cable, Remote controller, Power adapter
