H156B-RT 1920*1080 15.6 inch widescreen high definition capacitive touch monitor

H156B-RT 1920*1080 15.6 inch widescreen high definition capacitive touch monitor

1920*1080 15.6 inch 1080p capacitive touch monitor
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

15.6 inch industrial capacitive touch monitor

16:9 widescreen

EETI touch control

1920*1080p


G+G

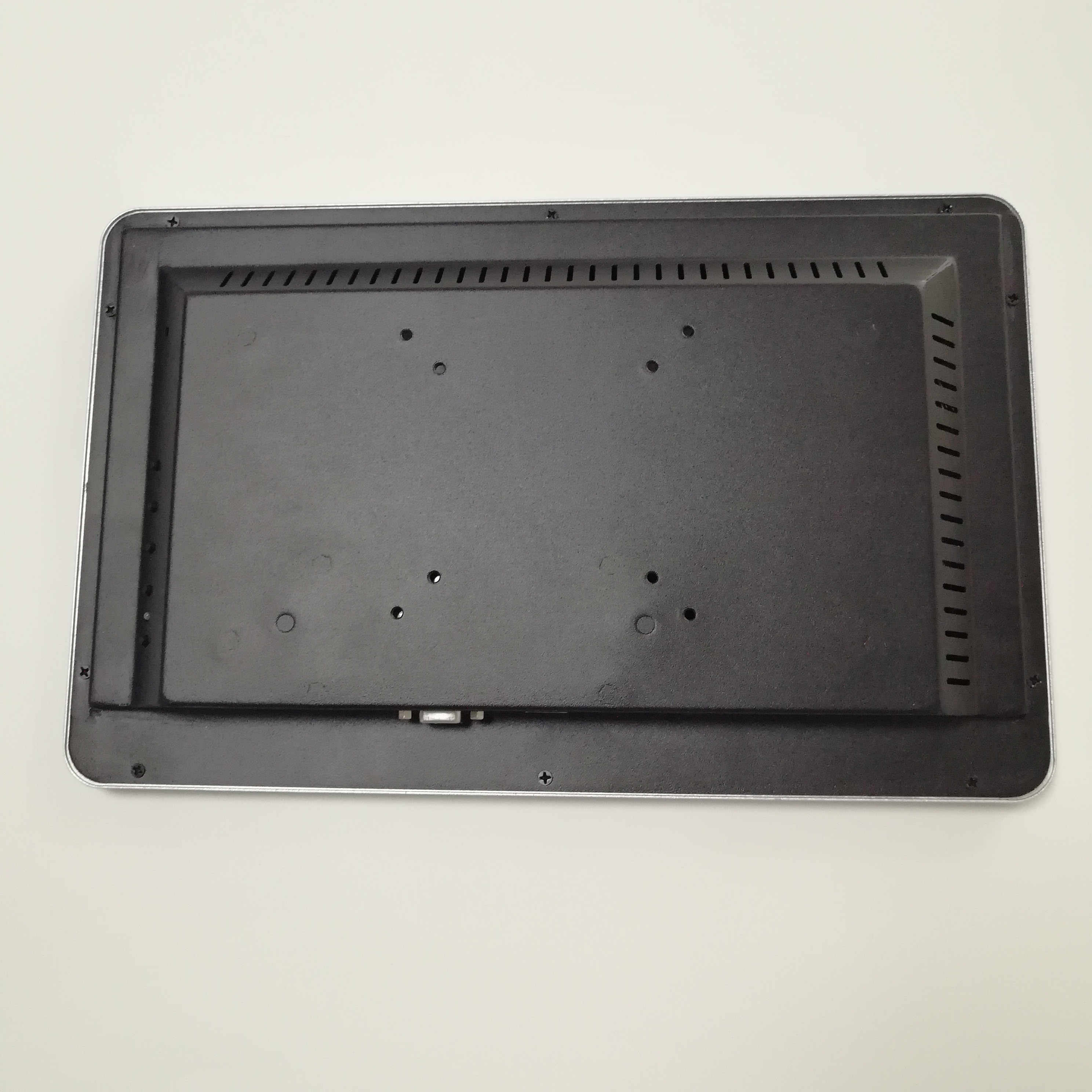

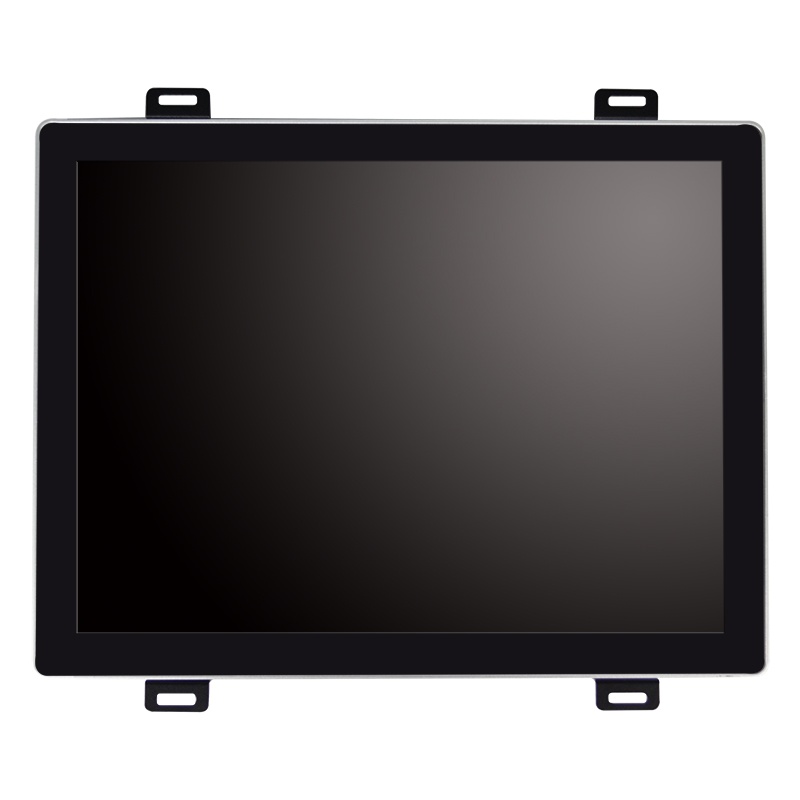

VESA mount, open frame or with folded stand

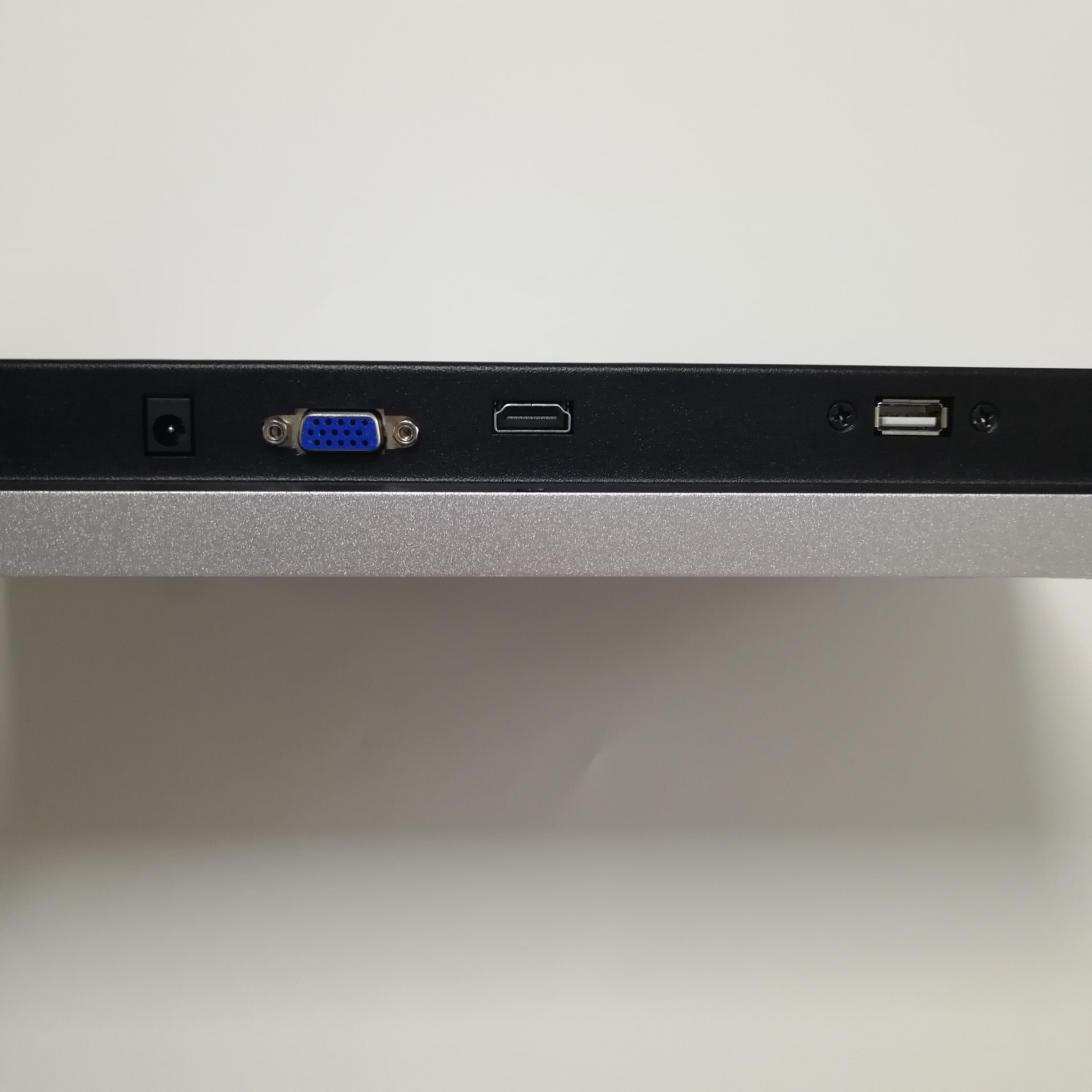

VGA+AV+BNC+HDMI+USB+Touch


  • Model: H156B-RT
  • Display: 15.6” TFT High Definition capacitive touch monitor (16:9)
  • Resolution:  1920*1080 pixels; optional for 1366*768
  • Luminance: 300 nits
  • Contrast ratio: 800:1
  • Aspect ratio: 16:9
  • Power supply: 12V DC
  • Response time: 6ms
  • Viewing angle: 150°/150°
  • Touch IC: industrial EETI or consumer ILITEK
  • Product size: 37.8*22.8*4.9 cm
  • Shell material: Aluminium bezel with metal housing
  • Interface: VGA+HDMI+USB Touch



  • Touch panel: G+G
  • Surface hardness: 7H
  • Transparency: >90%±5%
  • Operating temperature: 0 to 50°C/20%-80%(non-condensing)
  • Humidity temperature: 0-85% at 40°C (non-condensing)
  • Storage temperature: -20 to 60°C/5-95%(non-condensing)
  • Storage humidity: 5%~95%
  • Connection Type: USB
  • Response time: <10ms
  • Operation voltage: 3.3V-3.6V DC
  • Max supported points : 10
  • System supported: Windows XP/7/8/10, Android, Linux

HDMI touch monitor
pcap touch monitor

Accessories:


VESA wall mount, warranty card, VGA cable, USB cable and power adapter.
