H8007-RT 800*600 8 inch projected capacitive touch monitor

H8007-RT 800*600 8 inch projected capacitive touch monitor

8 inch PCAP touch monitor with resolution 800*600 pixels and industrial control
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

8 inch Projected capacitive touch monitor

Max touch 10 points;

Industrial EETI touch;

G+G structure;

True-flat screen;

VGA+AV+BNC+HDMI


  • Model: H8007-RT
  • Display: 8” TFT High Definition capacitive touch monitor (4:3)
  • Resolution: 800*600 pixels
  • Brightness: 250 nits
  • Contrast ratio: 300:1
  • Power supply: 12V DC with 110V-240V AC power adapter
  • Response time: 6 ms
  • Viewing angle: 140°/120°
  • Touch technology: industrial EETI touch
  • Shell material: Aluminium bezel with metal case
  • Screen: Tempered glass with aluminum alloy case

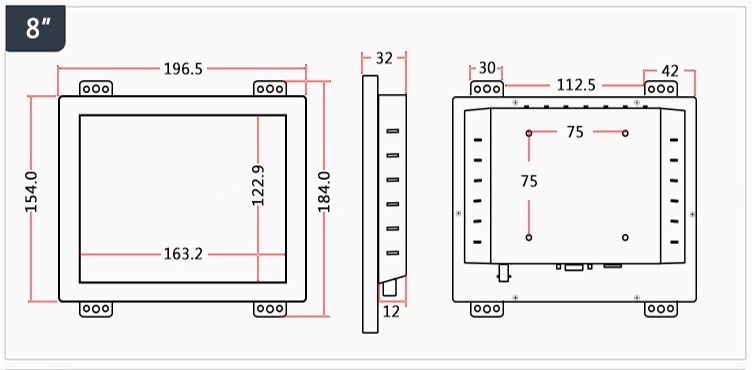

  • Product size: 20.6*16.6*3.9 cm
  • Net weight: 1.07 KGS
  • Carton box size: 49*32*34 cm
  • Gross weight: 14.3 kgs



  • Touch panel: G+G
  • Surface hardness: 7H
  • Transparency: >90%±5%
  • Operating temperature: 0 to 50°C/20%-80%(non-condensing)
  • Humidity temperature: 0-85% at 40°C (non-condensing)
  • Storage temperature: -20 to 60°C/5-95%(non-condensing)
  • Storage humidity: 5%~95%
  • Connection Type: USB
  • Response time: <10 ms
  • Operation voltage: 3.3 V-3.6 V DC
  • Max supported points : 10
  • System supported: Windows XP/7/8/10, Android, Linux











Accessories: VGA cable, power adapter, warranty card and manual.
