H240-RT 1920*1080 24 inch capacitve touch monitor with HD resolution

H240-RT 1920*1080 24 inch capacitve touch monitor with HD resolution

1920*1080 24 inch capacitve touch industry monitor with HD resolution
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

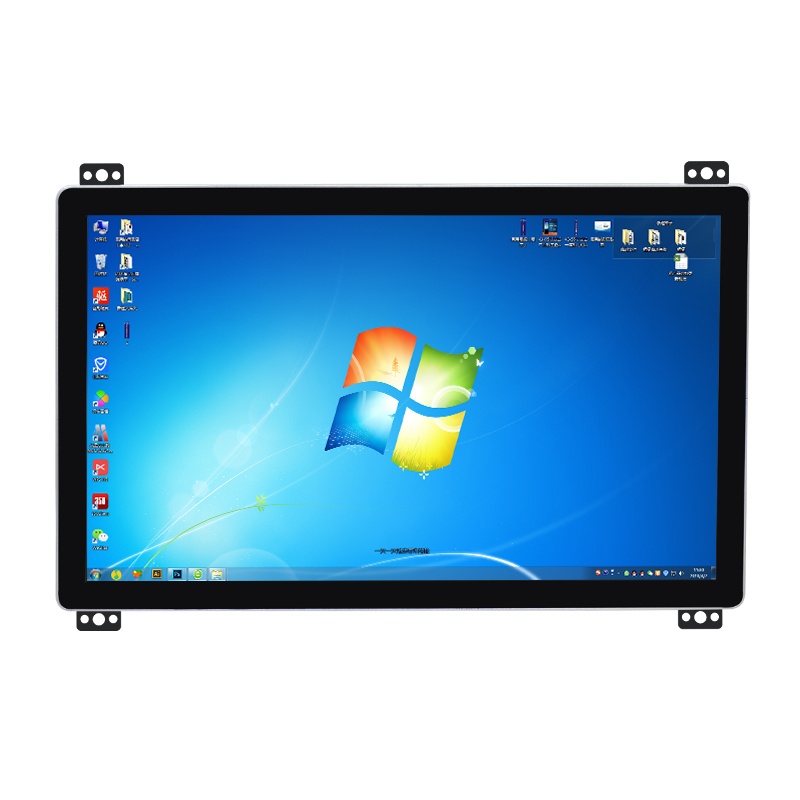

24 inch widescreen industrial capacitive touch monitor

EETI touch control

1920*1080p

G+G

VESA mount, open frame or with folded stand

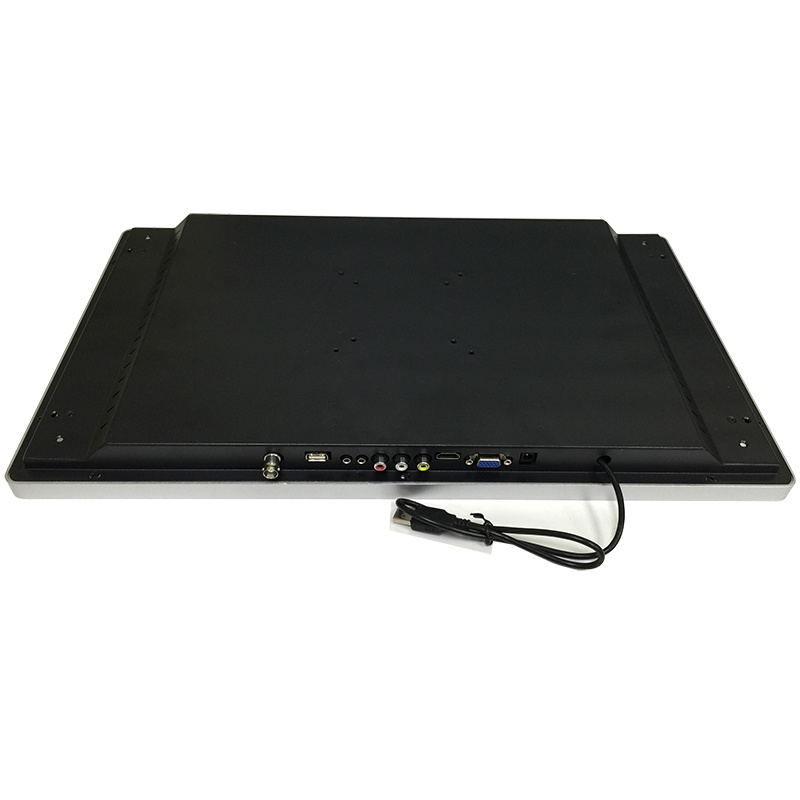

VGA+DVI+HDMI+USB Touch OR VGA+AV+BNC+HDMI+USB+USB for touch

  • Model: H240-RT
  • Display: 23.8” TFT High Definition capacitive touch monitor (16:9)
  • Resolution: 1920*1080 pixels
  • Luminance: 250 nits
  • Contrast ratio: 1000:1
  • Input voltages: 110 to 240V AC
  • Output voltage: 12V DC
  • Response time: 6ms
  • Viewing angle: 170°/160°
  • Touch control: industrial EETI or consumer ILITEK
  • Shell material: Aluminium bezel with metal case

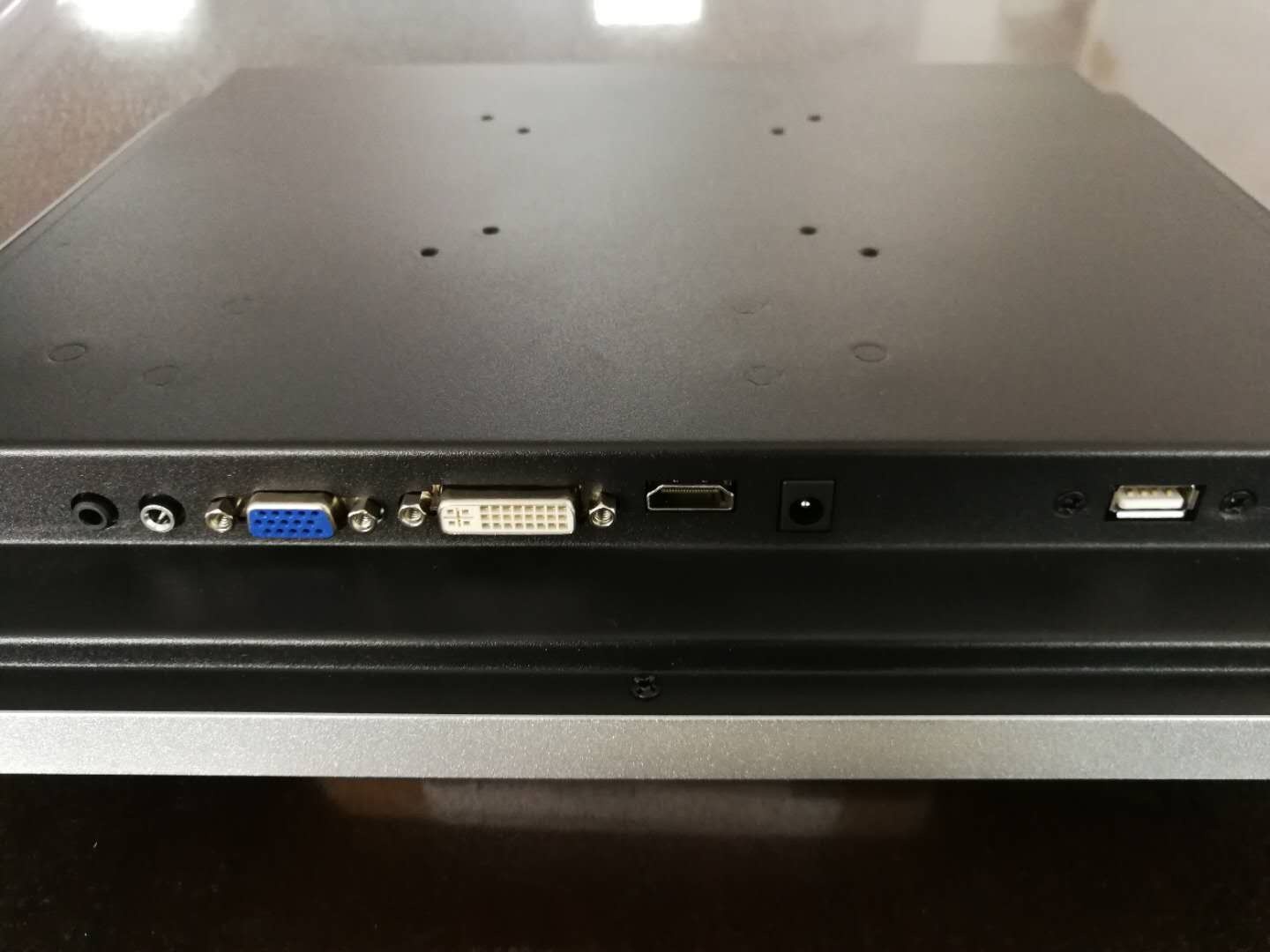

  • Interface: VGA+DVI+HDMI+USB Touch

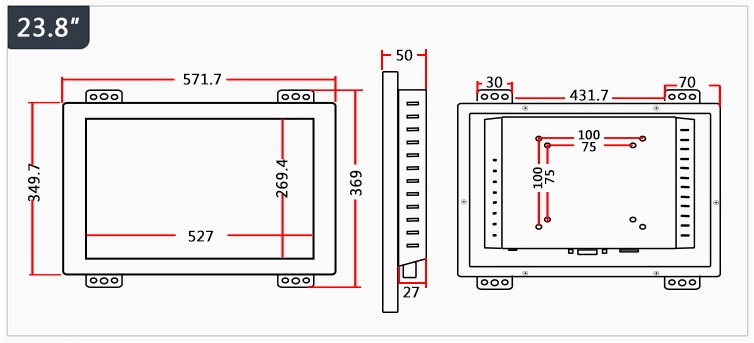

  • Product size: 57.17 *34.60*4.60 CM



  • Touch panel: G+G
  • Surface hardness: 7H
  • Transparency: >90%±5%
  • Operating temperature: 0 to 50°C/20%-80%(non-condensing)
  • Humidity temperature: 0-85% at 40°C (non-condensing)
  • Storage temperature: -20 to 60°C/5-95%(non-condensing)
  • Storage humidity: 5%~95%
  • Connection Type: USB
  • Response time: <10 ms
  • Operation voltage: 3.3 V-3.6 V DC
  • Max supported points : 10
  • System supported: Windows XP/7/8/10, Android, Linux















HDMI input

Accessories:


VESA wall mount, warranty card,VGA cable, USB cable, manual and power adapter.
