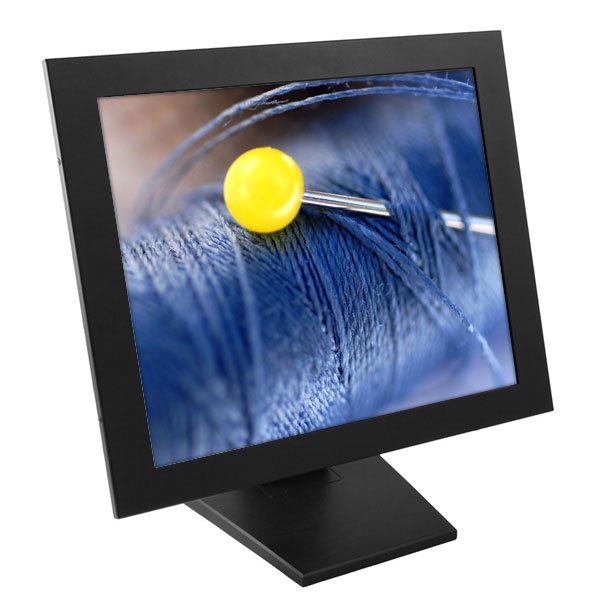

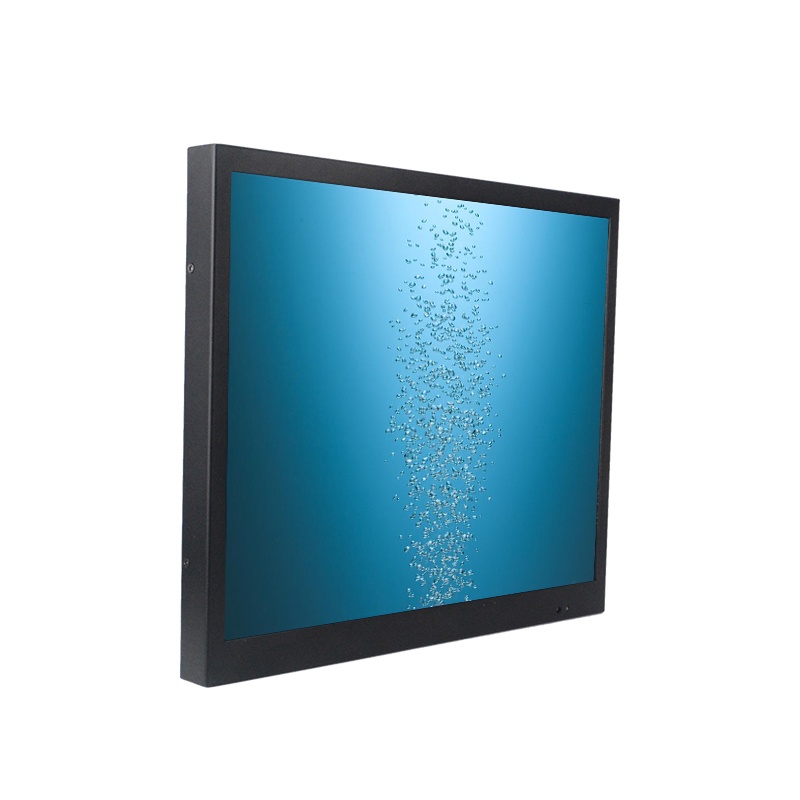

H170-J 17 inch 1280*1024 metal case non-touch monitor

H170-J 17 inch 1280*1024 metal case non-touch monitor

17 inch 1280*1024 metal case non-touch monitor with VGA 15 PINS+BNC*3
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

· 3D digital comb filter with 3D digital noise reduction

· Progressive scan ;

· Solid metal frame, Anti-static, Anti-magnetic field and Anti strong interference.

· VESA standard wall mount(Metal folded holder optional)

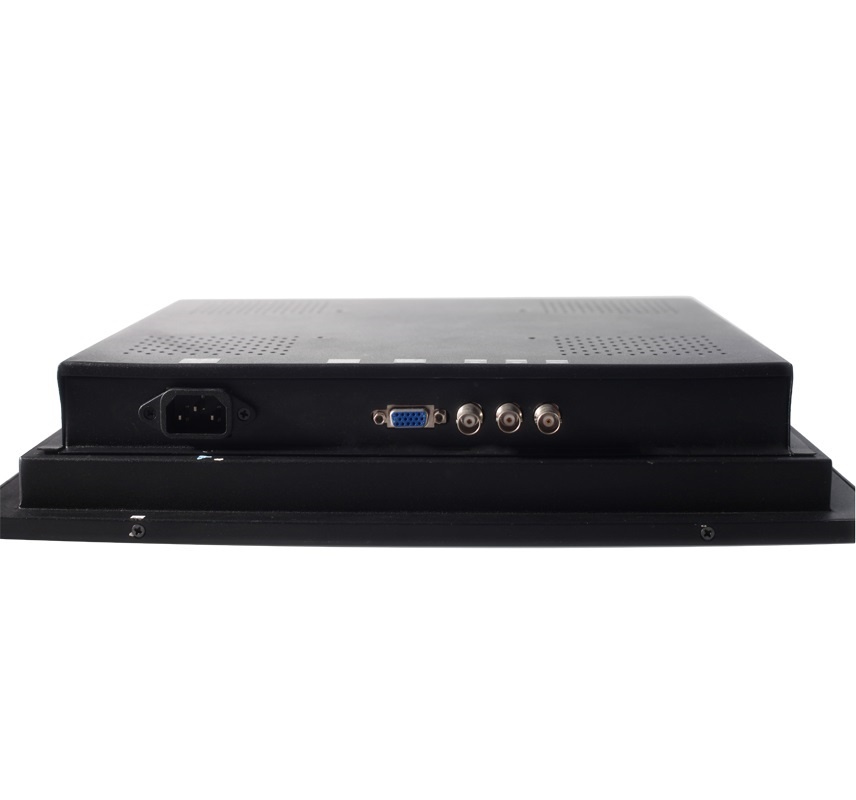

· VGA,BNC1,BNC2, Y,Pb,Pr/Y,Cb,Cr: BNC×3 input;

· BNC output;

  Built-in power supply


· Picture in Picture function

· Accessories: Manual, BNC cable, VGA cable, remote controller, power cable and VESA wall mount

· Certification: FCC, CE, RoHS Directive-compliant, CCC

· Mainly used in security monitoring, industry video monitoring or similar fields.





· Model: H170J

· Display: 17” TFT High Definition Digital Metal monitor (4:3)

· Languages: English, Russian, French, Spanish, German, Italian and Chinese

· Resolution: 1280*1024 pixels

· Brightness: : 400 cd/squa

· Contrast ratio: 1000:1

· Screen distance: 0.264*0.264 mm

· Viewing angles: 85°/ 85°/ 80°/ 80°

· Input voltages: 110 to 240V AC

· Output voltage: 12V DC

· Average life: 50,000 hrs

· Operating temperature: 0 to 50°C/20%-80%(non-condensing)

· Humidity temperature: 0-85% at 40°C (non-condensing)

· Storage temperature: -10 to 60°C/5-95%(non-condensing)

· Horizontal frequency: 30~61KHZ

· Field frequency: 60~75KHZ

· Color16.8 M colors

· TV System: PAL/NTSC4.43/NTSC3.58/SECAM

· Audio formatsBG/DK/I/ and M/N

· Video input: 1.0Vp-p@75ohm

· Audio input: 500mVrms

· Power consumption: (max) 30W

· Stand-by power consumption:  <1.0W

· Storage humidity: 5%~95%

· Loudspeaker output: Max.2.0W Output(16Ω)

· Earphone output:  Max.10mW Output3.5φStereo Jack,32Ω)

· Response time: 8ms


Packing

· Product dimensions: 39.5 x 32.5 x 6.0cm

· Gift box: 44.5×12.5×39.0cm

· Net weight: 5.60kg

· Carton size: 47.0*40.0*42.0cm

· Carton qty: 3pcs

  • Accessories: Manual, BNC cable, VGA cable, remote controller, power cable and VESA wall mount (Standard)
