H150 15 inch Plastic Frame Monitor with VGA+AV+BNC+HDMI+USB interfaces

H150 15 inch Plastic Frame Monitor with VGA+AV+BNC+HDMI+USB interfaces

15 inch Plastic Frame Monitor with VGA+AV+BNC+HDMI interfaces
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

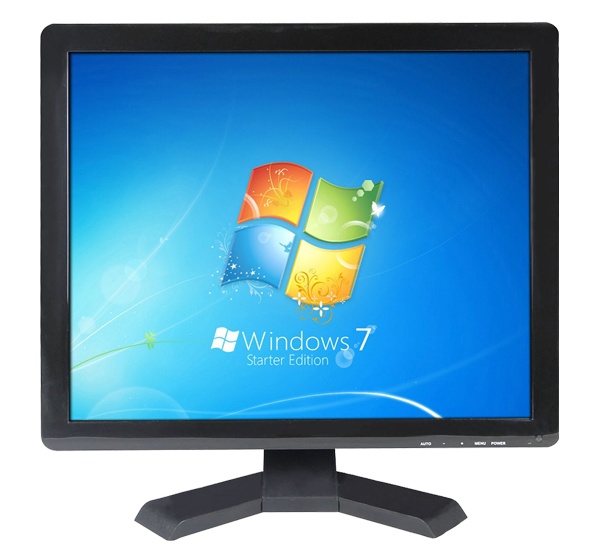

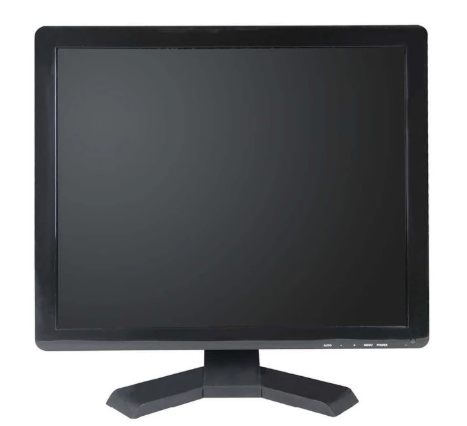

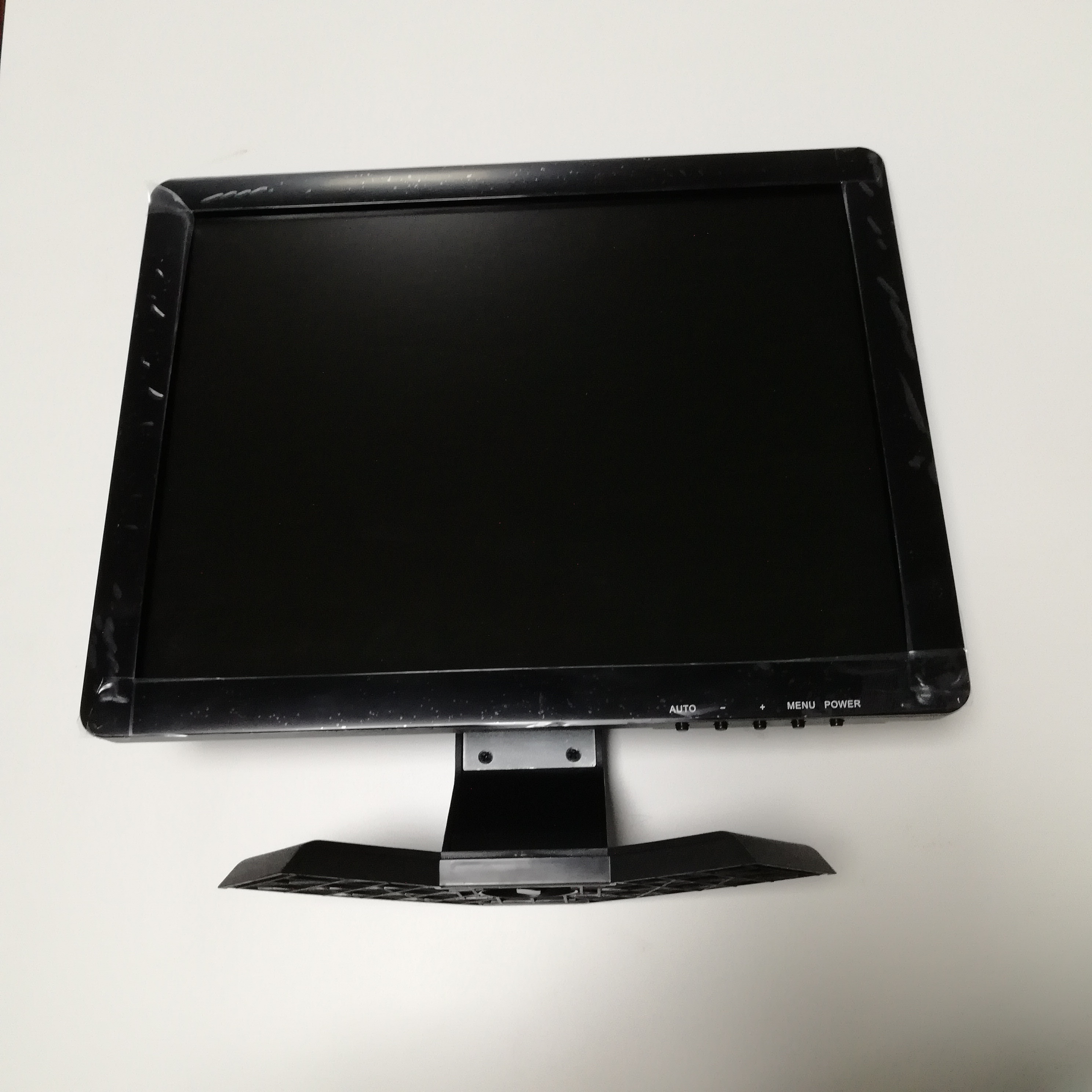

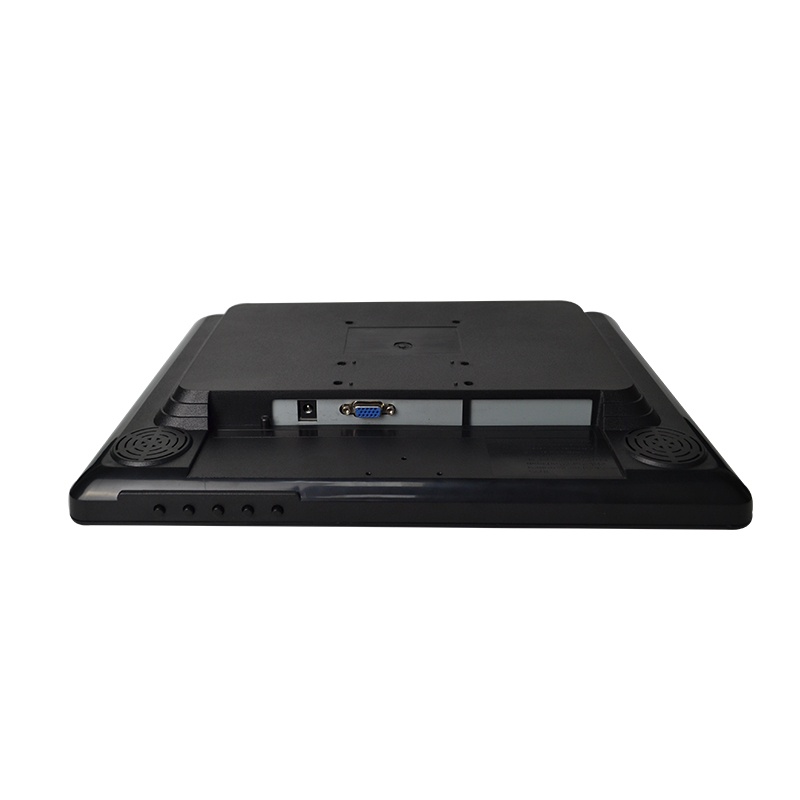

15 inch Plastic Frame Monitor

4:3 aspect ratio

1024*768 definition

Sharp or MITSUBISHI lcd panel

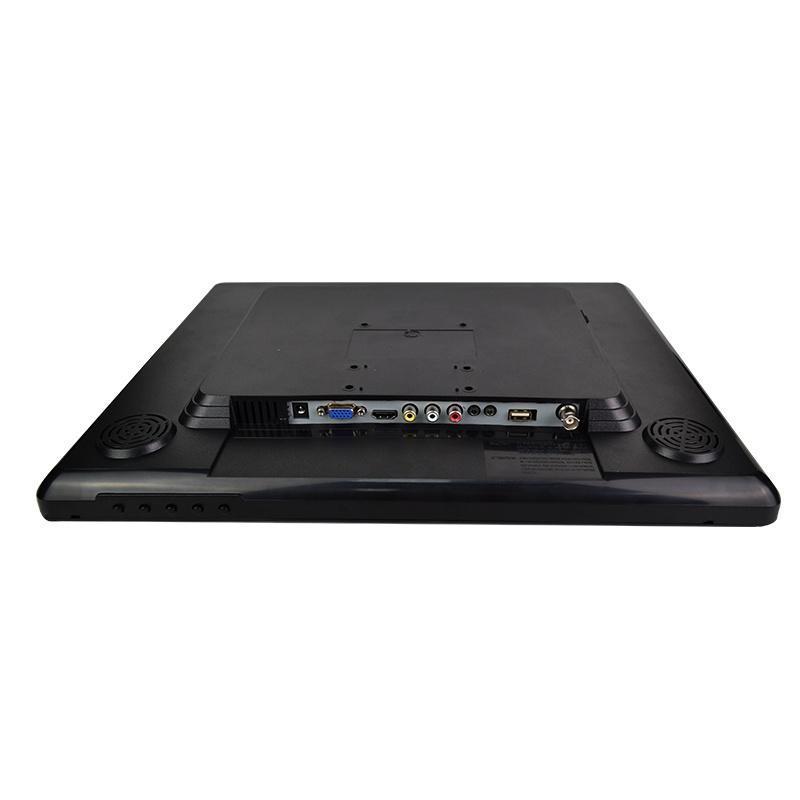

VGA+AV+BNC+HDMI+USB interfaces



  • Certification: FCC, CE, RoHS Directive-compliant, CCC



  • Mainly used in industrial endoscope, video microscope, industry Smooth degree of coplanar detector, dimensional detector, hot-press BGA rework station, Laser engraving equipment, Laser marking machine, The rocker camera security, video surveillance, POS cash register system and other similar areas.




  • Model: H150


  • Display: 15” TFT High Definition Digital monitor (4:3)
  • Resolution: 1024*768 pixels
  • Brightness: 350 cd/m²
  • Contrast ratio: 800:1
  • Viewing angles: 150°/150°
  • Input voltages: 110 to 240 V AC
  • Output voltage: 12V DC
  • Operating temperature: 0 to 50°C
  • Humidity temperature: 0-85% at 40°C (non-condensing)
  • Storage temperature: -20 to 60°C
  • Frame color: Black
  • Interface:VGA+AV+BNC+HDMI+USB

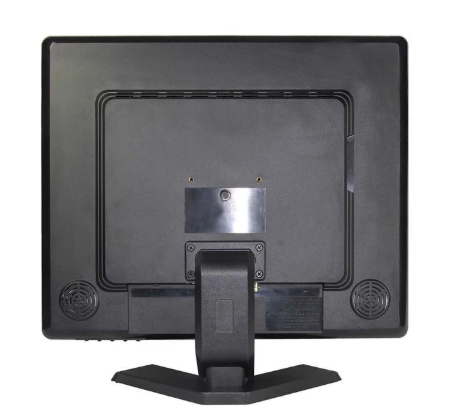

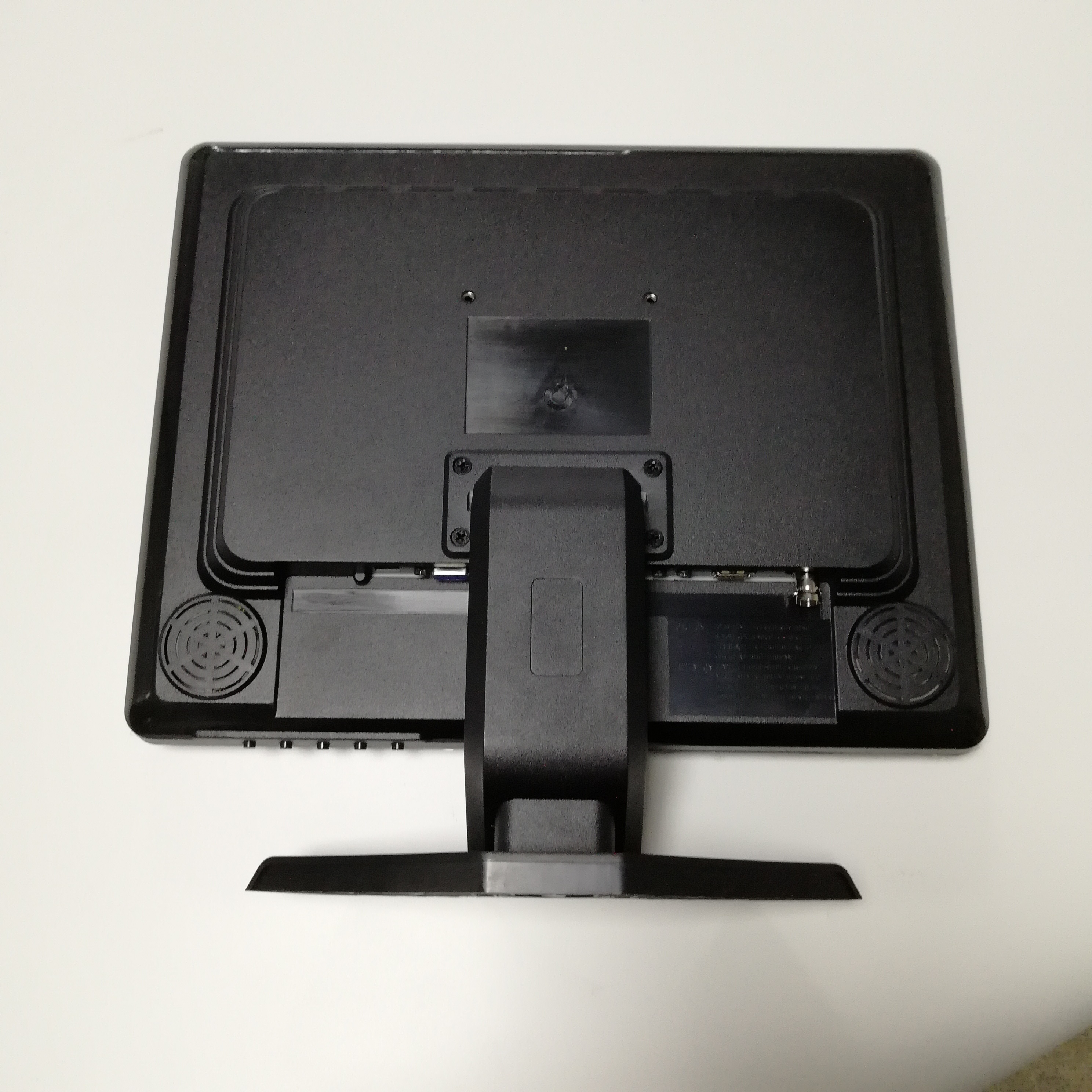

  • Assembling:  With stand or VESA wall mount
  • Touch function: Optional for resistive touch (4 WIRES OR 5 WIRES)
  • Product size: 34.9*37.2*4.4 cm
  • Net weight: 1.82 KGS
  • Carton box size: 44*42*35 cm
  • 3 PCS/CTN








  •

    Accessories:


    Warranty Card, Manual, VGA cable, Power adapter, Remote controller and Plastic stand.
