H156A-RT 1366*768 15.6 inch wide screen capacitive touch monitor

H156A-RT 1366*768 15.6 inch wide screen capacitive touch monitor

15.6 inch 1366*768 projected capacitive touch monitor (16:9)
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

15.6 inch industrial capacitive touch monitor

16:9 widescreen

EETI touch control

1366*768; optional for 1920*1080

G+G structure

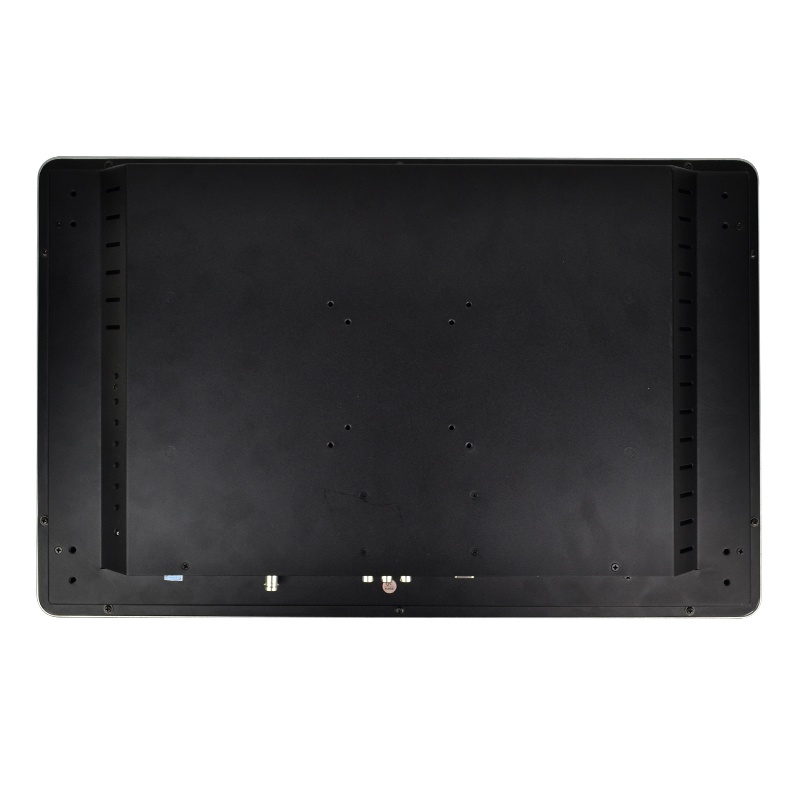

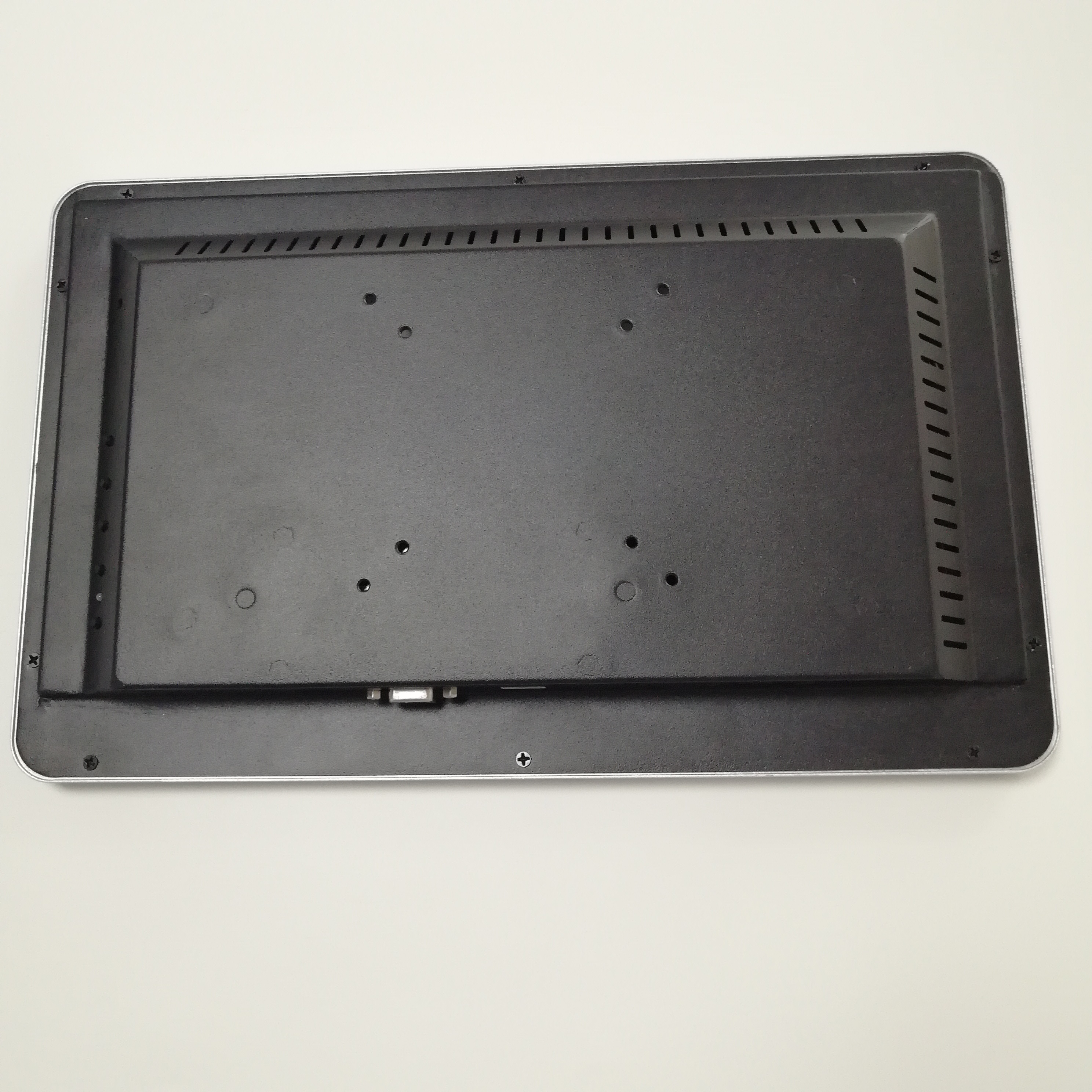

VESA mount, open frame or with folded stand

VGA+HDMI+USB Touch

  • Model: H156A-RT
  • Display: 15.6” TFT High Definition capacitive touch monitor (16:9)
  • Resolution: 1366*768 pixels
  • Brightness: 250 nits
  • Contrast ratio: 500:1
  • Power supply: 12V DC with 110 V-240 V AC power adapter
  • Response time: 6 ms
  • Viewing angle: 150°/150°
  • Touch IC: industrial EETI touch or consumer ILITEK touch
  • Shell material: Aluminium bezel with metal case

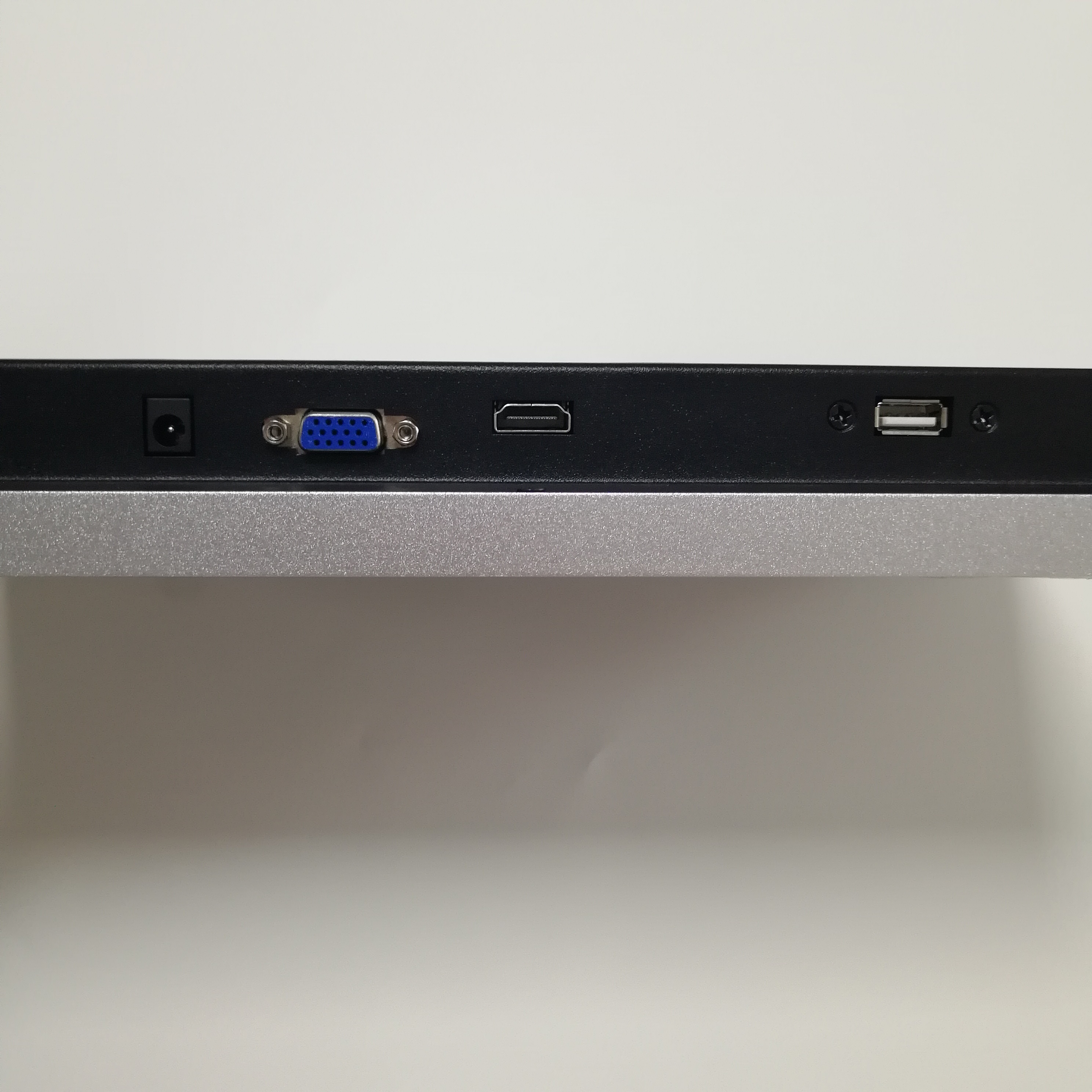

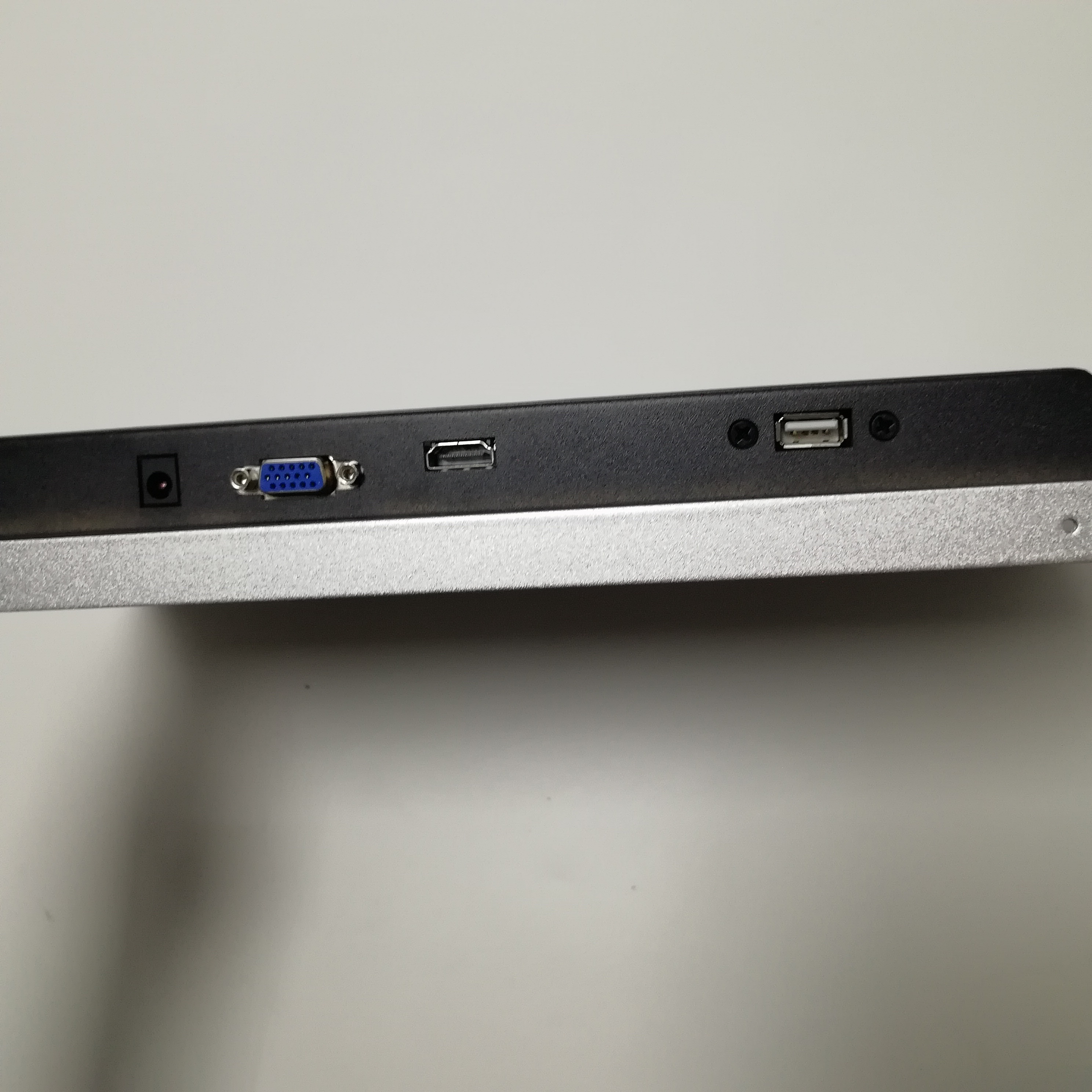

  • Interface: VGA+HDMI+USB for Touch

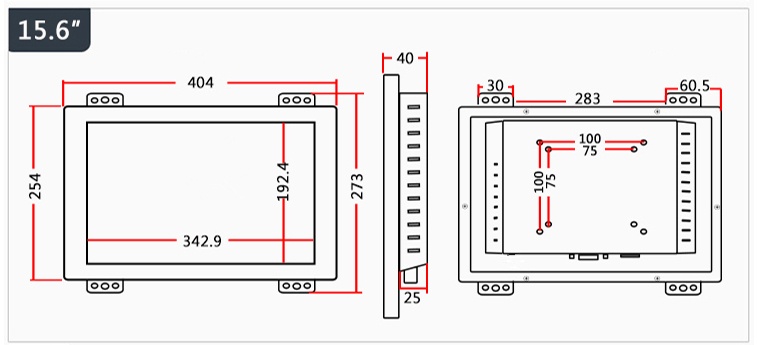

  • Product size: 40.4*25.4*3.8 cm
  • Net weight: 2.35 KGS



  • Touch panel: G+G
  • Surface hardness: 7H
  • Transparency: >90%±5%
  • Operating temperature: 0 to 50°C/20%-80%(non-condensing)
  • Humidity temperature: 0-85% at 40°C (non-condensing)
  • Storage temperature: -20 to 60°C/5-95%(non-condensing)
  • Storage humidity: 5%~95%
  • Connection Type: USB
  • Response time: <10ms
  • Operation voltage: 3.3V-3.6V DC
  • Max supported points : 10
  • System supported: Windows XP/7/8/10, Android, Linux





Accessories:


VESA wall mount, warranty card, VGA cable, USB cable, manual and power adapter.
