H150-RT 1024*768 15 inch capacitive touch panel with G+G touch panel

H150-RT 1024*768 15 inch capacitive touch panel with G+G touch panel

15 inch 1024*768 industrial capacitive touch monitor (4:3)
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

15 inch industrial capacitive touch monitor

Industrial EETI touch control

1024*768

350 nits brightness

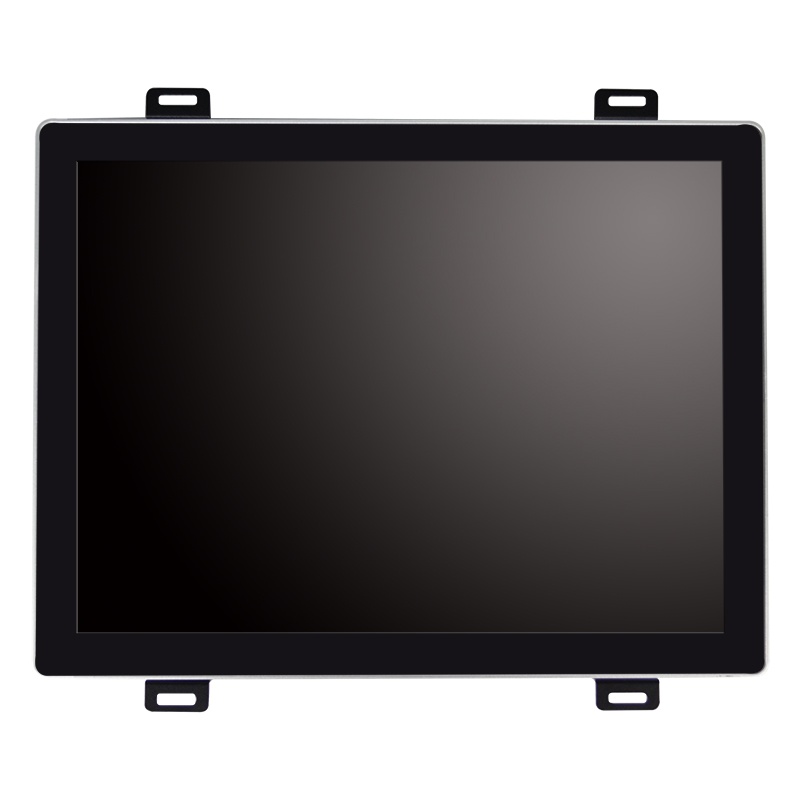

VESA mount, open frame or with folded stand

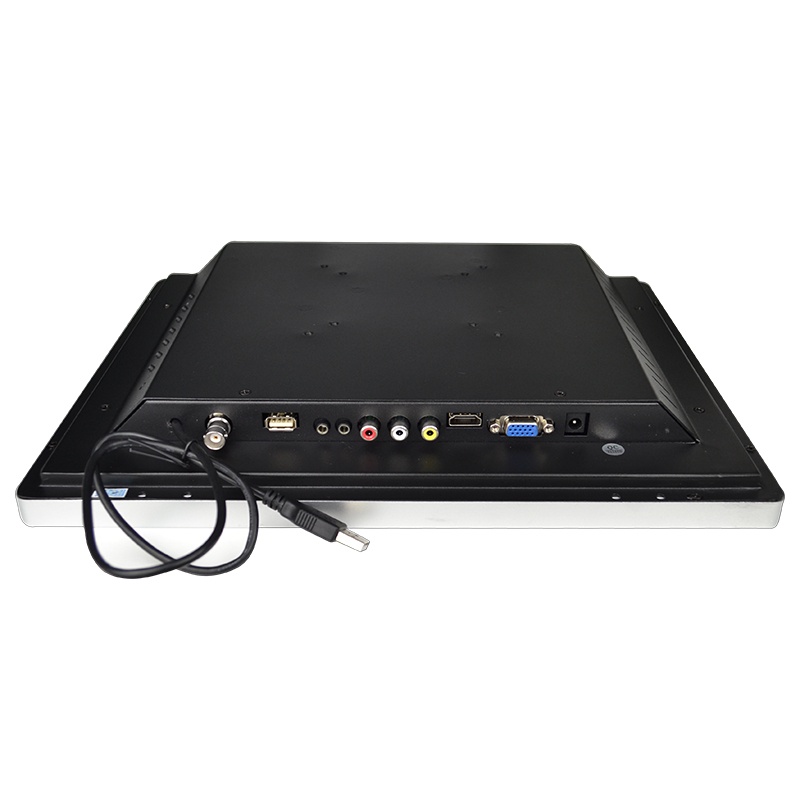

VGA+AV+BNC+HDMI+USB (Media Player)+USB for Touch

  • Model: H150-RT
  • Display: 15” TFT High Definition capacitive touch monitor (4:3)
  • Resolution: 1024*768 pixels
  • Brightness: 350 nits
  • Contrast ratio: 800:1
  • Power supply: 12V DC
  • Response time: 6 ms
  • Viewing angle: 150°/150°
  • Touch control: industrial EETI touch or consumer ILITEK touch
  • Shell material: Aluminium bezel with metal housing
  • Interface: VGA+AV+BNC+HDMI+USB+Touch

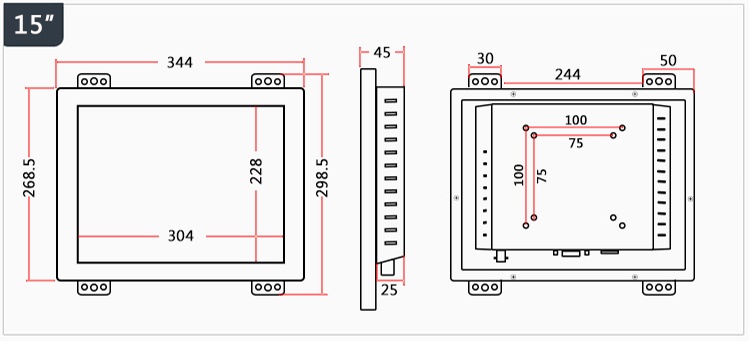

  • Product size: 34.5*27*5.2 cm
  • Net weight: 2.27 kgs
  • Carton box size: 44*42*39 cm
  • 5 PCS/CTN



  • Touch panel: G+G
  • Surface hardness: 7H
  • Transparency: >90%±5%
  • Operating temperature: 0 to 50°C/20%-80%(non-condensing)
  • Humidity temperature: 0-85% at 40°C (non-condensing)
  • Storage temperature: -20 to 60°C/5-95%(non-condensing)
  • Storage humidity: 5%~95%
  • Connection Type: USB
  • Response time: <10 ms
  • Operation voltage: 3.3 V-3.6 V DC
  • Max supported points : 10

System supported: Windows XP/7/8 Android, Linux











Accessories:


VESA wall mount kit, warranty card,VGA cable and power adapter.
