H121B-RT 1024*768 12.1 inch capacitive touch monitor with Aluminium frame and G+G touch

H121B-RT 1024*768 12.1 inch capacitive touch monitor with Aluminium frame and G+G touch

1024*768 12.1 inch HDMI function touch monitor with EETI touch
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

  • 12.1 inch pcap touch monitor

  • 1024*768

  • G+G touch

  • True flat screen

  • Industrial EETI touch control

  • 10 touch points

  • VGA+AV+BNC+HDMI+USB(Media player)

  • CE, ROHS, FCC, CCC






  • Model: H121B-RT
  • Display: 12.1” TFT High Definition capacitive touch monitor (4:3)
  • Resolution: 1024*768 pixels
  • Brightness: 250 nits
  • Contrast ratio: 300:1
  • Power supply: 12V DC with 110V-240V AC power adapter
  • Response time: 6 ms
  • Viewing angle: 140°/110°
  • Touch control: Industrial EETI or consumer ILITEK touch
  • Product size: 29.4*22.5*4.9 cm
  • Shell material: Aluminium bezel with metal housing

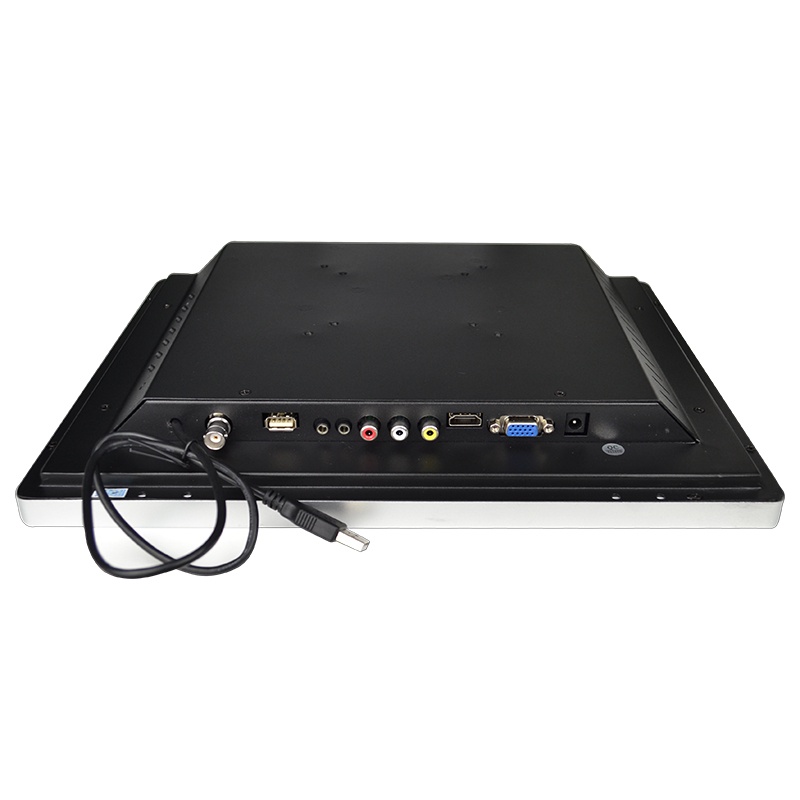

  • Interface: VGA+AV+BNC+HDMI+USB(Media Player)+Touch



  • Touch panel: G+G
  • Surface hardness: 7H
  • Transparency: >90%±5%
  • Operating temperature: 0 to 50°C/20%-80%(non-condensing)
  • Humidity temperature: 0-85% at 40°C (non-condensing)
  • Storage temperature: -20 to 60°C/5-95%(non-condensing)
  • Storage humidity: 5%~95%
  • Connection Type: USB
  • Response time: <10 ms
  • Operation voltage: 3.3 V-3.6 V DC
  • Max supported points : 10
  • System supported: Windows XP/7/8/10, Android, Linux









Accessories:


VESA wall mount, warranty card,VGA cable manual and power adapter.
