- 3D digital comb filter with 3D digital noise reduction
-
Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean
-
HD Signal with Progressive scan ;
-
Solid metal frame, Anti-static, Anti-magnetic field and Anti strong interference.
-
VESA standard wall mount(Metal folded holder optional)
-

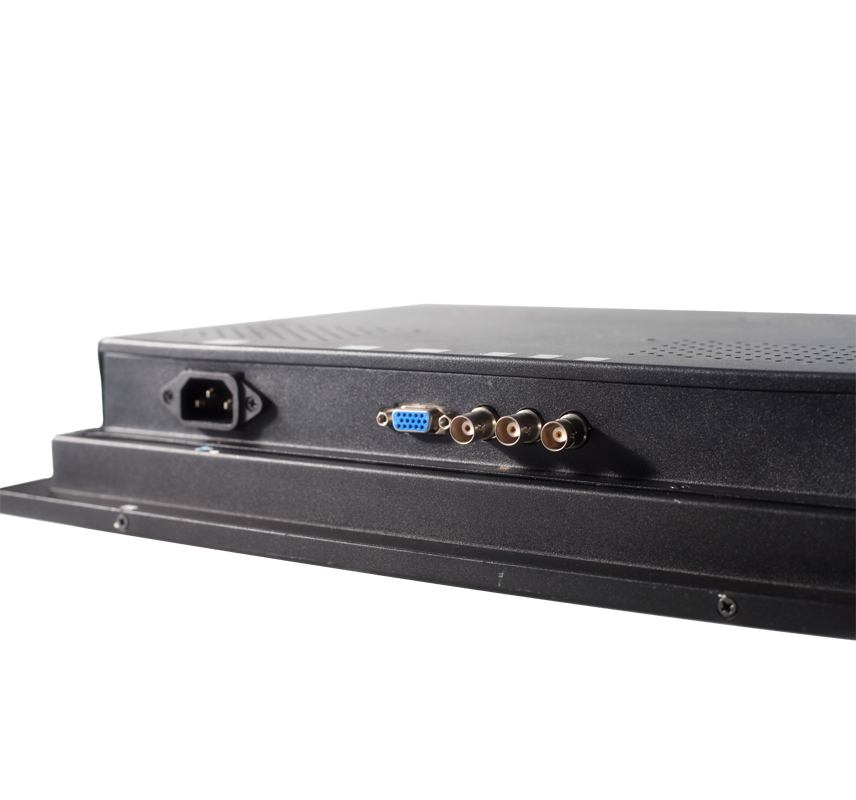

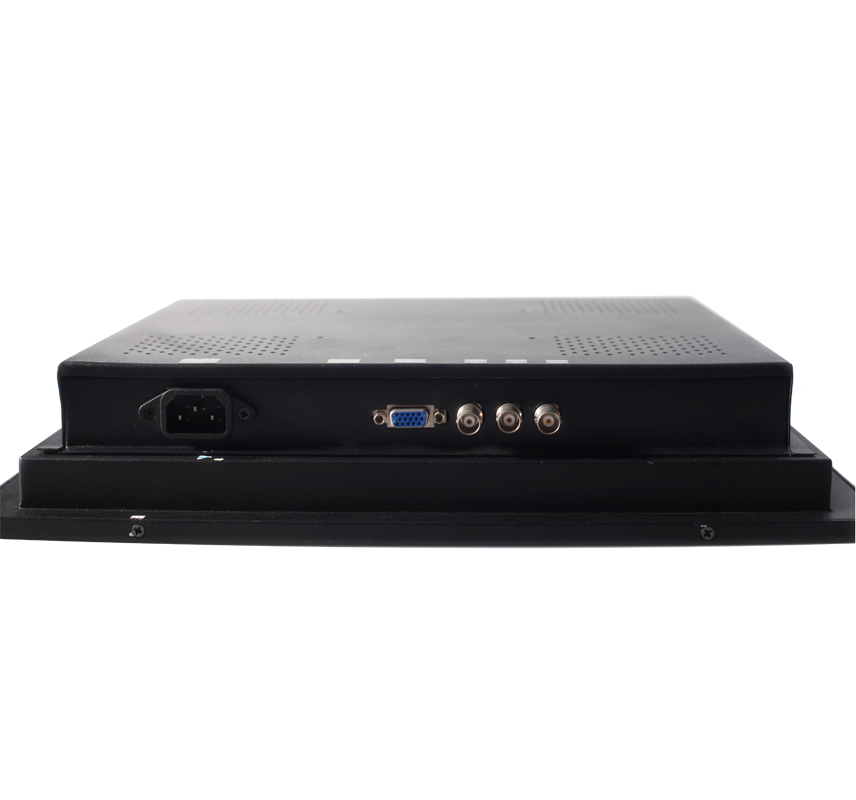

VGA,BNC1,BNC2 input；
- BNC output；
-
Certification: FCC, CE, RoHS Directive-compliant, CCC

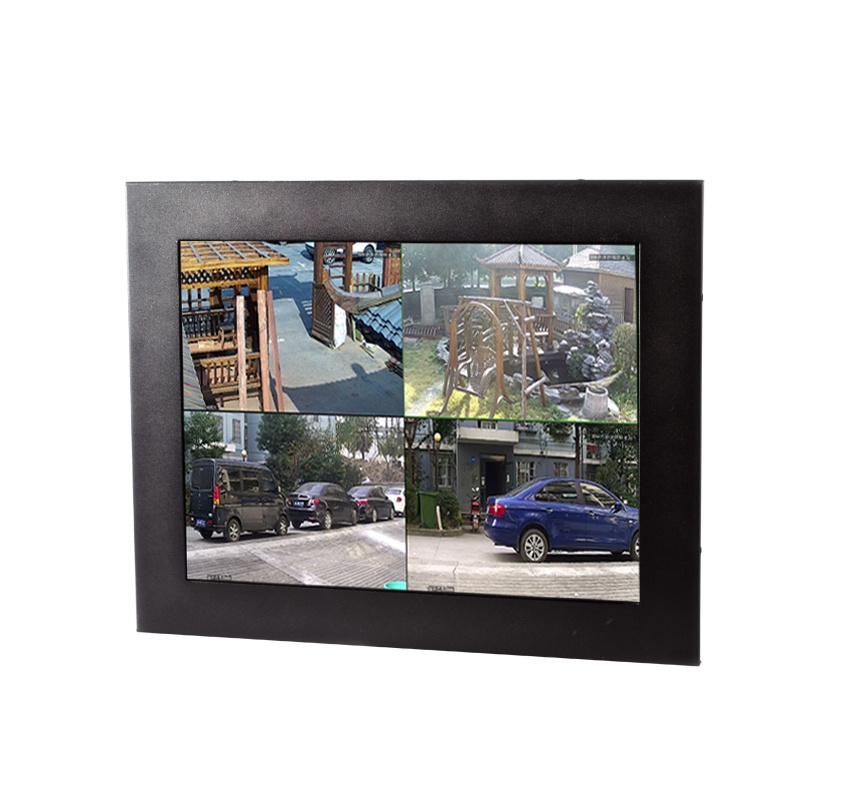

- Mainly used in security monitoring, industry video monitoring or similar fields.
- Model: H150J

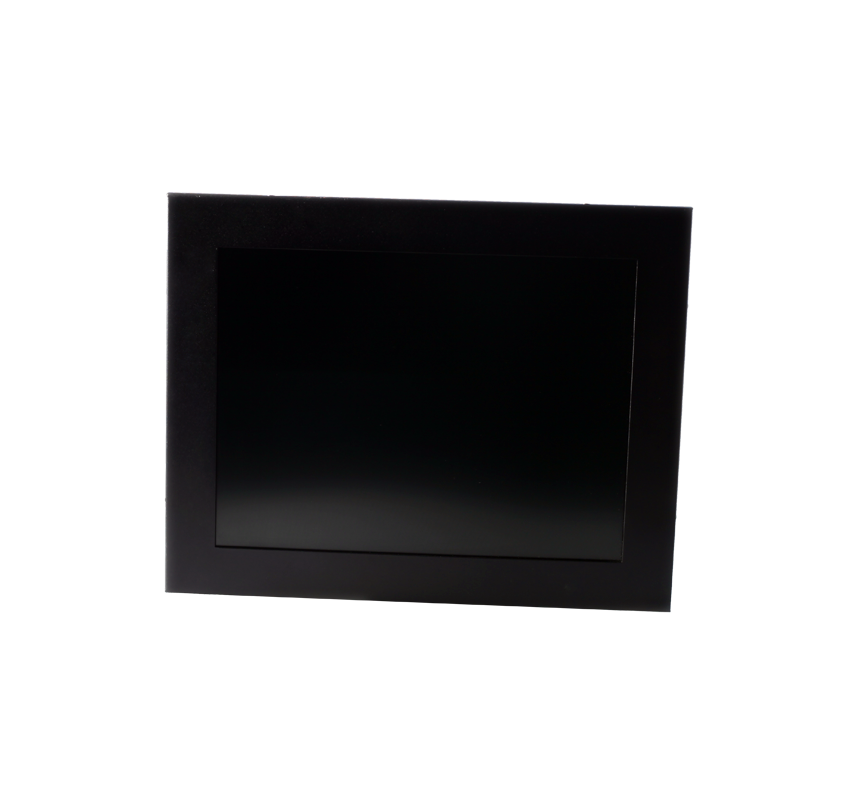

- Display: 15.0” TFT High Definition Digital metal monitor (4:3)
- Languages: English, Russian, French, Spanish, German, Italian and Chinese
- Resolution: 1024*768 pixels
- Brightness: : 400 cd/squa
- Contrast ratio: 250:1
- Viewing angles: 80°/ 80°/ 80°/ 80°
- Average life: 50,000 hrs
- Input voltages: 110 to 240V AC
- Output voltage: 12V DC
- Operating temperature: 0 to 50°C/20%-80%(non-condensing)
-
Humidity temperature: 0-85% at 40°C (non-condensing)
- Storage temperature: -10 to 60°C/5-95%(non-condensing)
-
Horizontal frequency: 30~79KHZ
-
Field frequency: 60~75KHZ
-
Audio formats：BG/DK/I/ and M/N
-
Video input: 1.0Vp-p@75ohm
-
Audio input: 500mVrms
-
Power consumption:
(max) 21W
-
Stand-by power
consumption: <1.0W
-
Storage humidity: 5%~95%
-
Loudspeaker output: Max.2.0W Output(16Ω)
-
Earphone output: Max.10mW
Output（3.5φStereo Jack,32Ω）
-
Response time: ≤8ms
