H8008Q 8 inch Embedded metal LCD monitor

H8008Q 8 inch Embedded metal LCD monitor

8" TFT metal LCD Display, high pixel and resolution,4:3 display ratio with standard VGA and AV ports, optional BNC and HDMI ports.
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

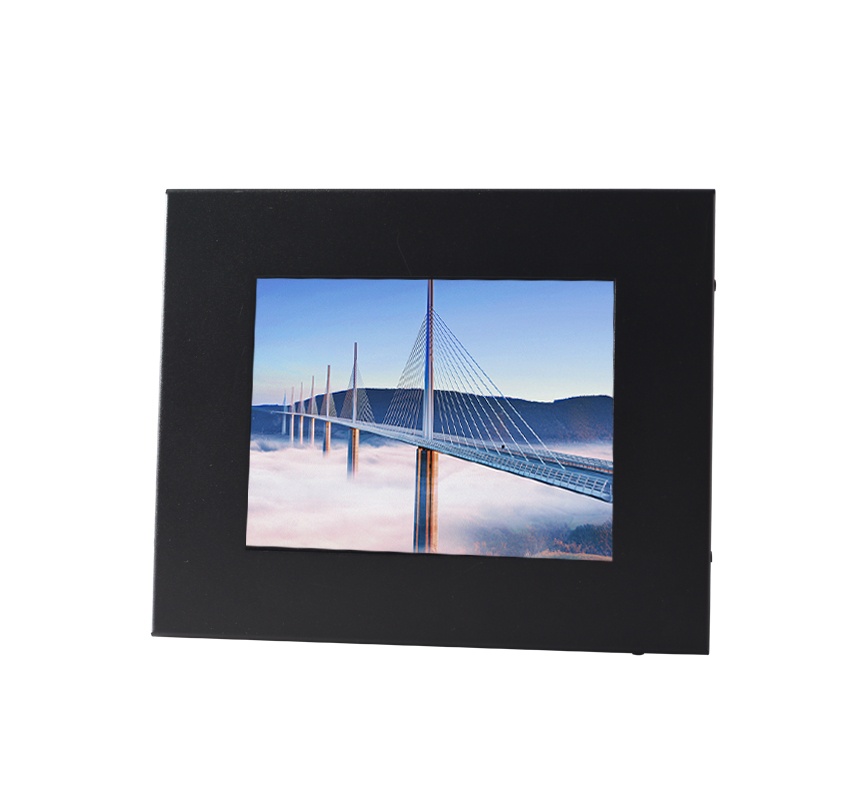

8" TFT metal LCD Display

800*600 or 640*480 resolution

Rugged metal case

Embedded structure for industrial automatic machines

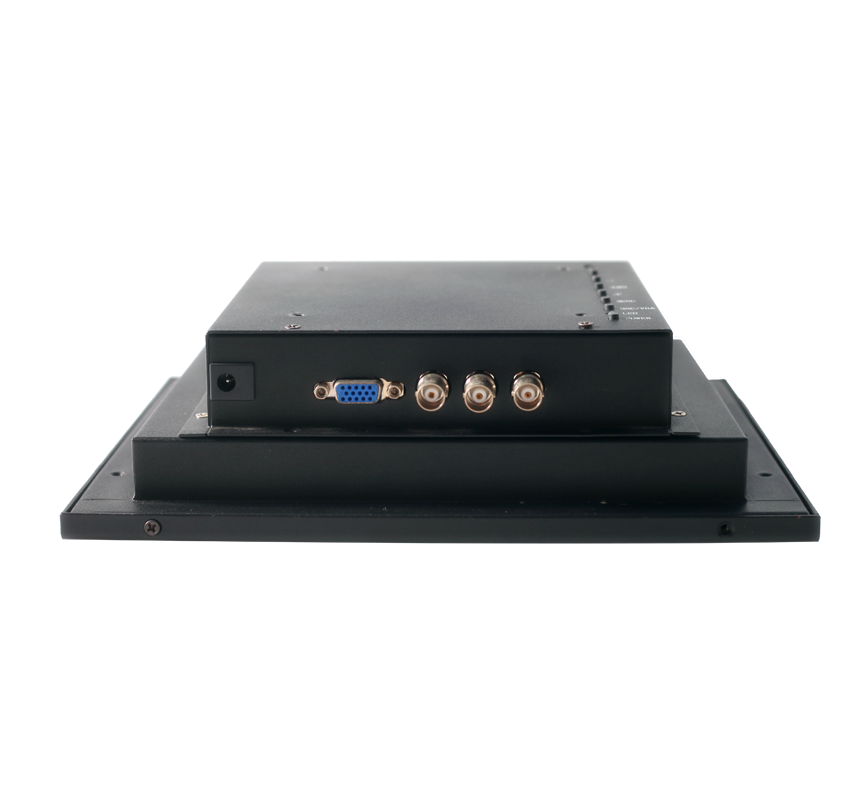

Interface: VGA+BNC*3(In*2, Out*1)

Power in: 12V DC

Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean

Certification: FCC, CE, ROHS, CCC


Display Parameters

Aspect Ratio 4:3 Contrast Ratio 250:1 Response Time 50 ms
Display Area 163.2*122.4mm Brightness 200 nits Backlight CCFL
Resolution 800*600 Viewing Angle 120°/130°


Screen Color 262 K Panel Type LCD

Specification

Installation Custom Stand  Frame color Black Product Dimensions 206*161*37 mm
Power input/output 12V output Operating temperature 0~50℃ Humidity temperature 0~85%@40℃ ( non-condensing )
Storage temperature -20~60℃ Box Packing Dimensions 305*215*75 mm






Accessories: Specification, Warranty card, stand, BNC cable, VGA cable, Remote controller, Power adapter.
