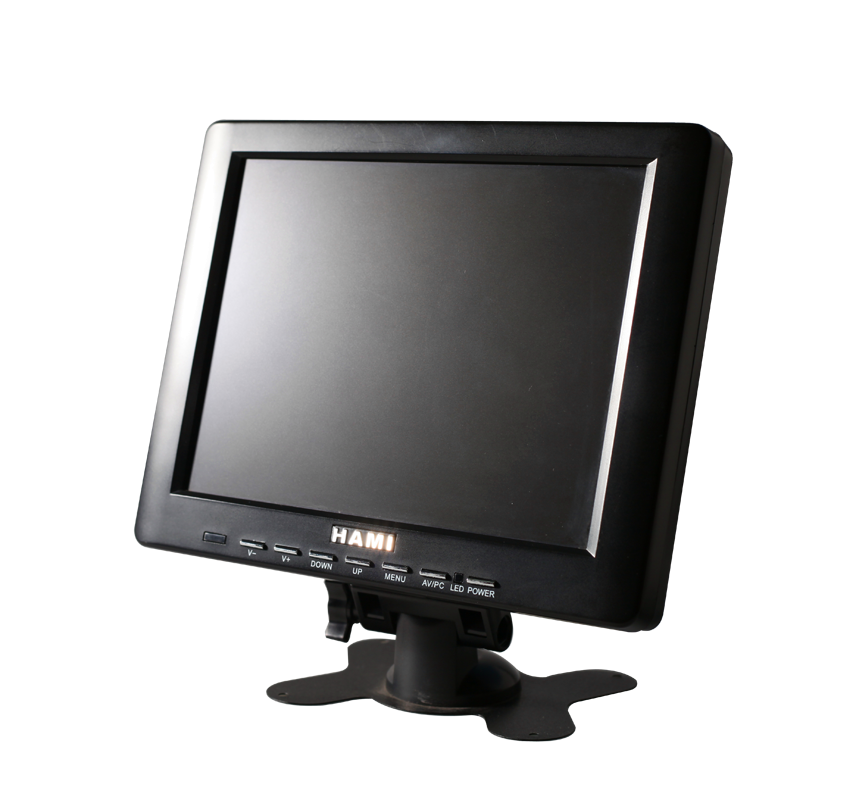

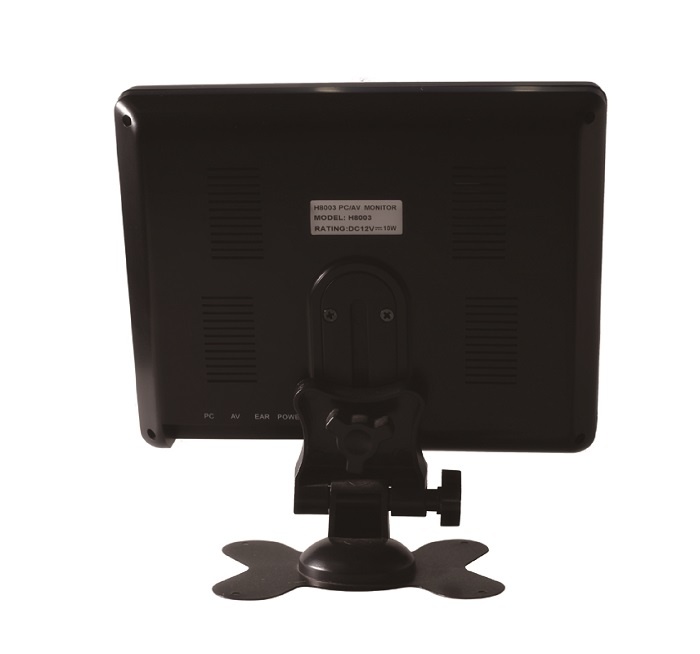

8" plastic instrument built-in lines LCD monitor

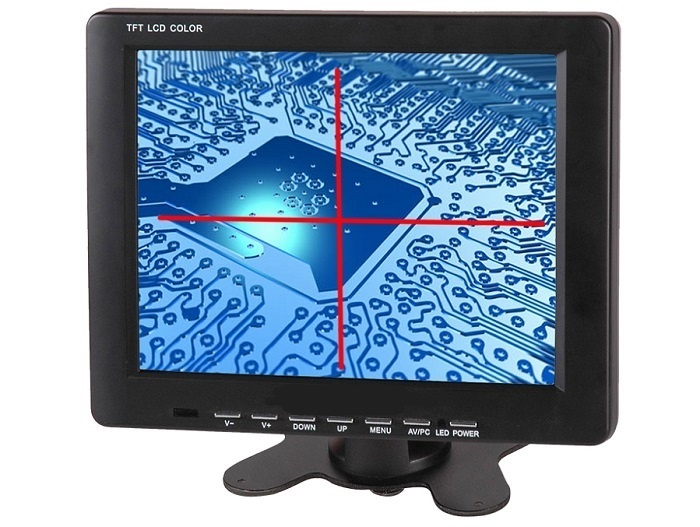

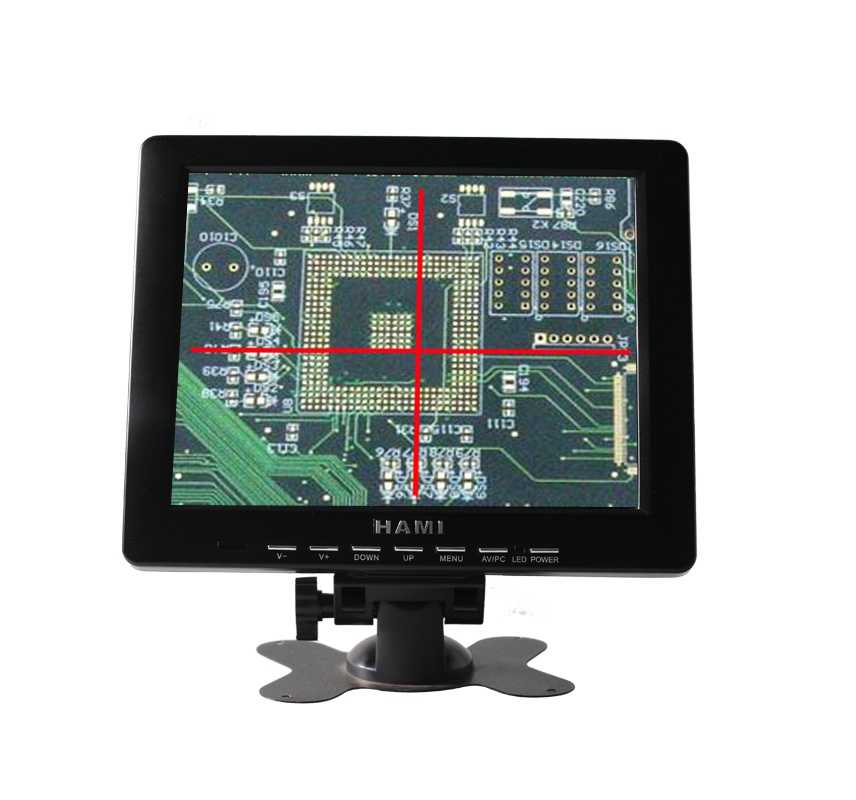

Single cross line

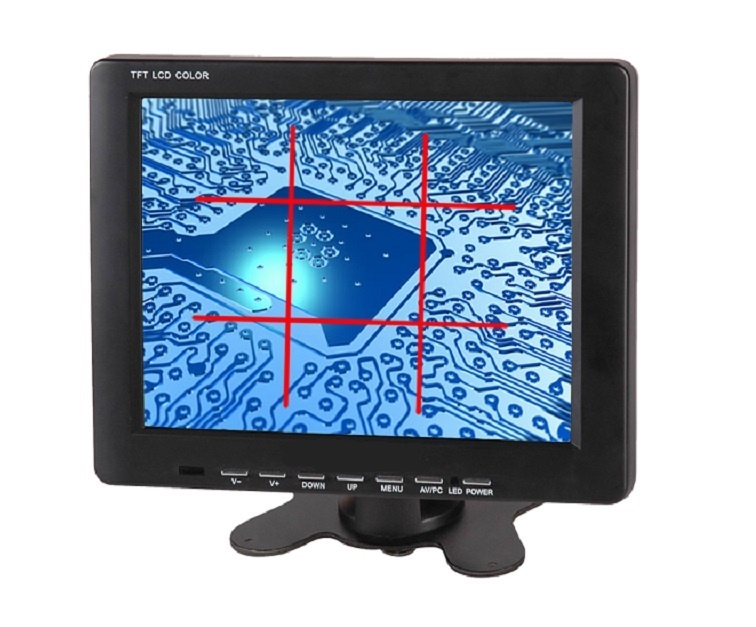

Double cross lines

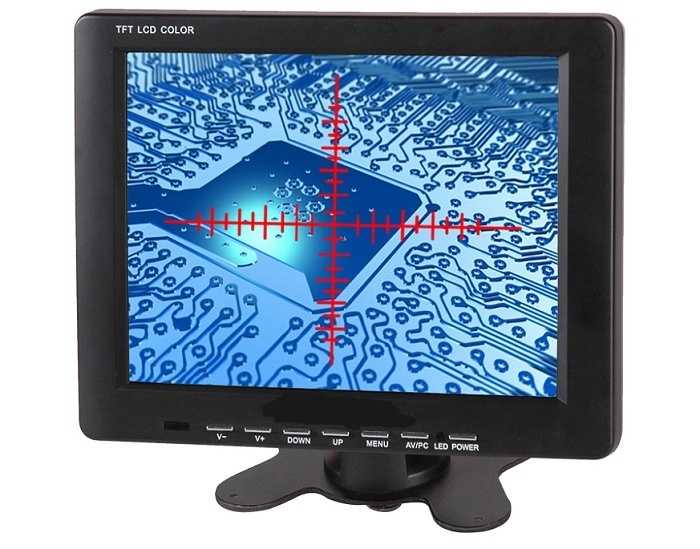

cross-scale lines
4 horizontal lines

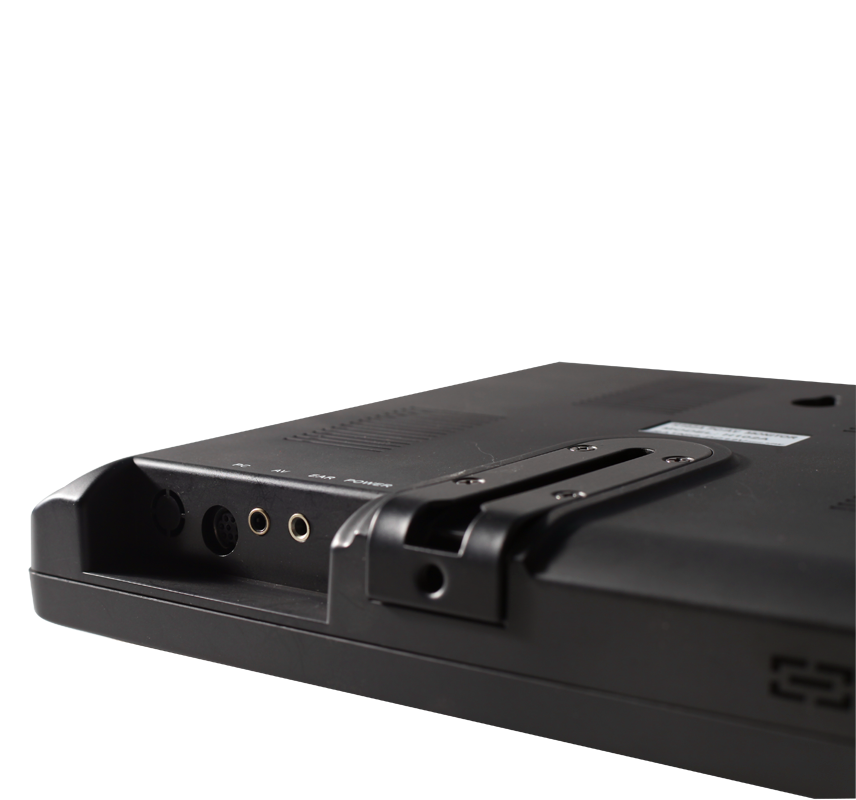

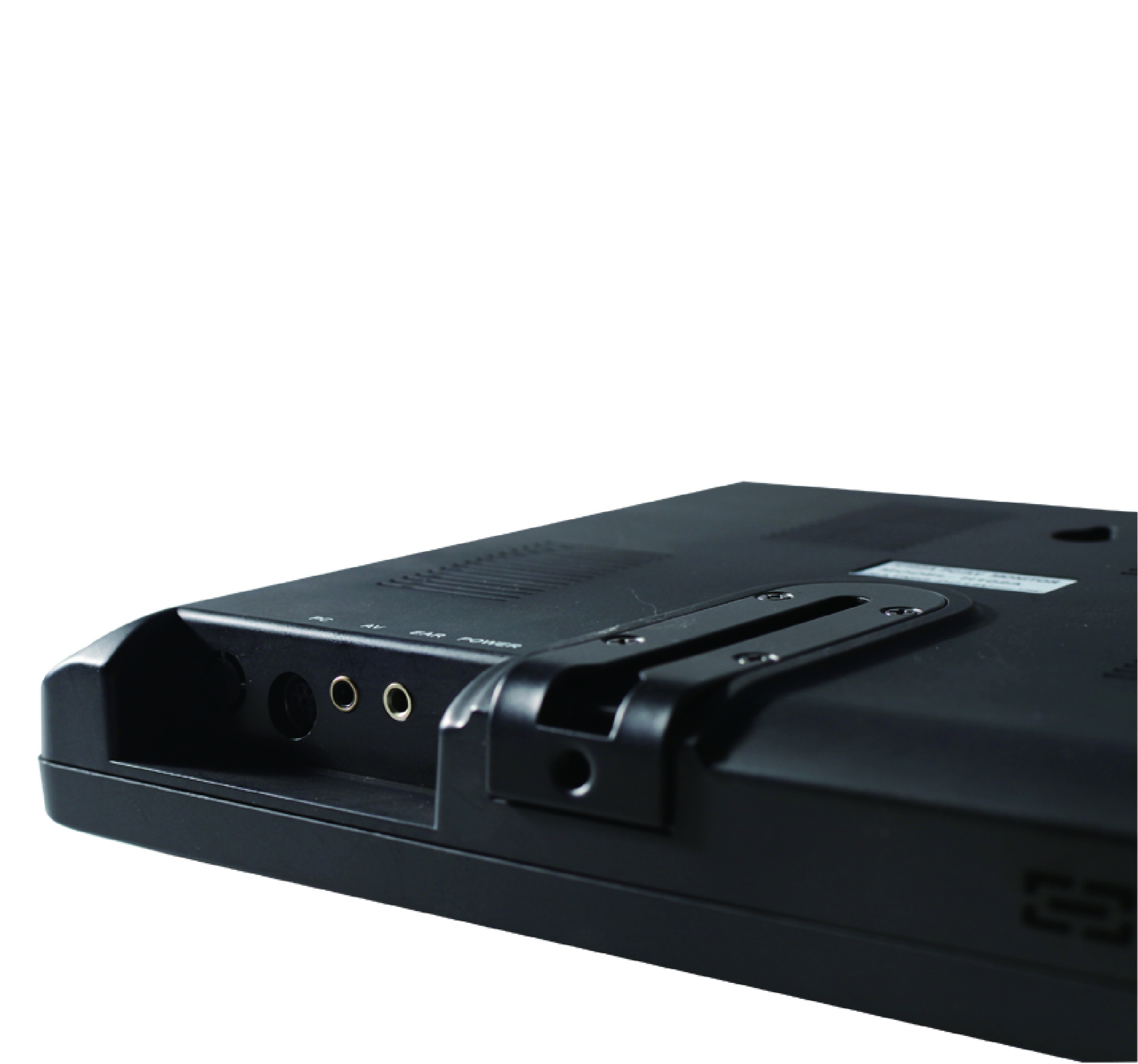

VGA+AV interface
Industrial quality
Certification: FCC, CE, ROHS,CCC
8" plastic instrument built-in lines LCD monitor
Single cross line
Double cross lines
cross-scale lines
4 horizontal lines
VGA+AV interface
Industrial quality
Certification: FCC, CE, ROHS,CCC
Display Parameters |
|||||
Aspect Ratio | 4:3 | Contrast Ratio | 300:1 | Response Time | 50 ms |
Display Area | 163.2×122.4 mm | Brightness | 250 NITS | Backlight | CCFL |
Resolution | 640*480 | Viewing Angle | 140°/120° |
|
|
Screen Color | 262 K | Panel Type | LCD | ||
Specification |
|||||

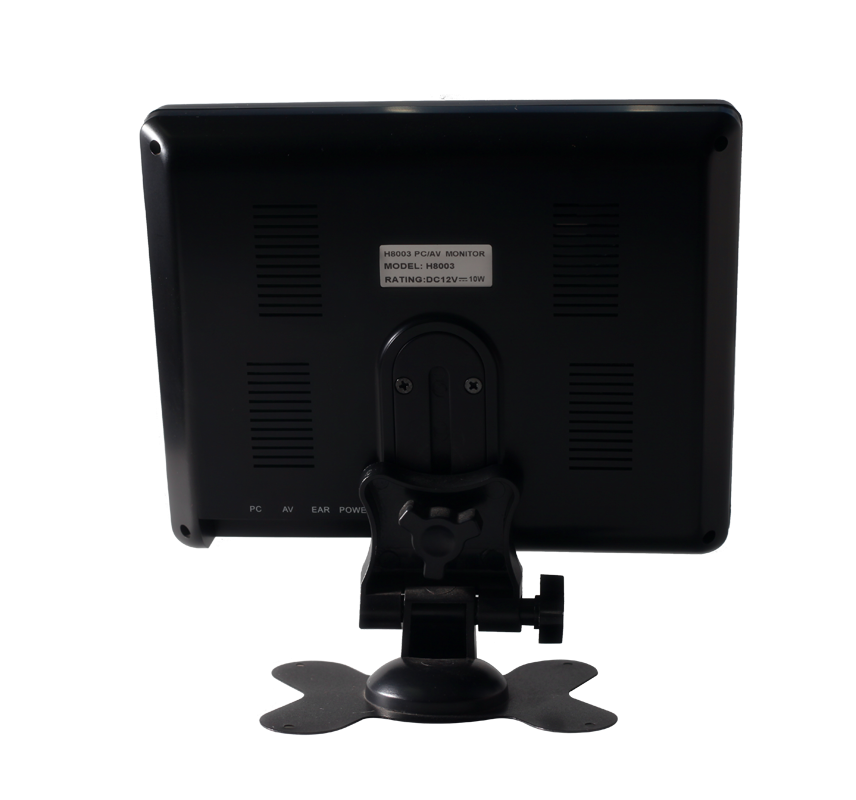

Installation | Butterfly sharp stand | Frame color | Black | Product Dimensions | 206*161*37 mm |
Power input/output | 110V to 240V input, 12V output | Operating temperature | 0~50℃ | Humidity temperature | 0~85%@40℃ ( non-condensing ) |
Storage temperature | -20~60℃ | Gift Box Packing Dimensions | 305*215*75 mm | Carton Box Dimensions | 45*31.5*39.2 cm (10 pcs/ctn) |
Accessories:
Warranty card, stand, AV cable, VGA cable, Remote controller, Power adapter and manual.
