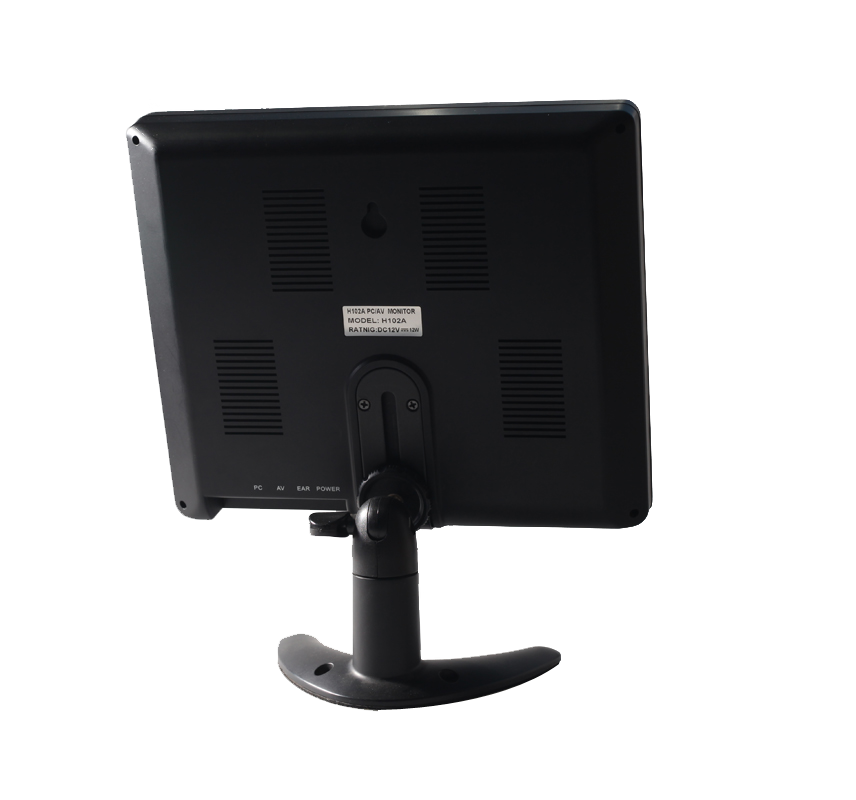

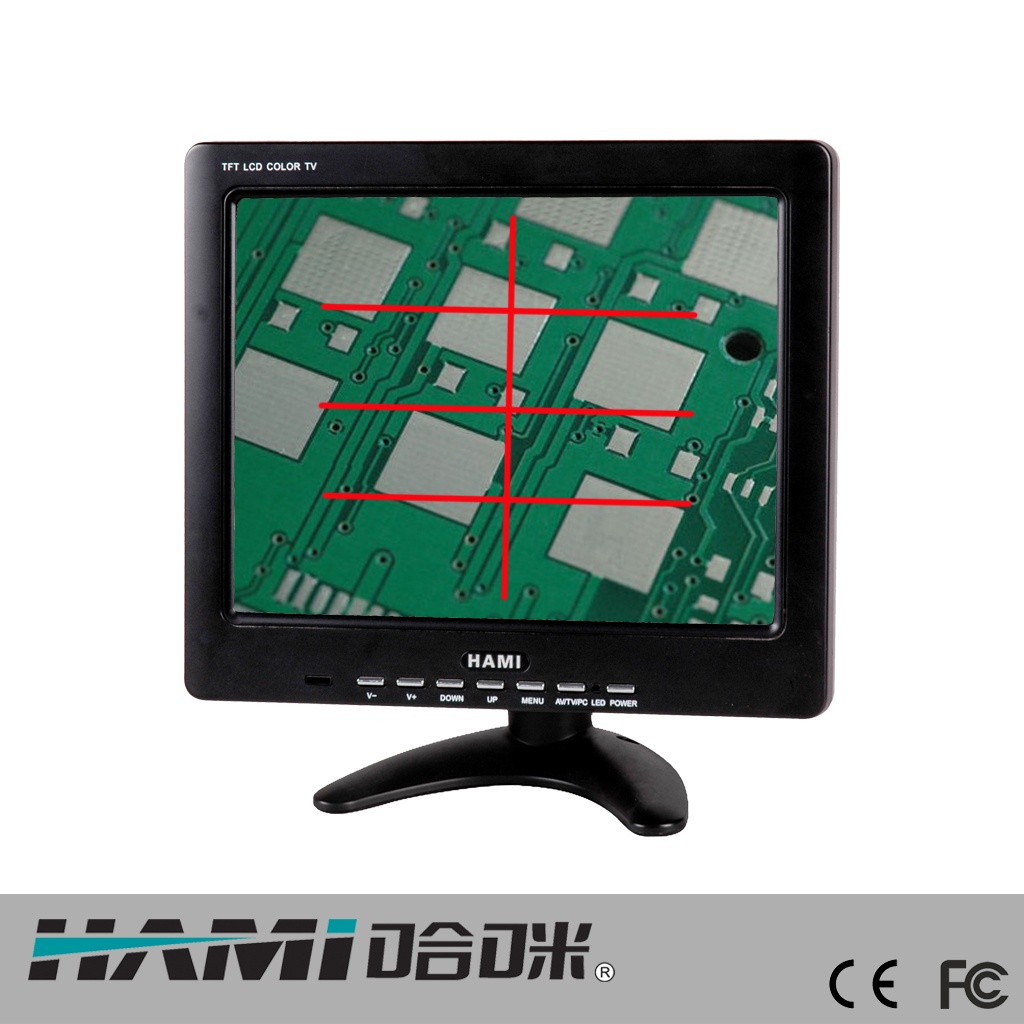

H102A-L 10-inch 800*600 industrial LCD monitor with built-in lines.

H102A-L 10-inch 800*600 industrial LCD monitor with built-in lines.

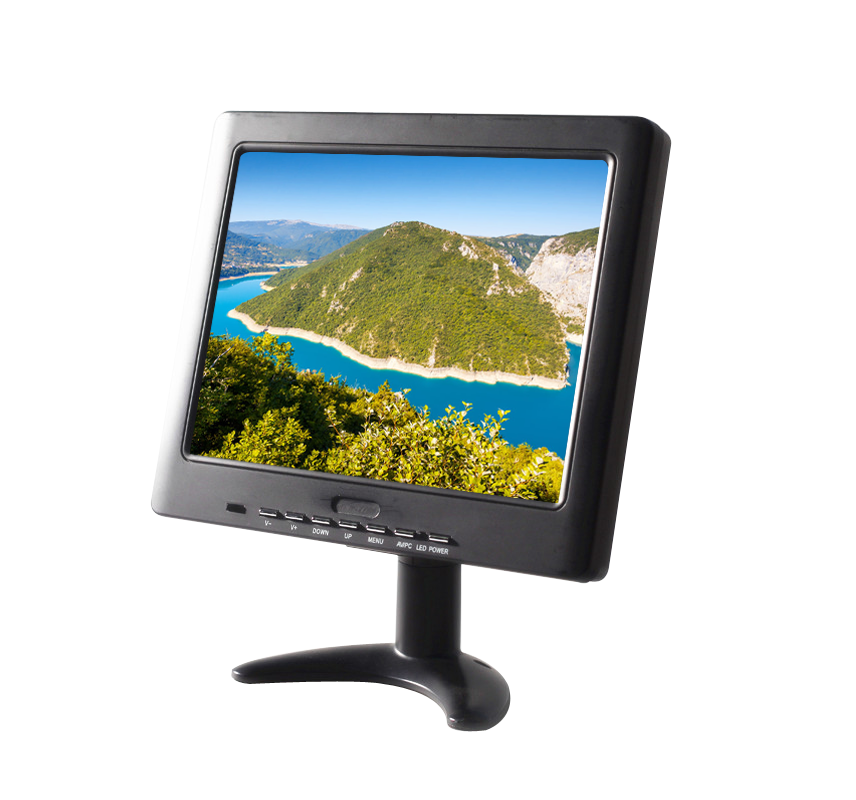

10" plastic instrument and industrial LCD Display,high precision,the screen can display cross line and cross-scale lines,with standard VGA/RCA ports,optional BNC and HDMI ports.
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

800*600

10" plastic instrument and industrial LCD Display

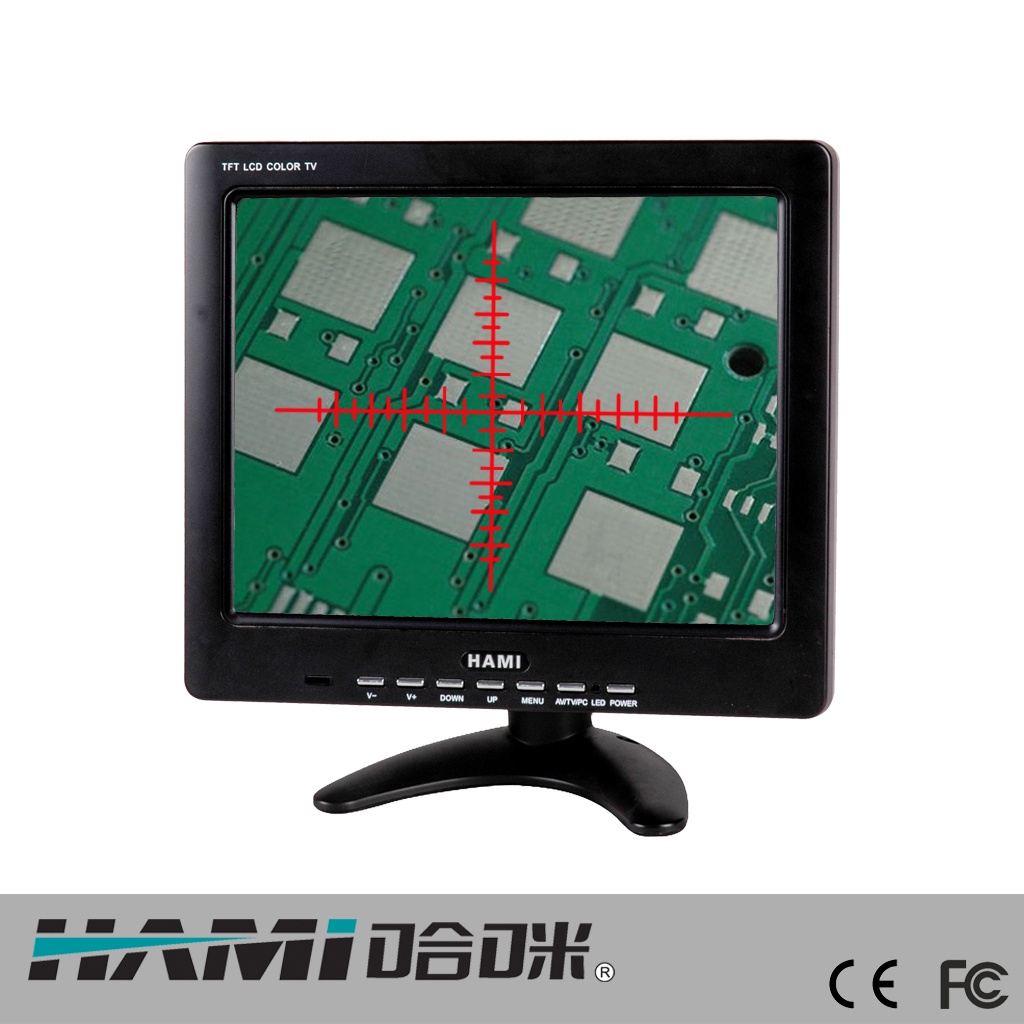

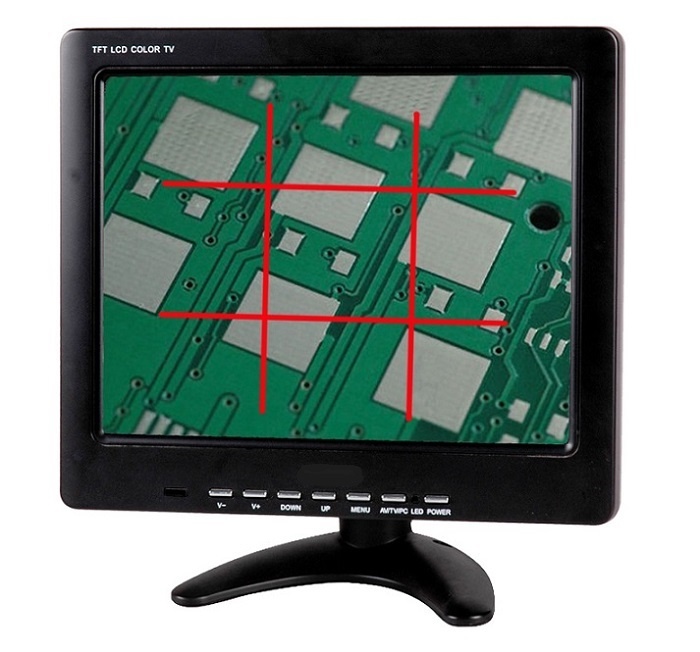

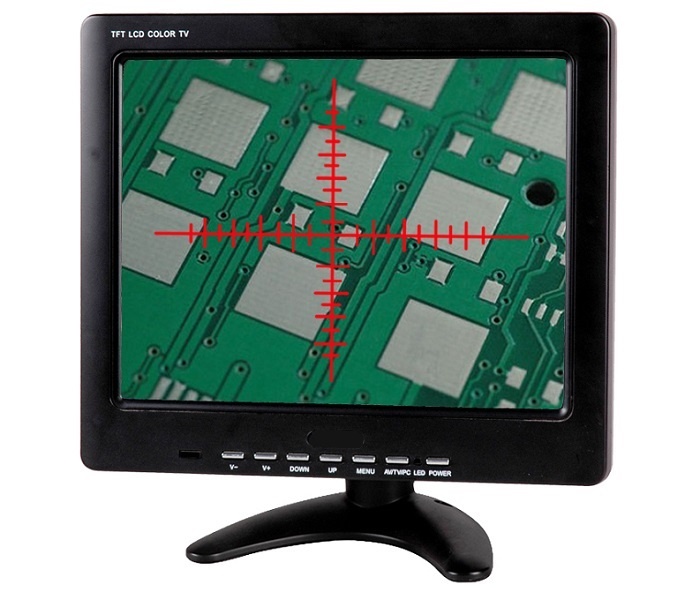

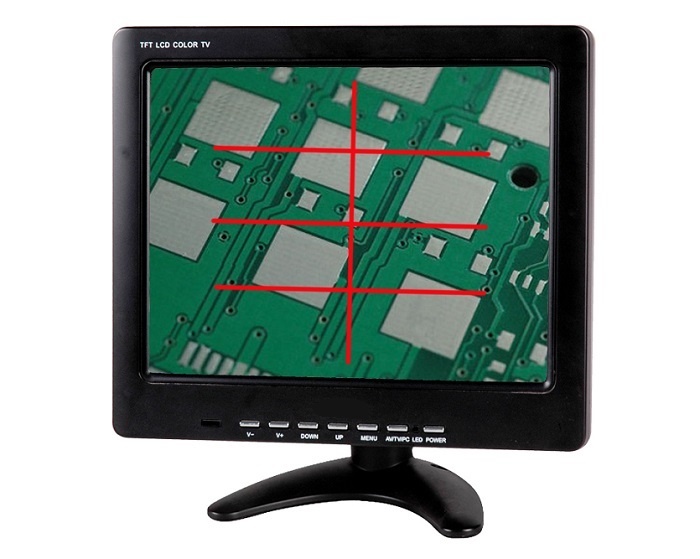

cross line/cross-scale lines/double cross lines/4 horizontal lines

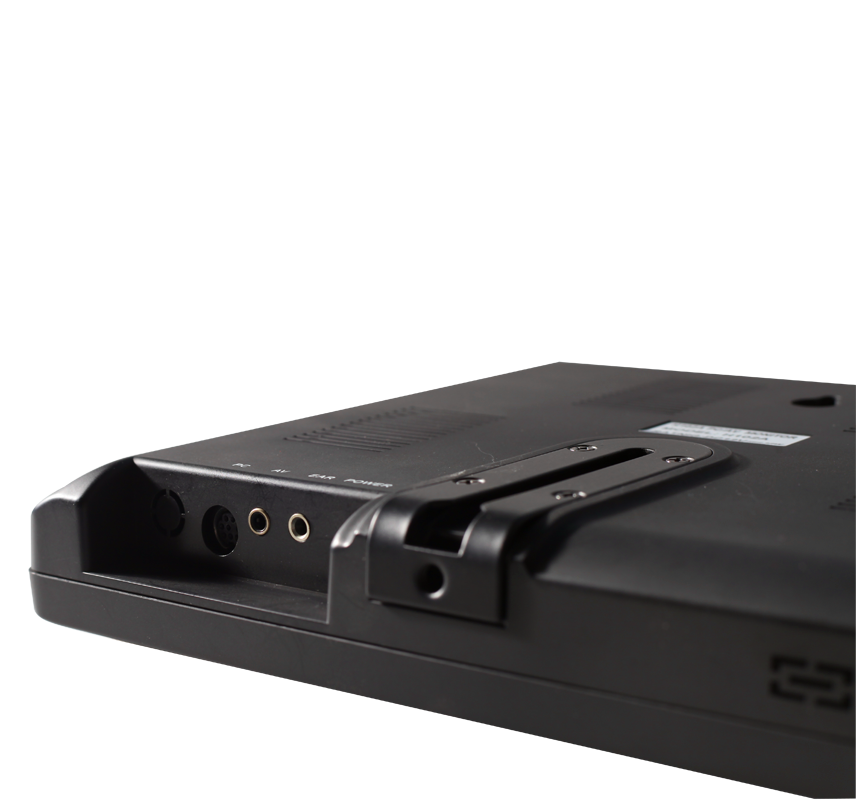

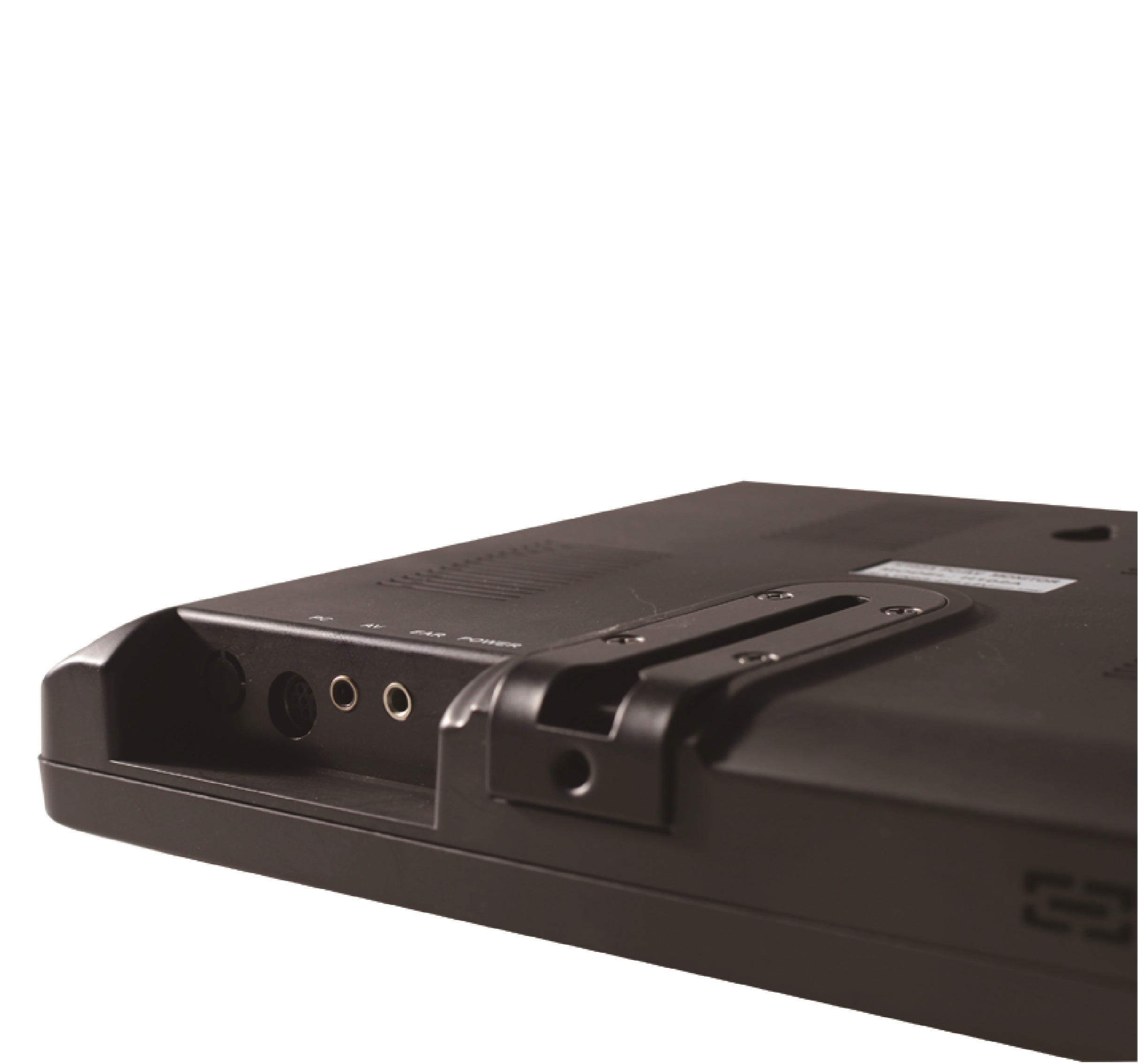

Interface: VGA/AV input

Optional: BNC

Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean

Certification: FCC, CE, ROHS, CCC

Display Parameters

Aspect Ratio 4:3 Contrast Ratio 300:1 Response Time 50 ms
Display Area 202.8×152.1 mm Brightness 350 nits Backlight CCFL
Resolution 800*600 Viewing Angle 140°/150°  Dot pitch

0.2535*0.2535 mm

Screen Color 262 K Panel Type LCD LCD panel brand Sanyo TM100SV-A02-01

Specification

Installation Custom Stand  Frame color Black Product Dimensions

254*210*37 mm

Power input/output 110V to 240V input, 12V output Operating temperature 0~65℃ Humidity temperature 0~90%@40℃ ( non-condensing )
Storage temperature -10~70℃ Box Packing Dimensions 348*259*75 mm
























Accessories:


Manual, Warranty card, stand, VGA cable, Remote controller, Power adapter
