H156A-L 15 inch 1024*768 industrial machine cross lines LCD monitor

H156A-L 15 inch 1024*768 industrial machine cross lines LCD monitor

15" plastic instrument LCD Display,high precision,the screen can display cross line and cross-scale lines with standard VGA/RCA ports,optional BNC and HDMI ports.
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

15" plastic instrument LCD Display

Sharp or Mitsubishi lcd panel

HD control board

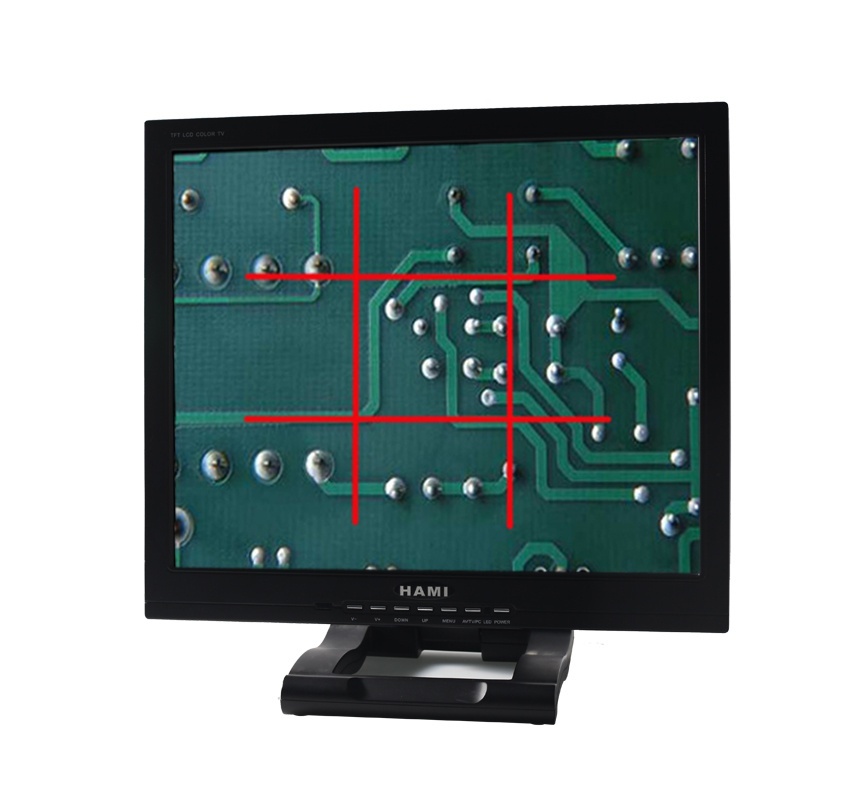

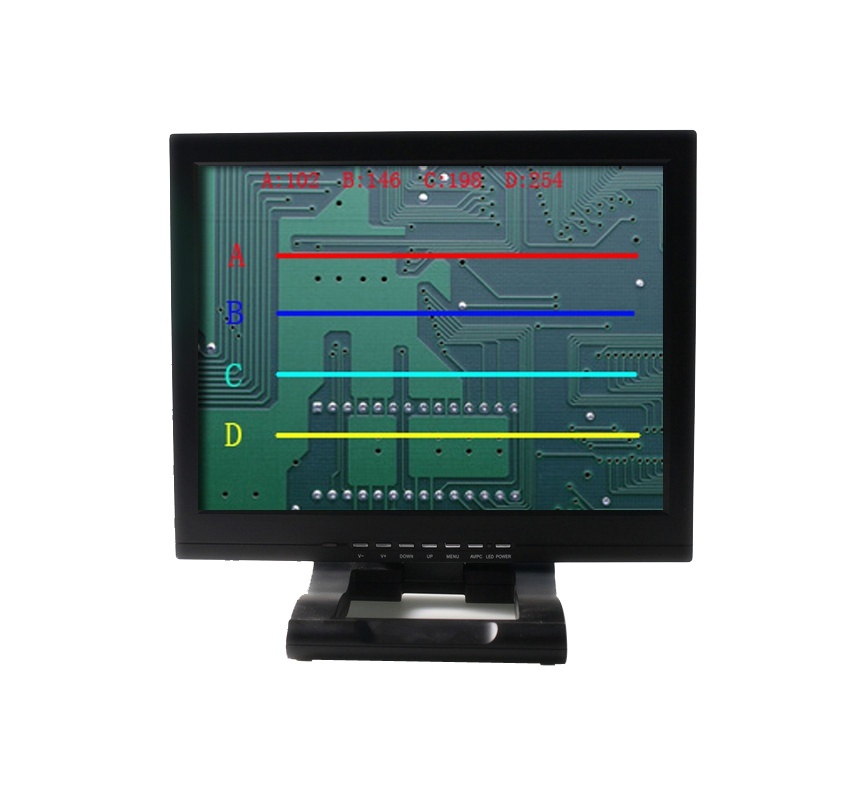

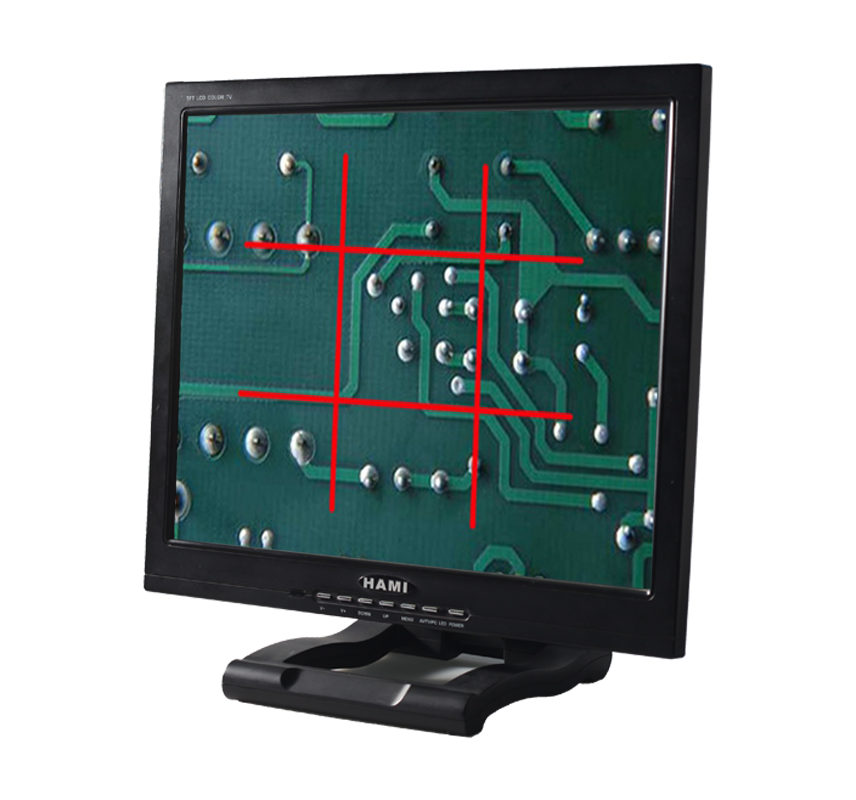

Single cross line/ Double cross lines/Cross-scale lines/4 Horizontal lines

Interface: VGA/AV input

Optional: BNC

Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean

Certification: FCC, CE, ROHS, CCC

Display Parameters

Aspect Ratio 4:3 Contrast Ratio 800:1 Panel Type LCD
Display Area 304.1*228.1 mm Brightness 350 nits Backlight CCFL
Resolution 1024*768 Viewing Angle 150°/150°  LCD brand

Sharp or Mitsubishi

Screen Color 16.2 M Response Time 25 ms

Specification

Installation Custom Stand  Frame color Black Product Dimensions 347*285*40 mm
Power input/output 110V to 240V input, 12V output Operating temperature 0~50℃ Humidity temperature 0~95%@40℃ ( non-condensing )
Storage temperature -25~60℃ Box Packing Dimensions 425*395*128 mm













Accessories:


Manual, Warranty card, stand, AV cable, VGA cable, Remote controller, Power adapter
