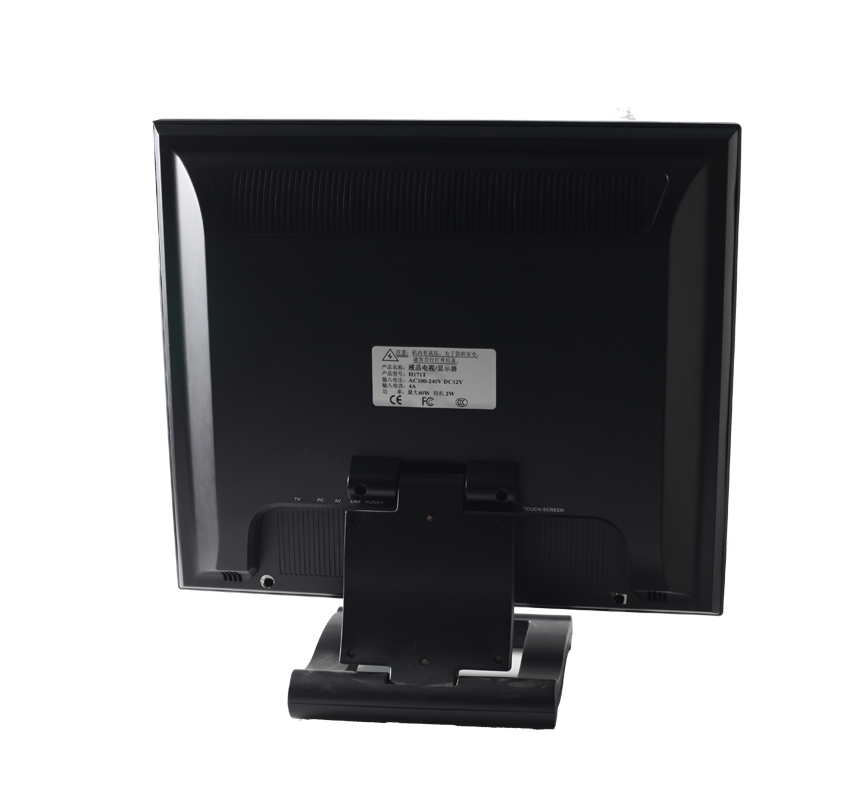

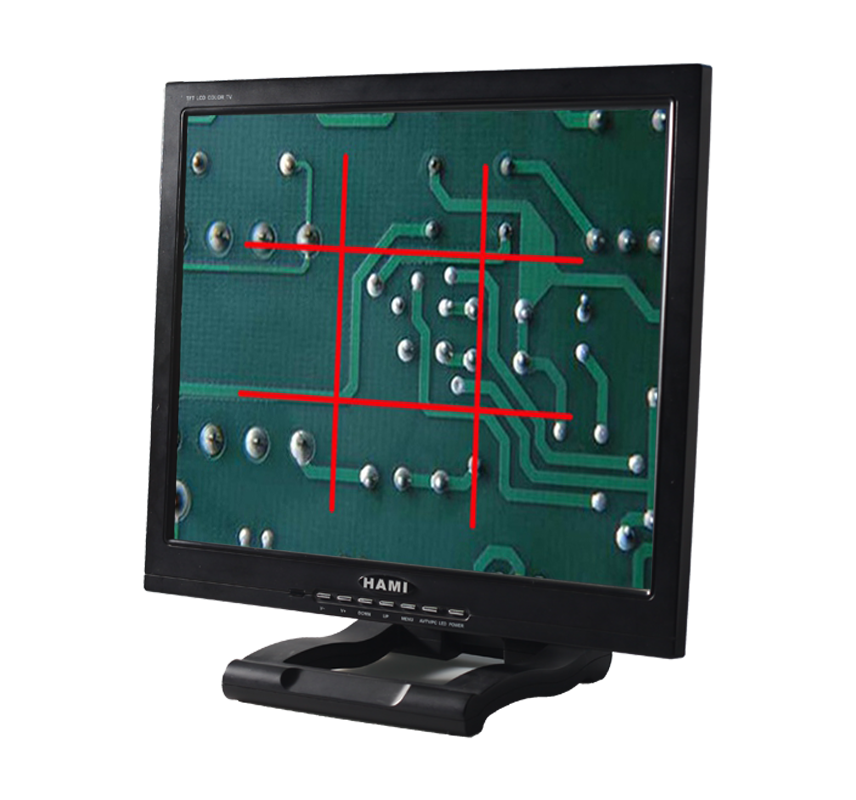

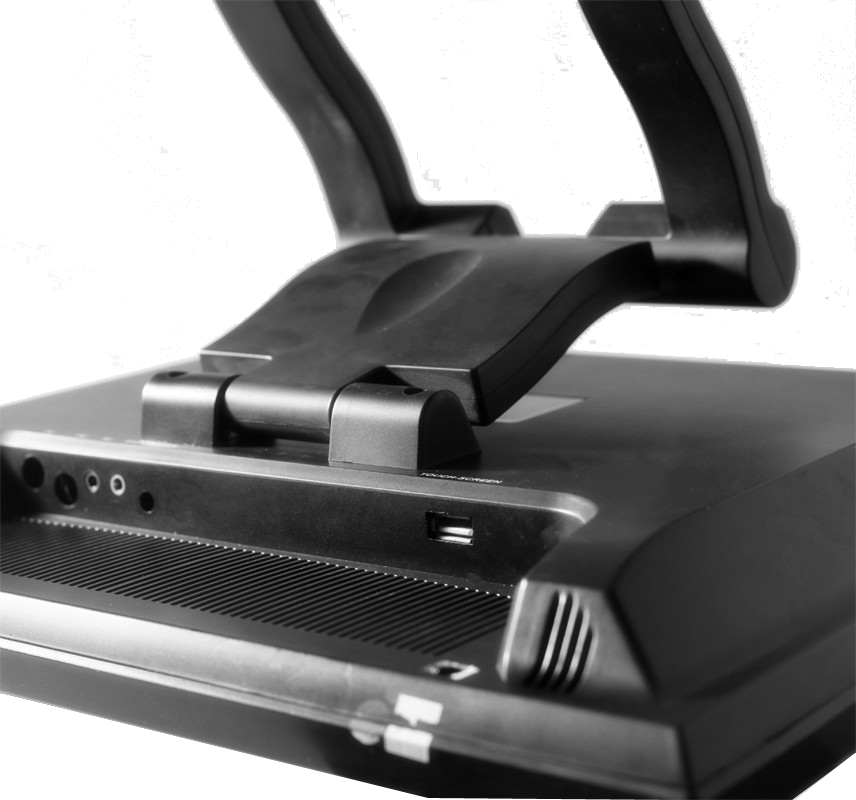

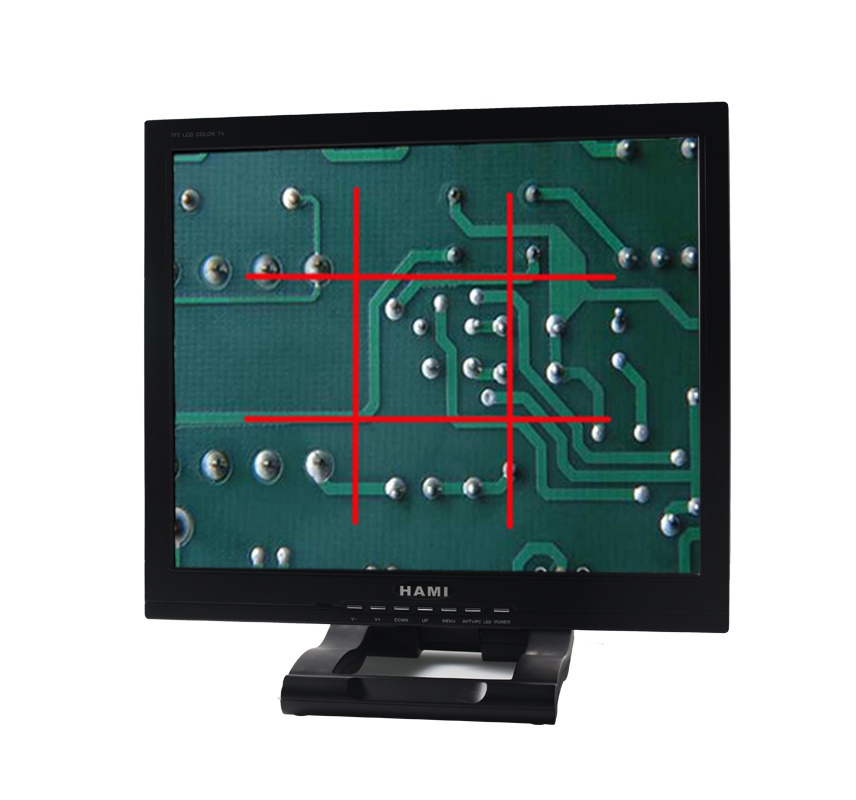

17" plastic instrument LCD Display
1280*1024p
HD control board
Interface: VGA/AV input
Optional: BNC
Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean
Certification: FCC, CE, ROHS,CCC
17" plastic instrument LCD Display
1280*1024p
HD control board
Interface: VGA/AV input
Optional: BNC
Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean
Certification: FCC, CE, ROHS,CCC
Display Parameters |
|||||
Aspect Ratio | 4:3 | Contrast Ratio | 1000:1 | Panel Type | LCD |
Display Area | 337.92*270.33 mm | Brightness | 350 nits | Backlight | CCFL |
Resolution | 1280*1024 | Viewing Angle | 170°/160° | LCD brand |
Sharp |
Screen Color | 16.7 M | Response Time | 5 ms | ||
Specification |
|||||
Installation | Custom Stand | Frame color | Black | Product Dimensions | 347*285*40 mm |
Power input/output | 110V to 240V input, 12V output | Operating temperature | 0~50℃ | Humidity temperature | 5~95%@40℃ ( non-condensing ) |
Storage temperature | -20~60℃ | Box Packing Dimensions | 425*395*128 mm |
Accessories:
Manual, Warranty card, stand, AV cable, VGA cable, Remote controller, Power adapter
