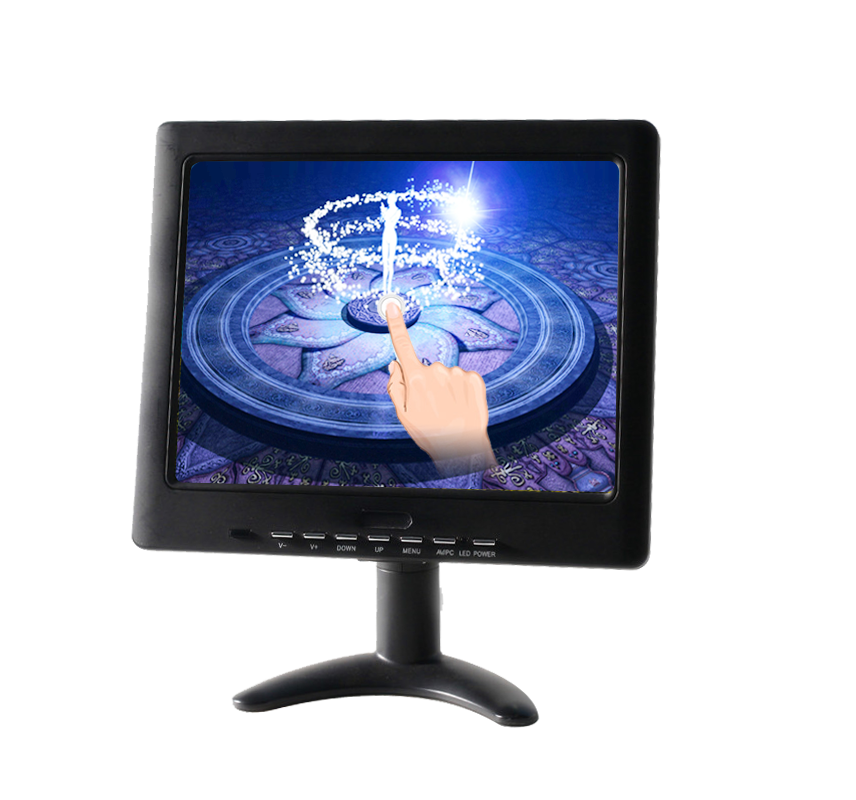

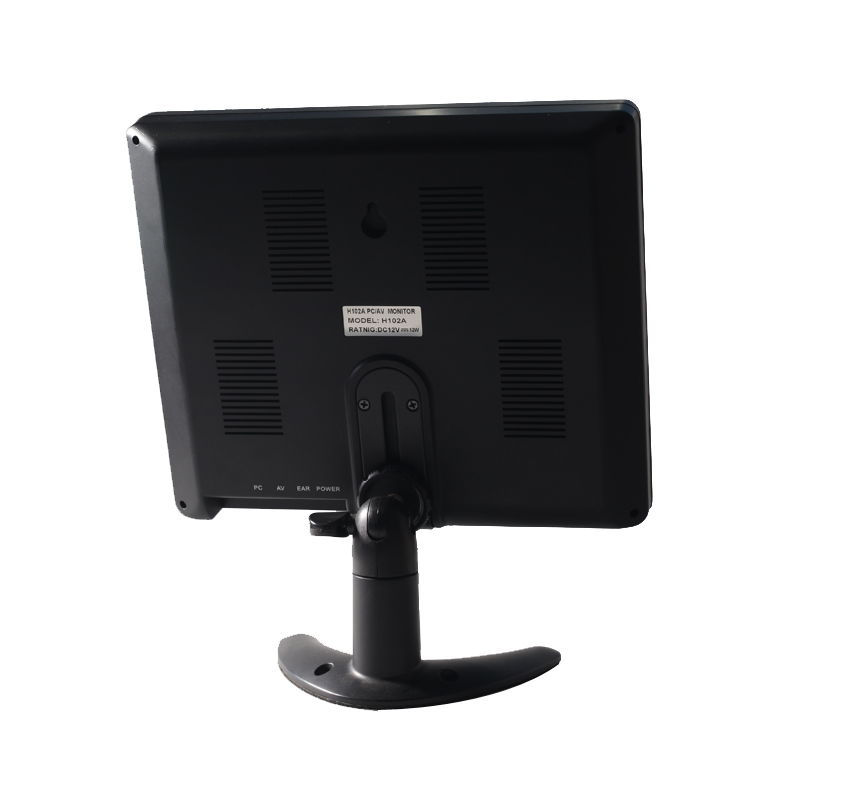

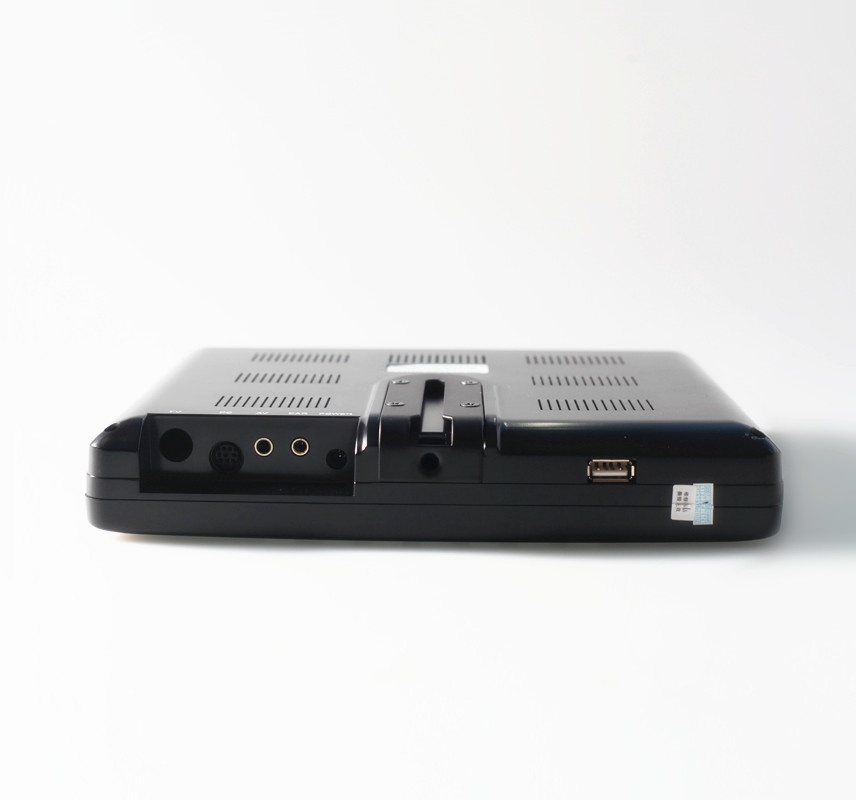

H102A-T
10 inch 4 wire resistive touch monitor
- Model: H102A-T
- Display: 10” TFT High Definition Digital touch monitor (4:3)
- Languages: English, Russian, French, Spanish, German, Italian and Chinese
- Resolution: 800x600 pixels
- Brightness: : 250 cd/squa
- Contrast ratio: 300:1
- Viewing angles: 150°/150°
- Input voltages: 110 to 240V AC
- Output voltage: 12V DC
- Operating temperature: 0 to 50°C
- Humidity temperature: 0-85% at 40°C (non-condensing)
- Storage temperature: -20 to 60°C
- Horizontal frequency: 30~61KHZ
- Field frequency: 60~75KHZ
- Color：262,144colors
- TV System: PAL/NTSC4.43/NTSC3.58/SECAM
- Audio formats：BG/DK/I/M
- Video input: 1.0Vp-p@75ohm
- Audio input: 500mVrms
- Power consumption: (max) 9W
- Stand-by power consumption: <1.0W
- Storage humidity: 5%~95%
- Loudspeaker output: Max.2.0W Output(16Ω)
- Earphone output: Max.10mW Output（3.5φStereo Jack,32Ω）
- Response time: ≤16 ms
- Mainly used in information checking terminal, order cashier terminal, video remote music terminal, electronic storage operation terminal, financial trade terminal, exhibition display, on-board or similar fields.
