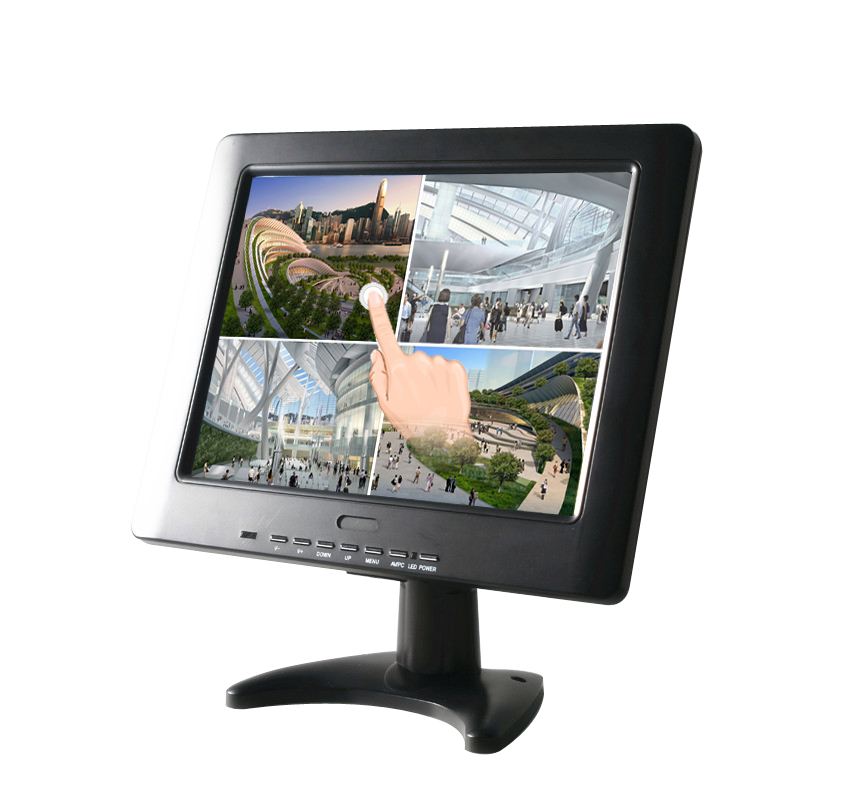

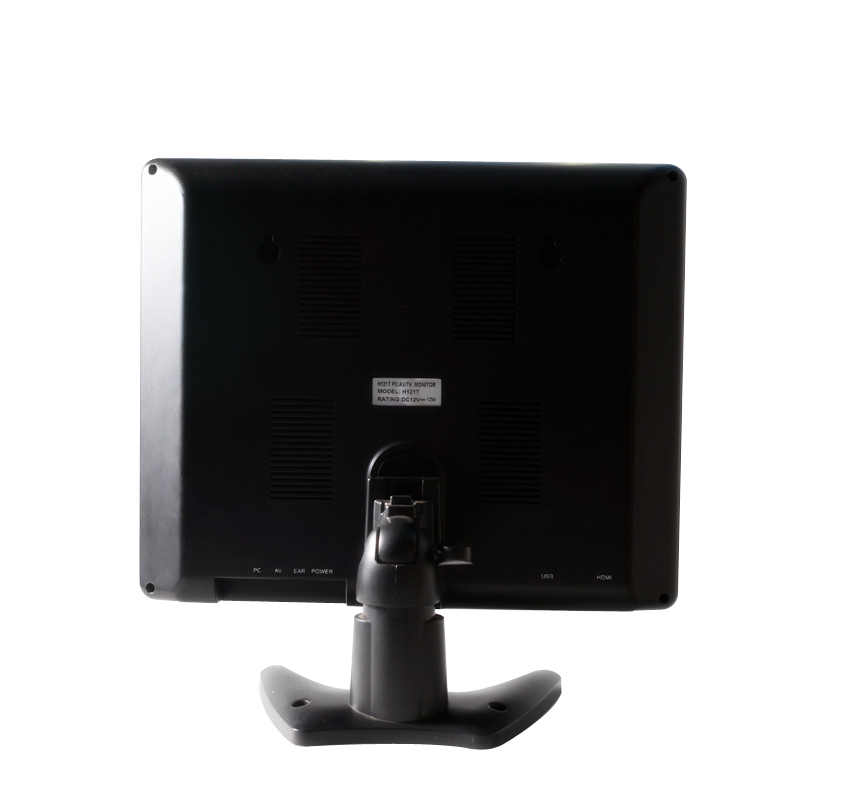

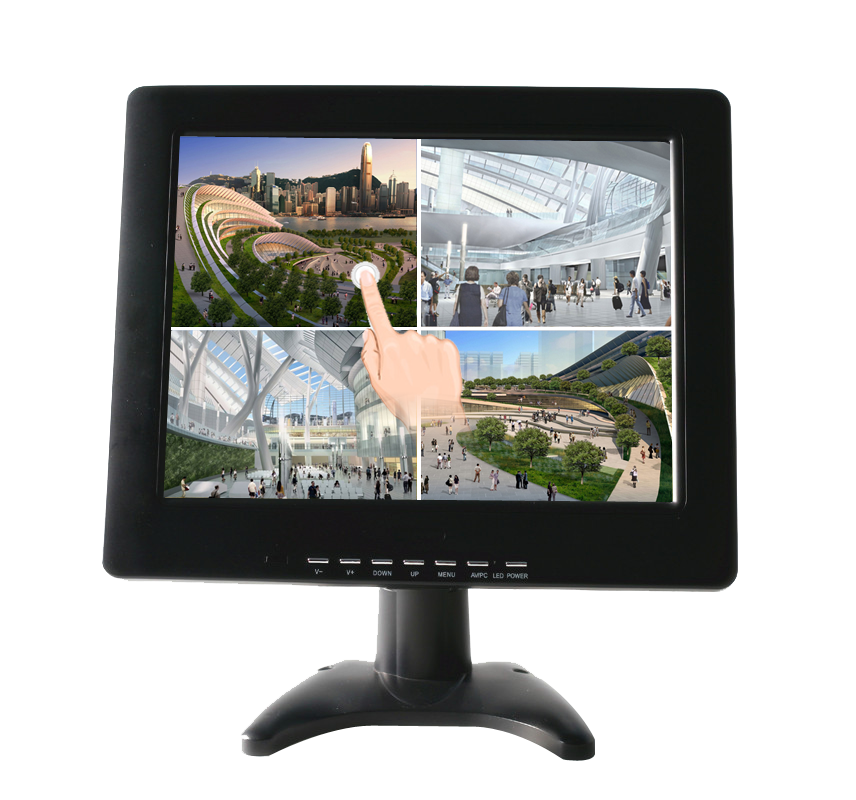

12.1" plastic touch screen TFT LCD Display, it for POS systems and terminals.With VGA and USB ports from direct factory with affordable prices.

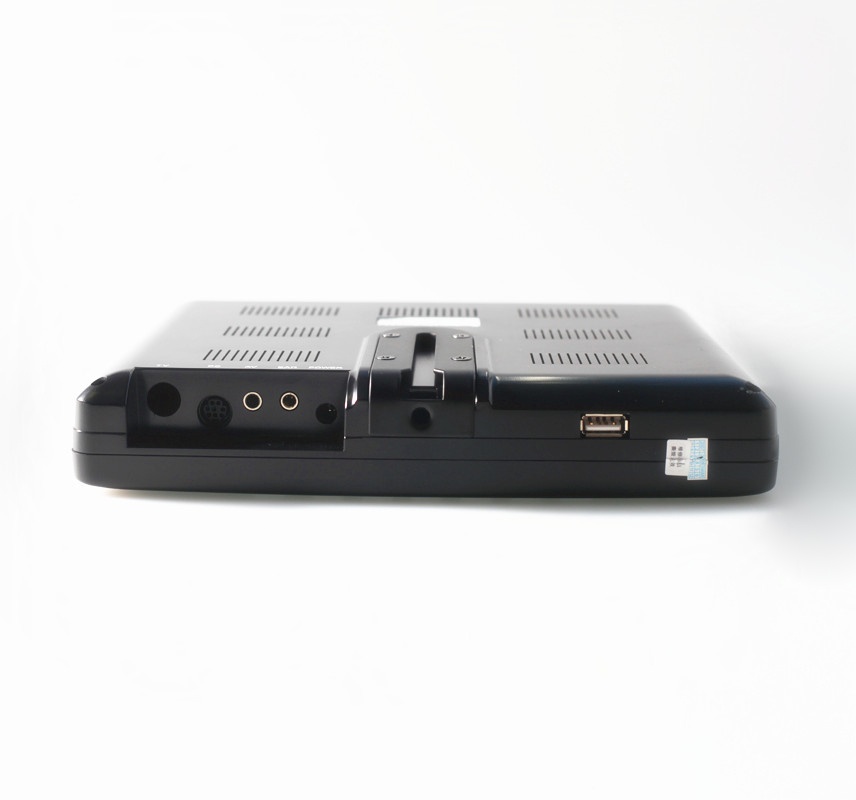

Interface: VGA/AV interface, USB port for driver
Optional: BNC input
Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean
Certification: FCC, CE, ROHS,CCC
Display Parameters |
|||||
| Aspect Ratio |
4:3 |
Contrast Ratio | 450:1 | Panel Type | LCD |
| Display Area | 246×184.5mm | Brightness | 330cd/㎡ | Backlight | CCFL |
| Resolution | 800×600 | Viewing Angle | 140°/110° |
|
|
| Screen Color | 12M | Response Time | 45ms | ||
Specification |
|||||
| Installation | Stand | Frame color | Black | Product Dimensions | 309×254×49mm |
| Power input/output | 110V to 240V input, 12V output | Operating temperature | -10~75℃ | Humidity temperature | 0~95%@40℃ ( non-condensing ) |
| Storage temperature | -35~75℃ | Box Packing Dimensions |
383×325×78mm |
||
| Touch Type | 4-wire resistive(5-wire optional) | Touch Interface | USB/RS232 | ||
