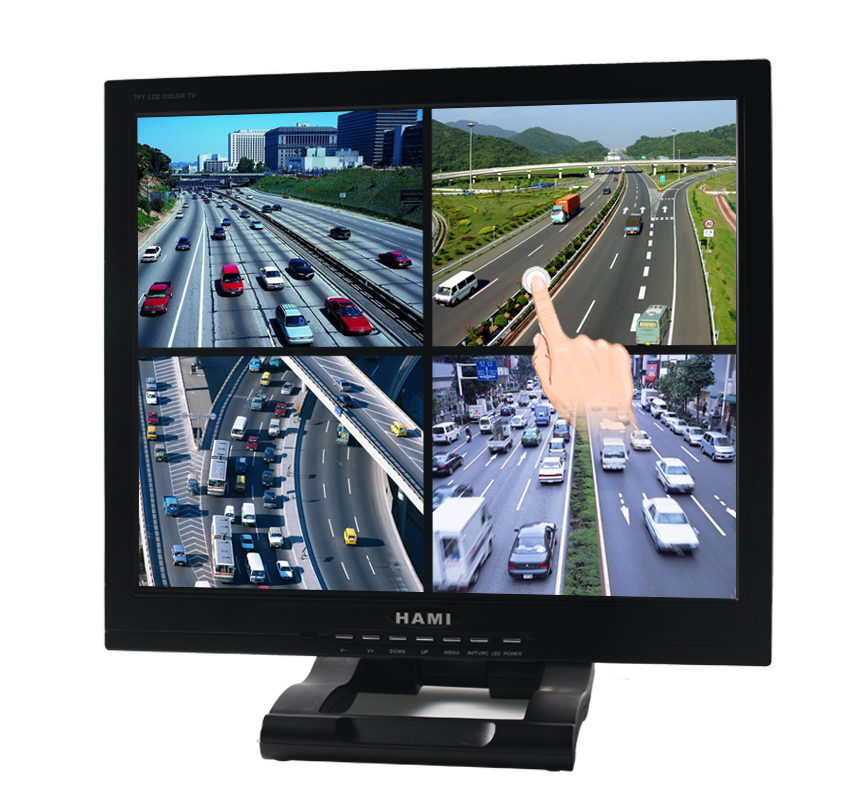

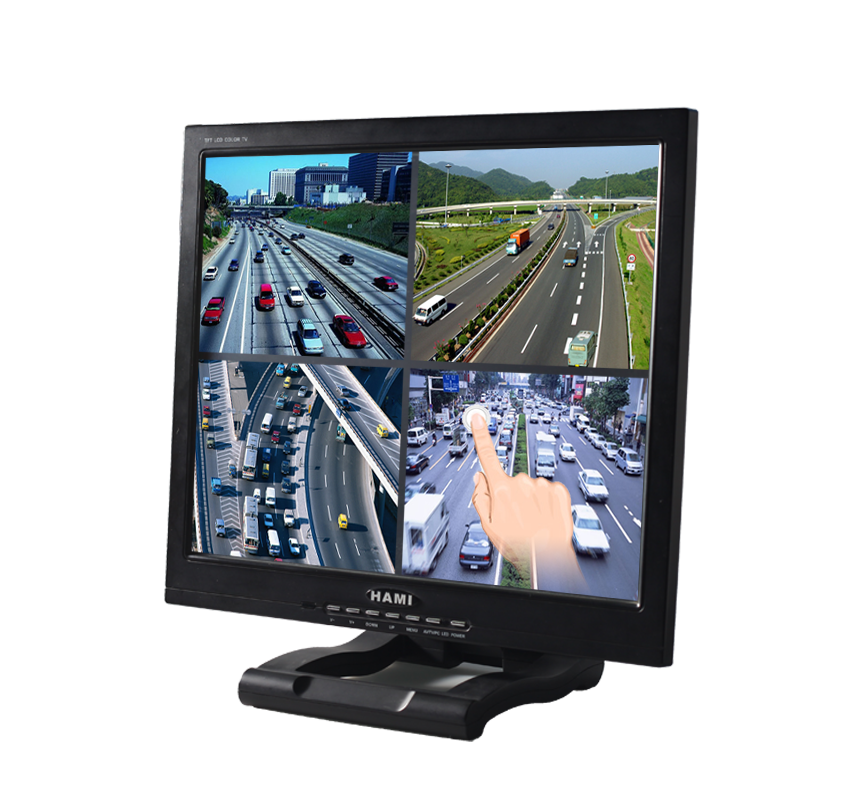

H171-T 17-inch plastic TFT  touch screen LCD monitor.

H171-T 17-inch plastic TFT touch screen LCD monitor.

17" plastic touch screen TFT LCD Display,,8 languages.with VGA and USB ports from direct factory at cheap prices.
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

17" plastic touch screen TFT LCD Display,,8 languages.with VGA and USB ports from direct factory at cheap prices.

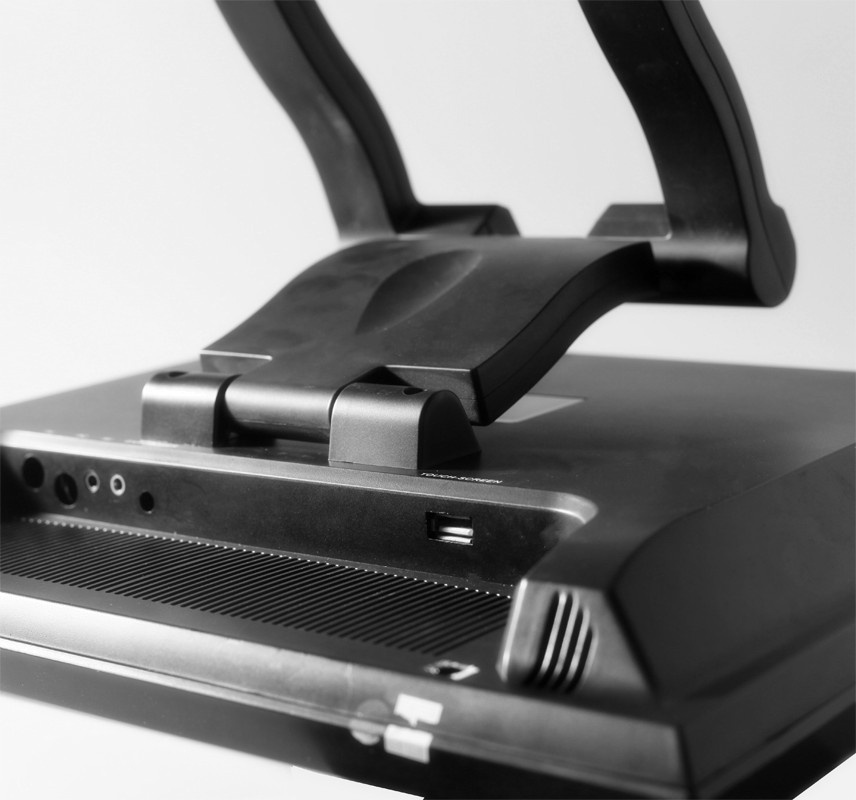

Interface: VGA/AV interface, USB port for driver

Optional: BNC input

Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean

Certification: FCC, CE, ROHS,CCC

Display Parameters

Aspect Ratio

4:3

Contrast Ratio 1000:1 Panel Type LCD
Display Area 337.92×270.33mm Brightness 250cd/㎡ Backlight CCFL
Resolution 1280×1024 Viewing Angle 170°/160°


Screen Color 16.7M Response Time 5ms

Specification

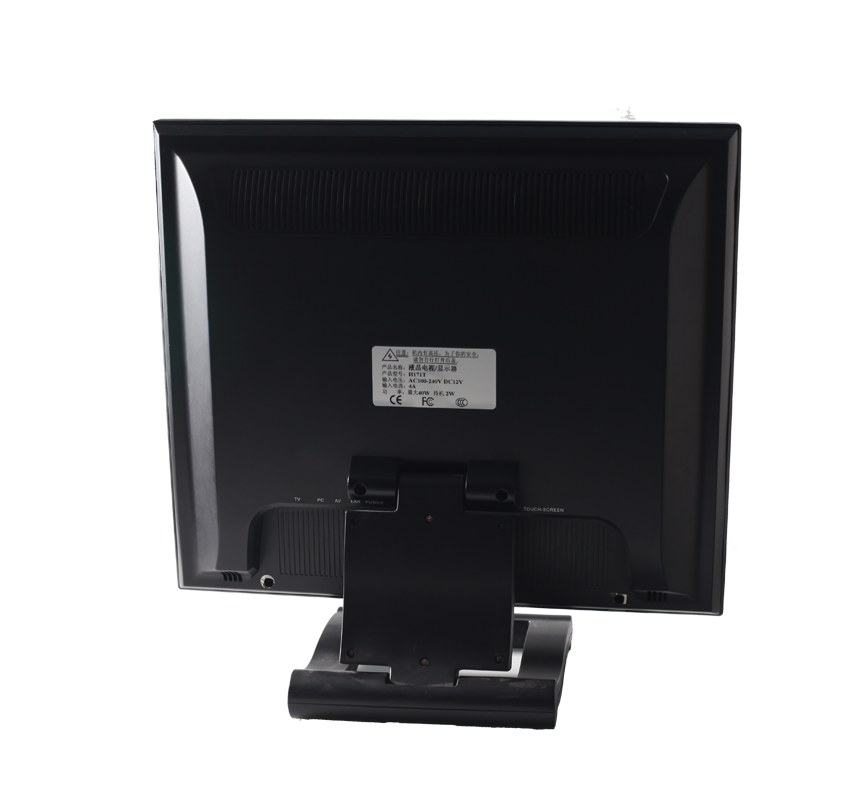

Installation Stand  Frame color Black Product Dimensions

379×330×48mm

Power input/output 110V to 240V input, 12V output Operating temperature 0~50℃ Humidity temperature 5~95%@40℃ ( non-condensing )
Storage temperature

-25~60℃

Box Packing Dimensions

440×142×388mm


Touch Type 4-wire resistive(5-wire optional) Touch Interface USB/RS232
Accessories: Specification, Warranty card, stand, AV cable, Remote controller, Power adapter
