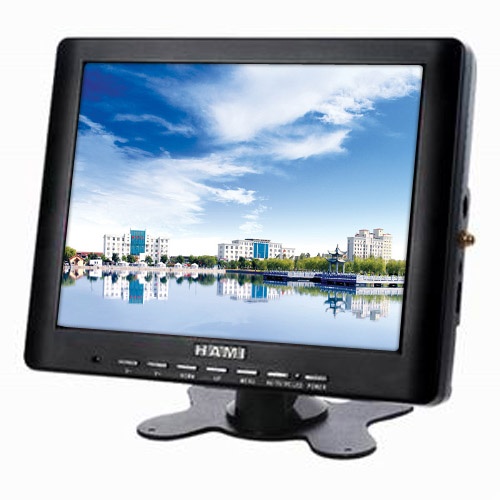

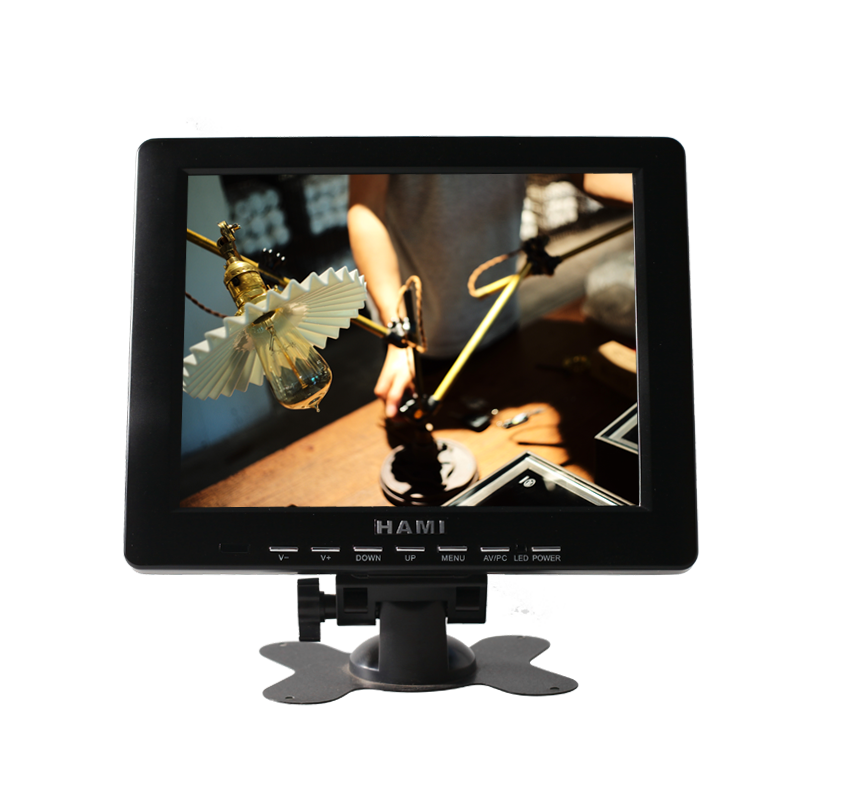

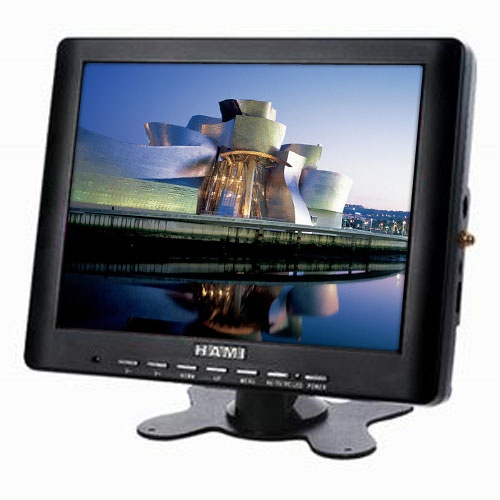

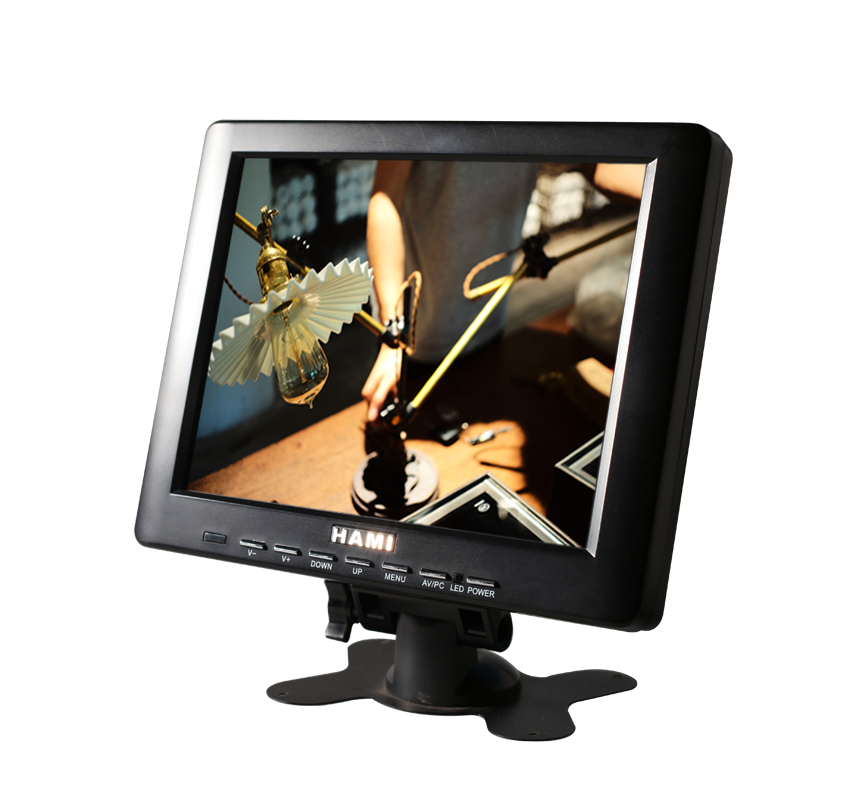

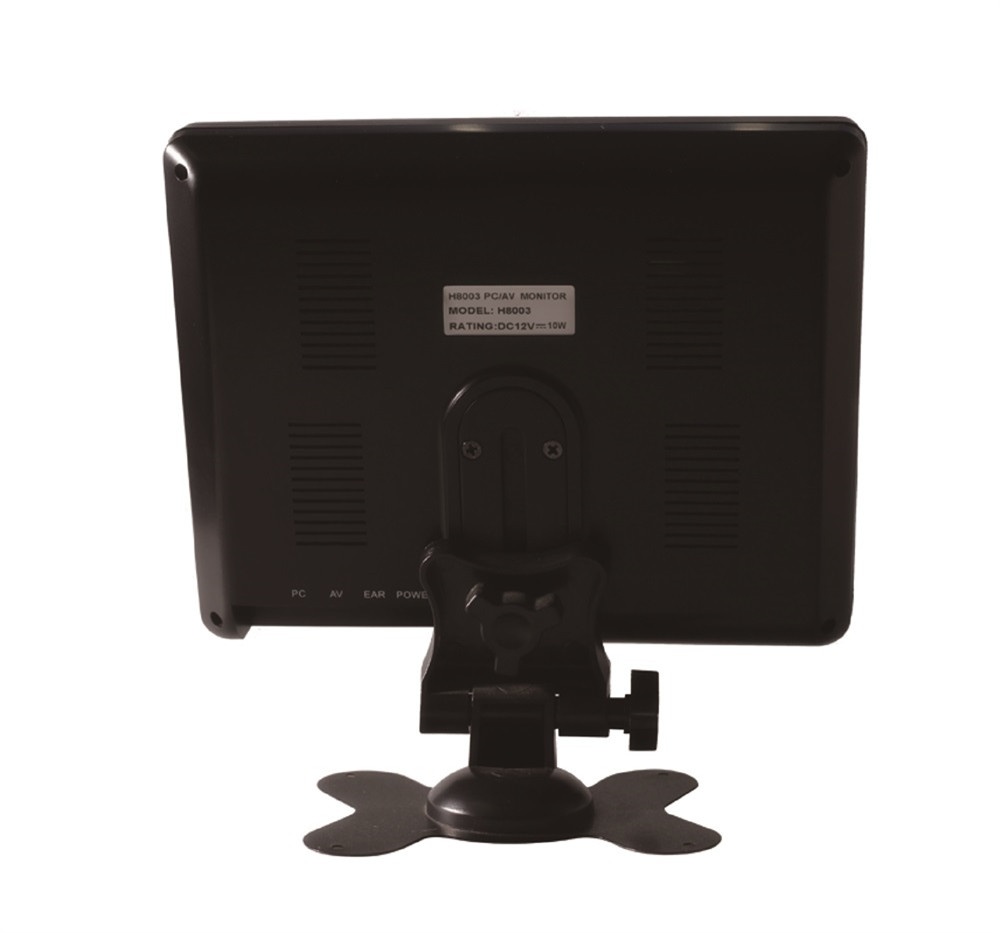

H8002 8 inch 800*600 4:3 industrial plastic LCD monitor

H8002 8 inch 800*600 4:3 industrial plastic LCD monitor

8 inch 800*600 pixel plastic TFT LCD Display used in CCTV monitoring systems
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

8" plastic TFT LCD Display;

Resolution: 800*600 pixel;

Brightness: 250 nits

Contrast ratio: 300:1;

Viewing angles: 150°/150°

Screen brand: SHARP OR SANYO

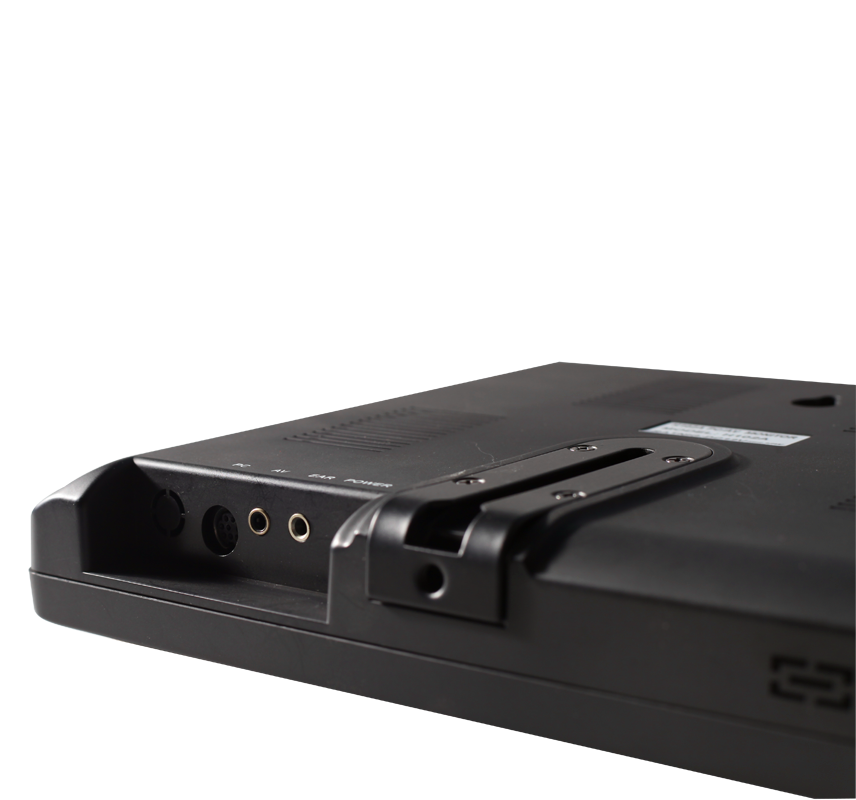

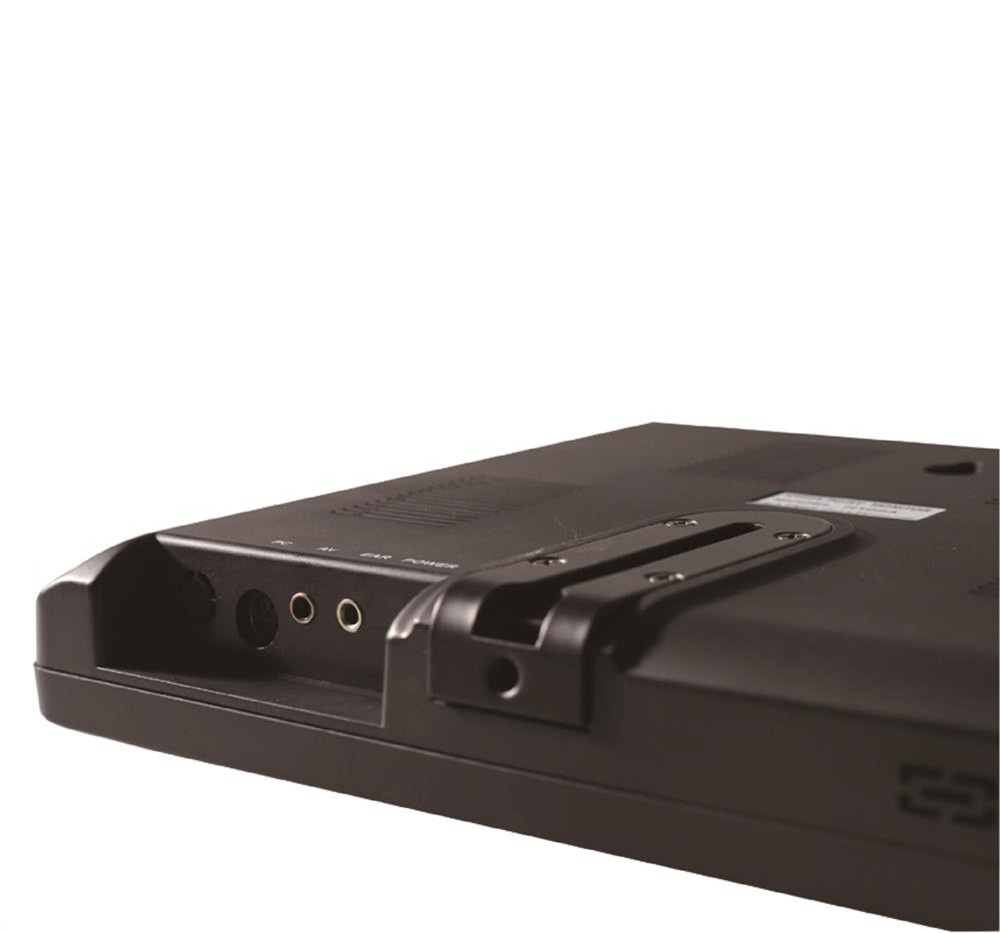

Interface: VGA/AV input RCA output

Optional: BNC/HDMI/TV

Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean

Certification: FCC, CE, ROHS, CCC

Added function optional: Vertical Flipped function

Display Parameters

Aspect Ratio 4:3 Contrast Ratio 300:1 Response Time 50ms
Display Area 163.2×122.4mm Brightness 250 nits Backlight CCFL
Resolution 800×600 Viewing Angle 150°/150°

Screen Color 262K Panel Type LCD

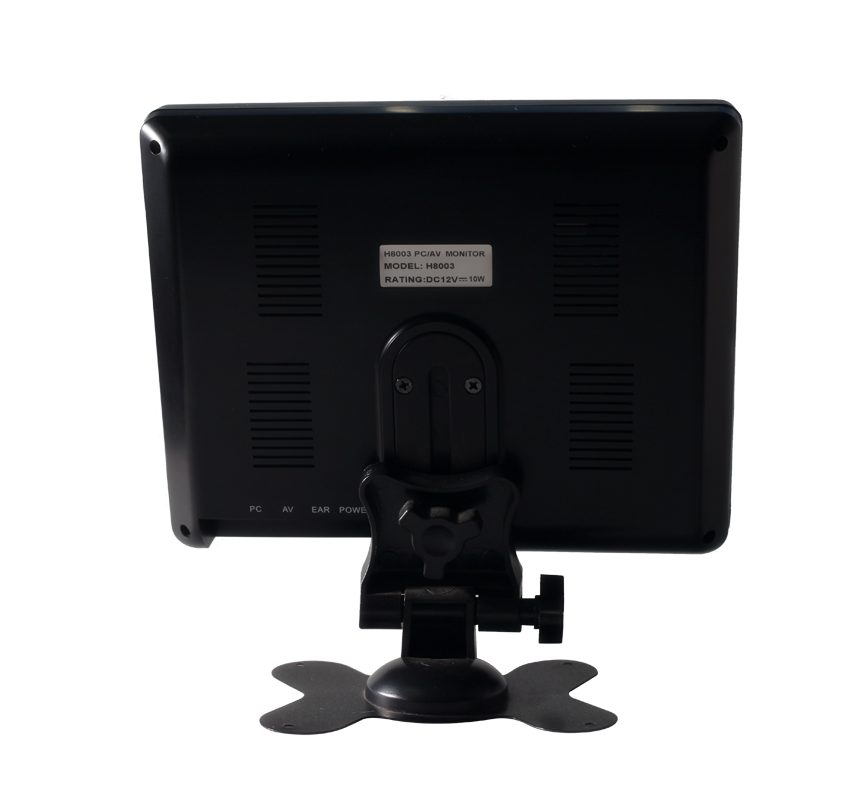

Installation Custom Stand  Frame color Black Product Dimensions 206*161*37mm
Power input/output 110V to 240V input, 12V output Operating temperature 0~50℃ Humidity temperature 0~85%@40℃ ( non-condensing )
Storage temperature -20~60℃ Box Packing Dimensions 305*215*75mm

Accessories: Manuel, Warranty card, stand, AV cable,VGA cable, Remote controller and  Power adapter.
