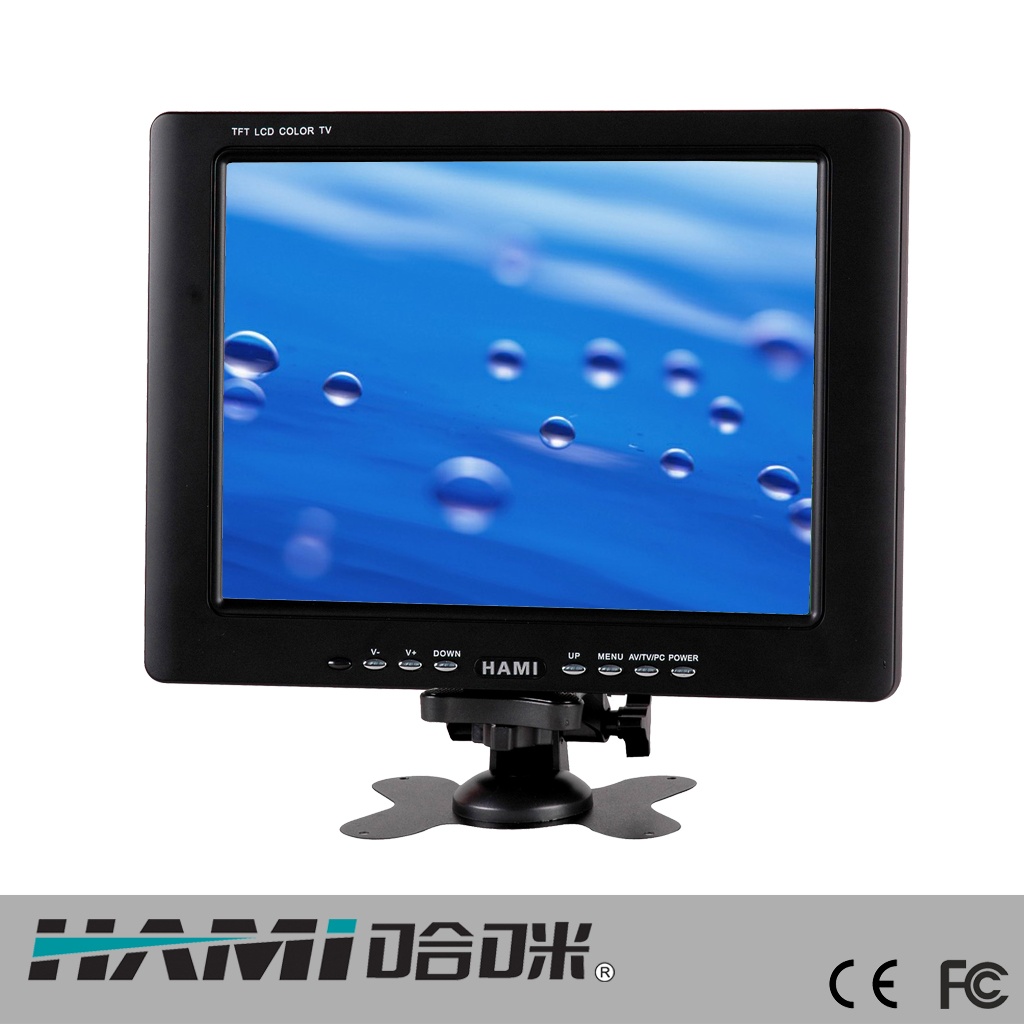

H8006 8 inch 640*480 LCD monitor with mirror function

H8006 8 inch 640*480 LCD monitor with mirror function

8" 640*480 Digital LCD Display 4:3 display ratio with standard VGA and AV ports, optional BNC and HDMI ports, can be used for CCTV security cameras and industrial machines.Built-in mirror function
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

8" plastic TFT LCD Display;

Resolution: 640*480 pixel;

Brightness: 380 nits

Contrast ratio: 250:1;

Viewing angles: 130°/120°

Screen brand: SHARP OR SANYO

Mirror function: UP and DOWN, LEFT and RIGHT flipped

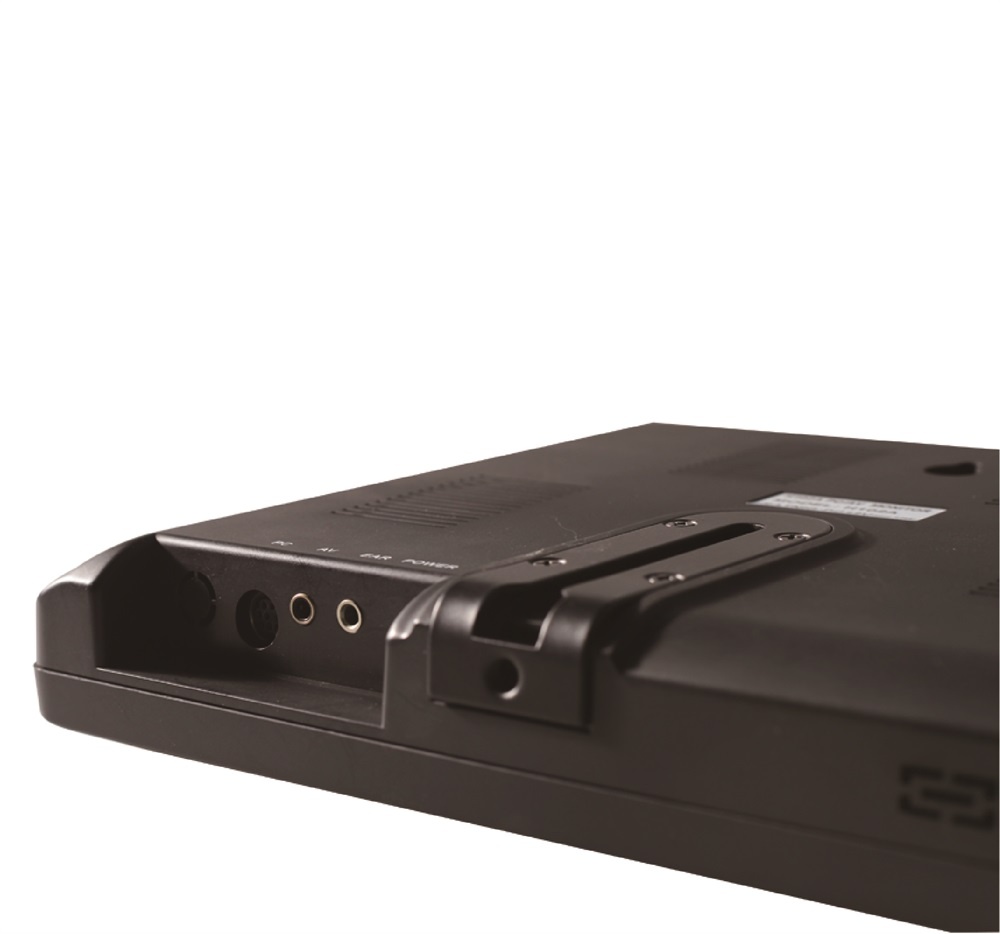

Interface: VGA/AV input RCA output

Optional: BNC/HDMI

Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean

Certification: FCC, CE, ROHS, CCC

Added function optional: Vertical Flipped function

Display Parameters

Aspect Ratio 4:3 Contrast Ratio 250:1 Response Time 50ms
Display Area 163.2×122.4mm Brightness 380 nits Backlight CCFL
Resolution 640×480 Viewing Angle 130°/120°

Screen Color 262K Panel Type LCD


Installation Custom Stand  Frame color Black Product Dimensions 206*161*37 mm
Power input/output 110V to 240V input, 12V output Operating temperature 0~50℃ Humidity temperature 0~85%@40℃ ( non-condensing )
Storage temperature -20~60℃ Box Packing Dimensions 305*215*75 mm Carton Box Dimensions  45*31.5*39.2 cm (10 pcs/ctn)


Warranty card, stand, AV cable, Remote controller, Power adapter and manual.
