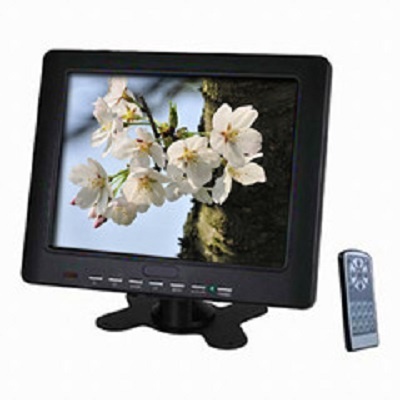

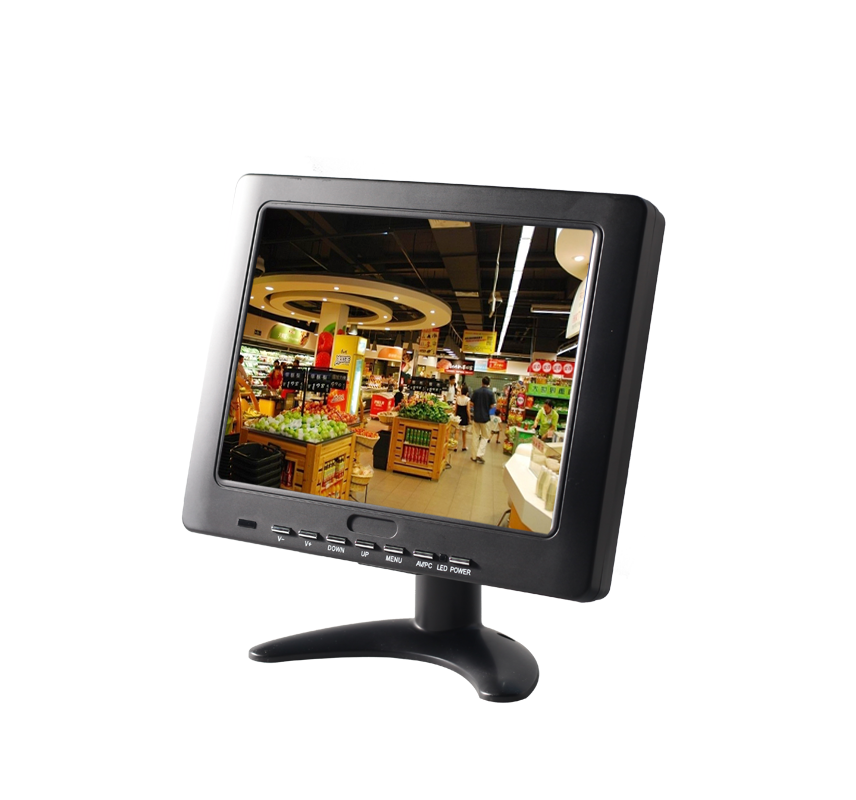

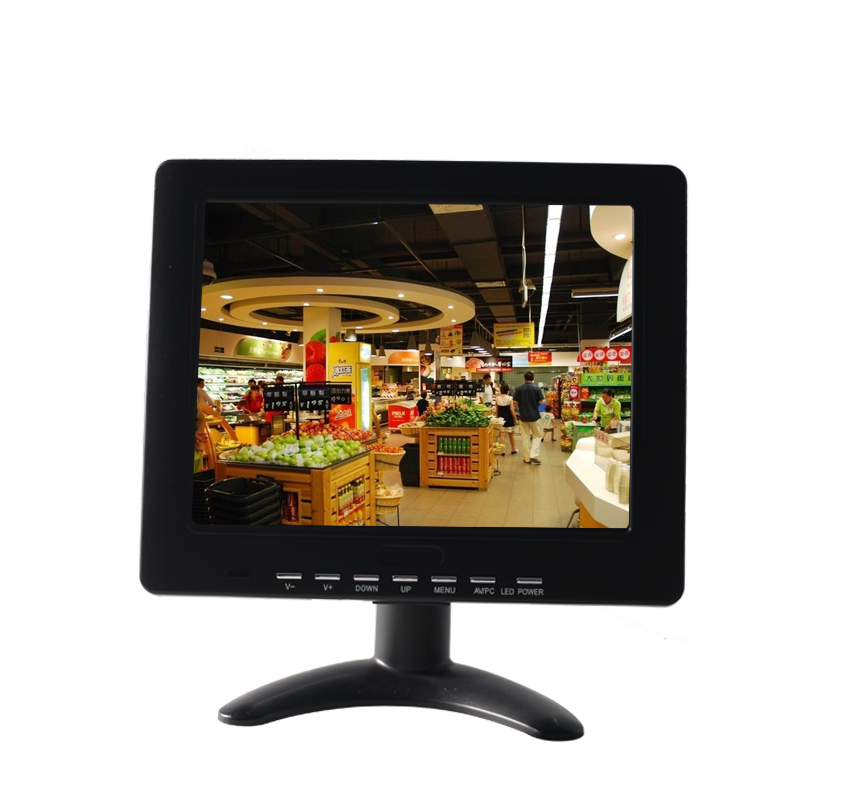

H84A 8.4 inch plastic LCD monitor with VGA and AV

H84A 8.4 inch plastic LCD monitor with VGA and AV

8.4" 800*600 plastic TFT LCD Display and monitor display, can be used for CCTV security cameras and industrial machines.
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

8.4" plastic TFT LCD Display;

Resolution: 800*600 pixel;

Brightness: 350 nits

Contrast ratio: 350:1;

Viewing angles: 140°/120°

Screen brand: TOSHIBA

Mirror function optional: UP and DOWN, LEFT and RIGHT flipped

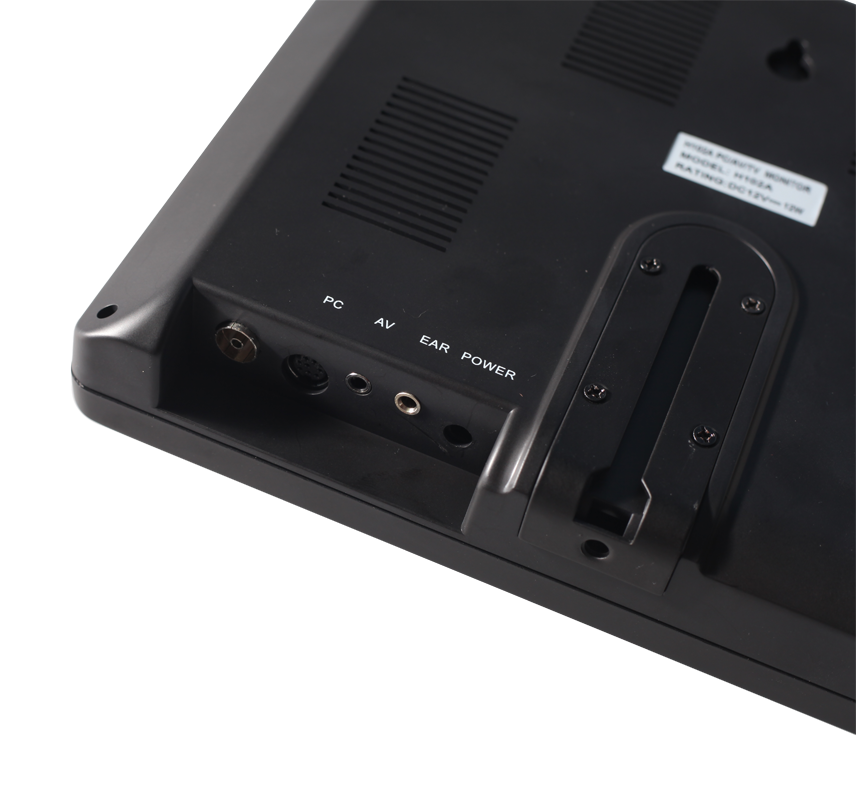

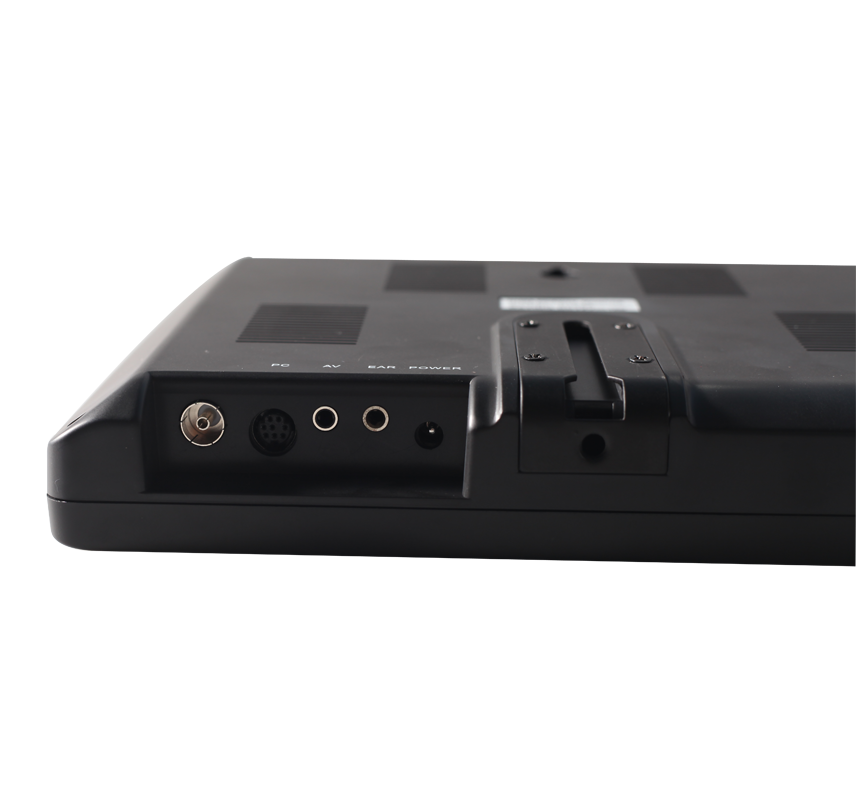

Interface: VGA/AV input RCA output

Optional: BNC/HDMI/TV

Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean

Certification: FCC, CE, ROHS, CCC

Added function optional: Vertical Flipped function

Display Parameters

Aspect Ratio

4:3

Contrast Ratio 350:1 Panel Type LCD
Display Area 170.4×127.8mm Brightness 350 nits Backlight CCFL
Resolution 800×600 Viewing Angle 140°/120°


Screen Color

262K

Response Time 35ms

Specification

Installation Custom Stand  Frame color Black Product Dimensions 20.6×16.1×3.7mm
Power input/output 110V to 240V input, 12V output Operating temperature -20~70℃ Humidity temperature 5~95%@40℃ ( non-condensing )



Accessories: Specification, Warranty card, stand, AV cable, Remote controller, Power adapter
