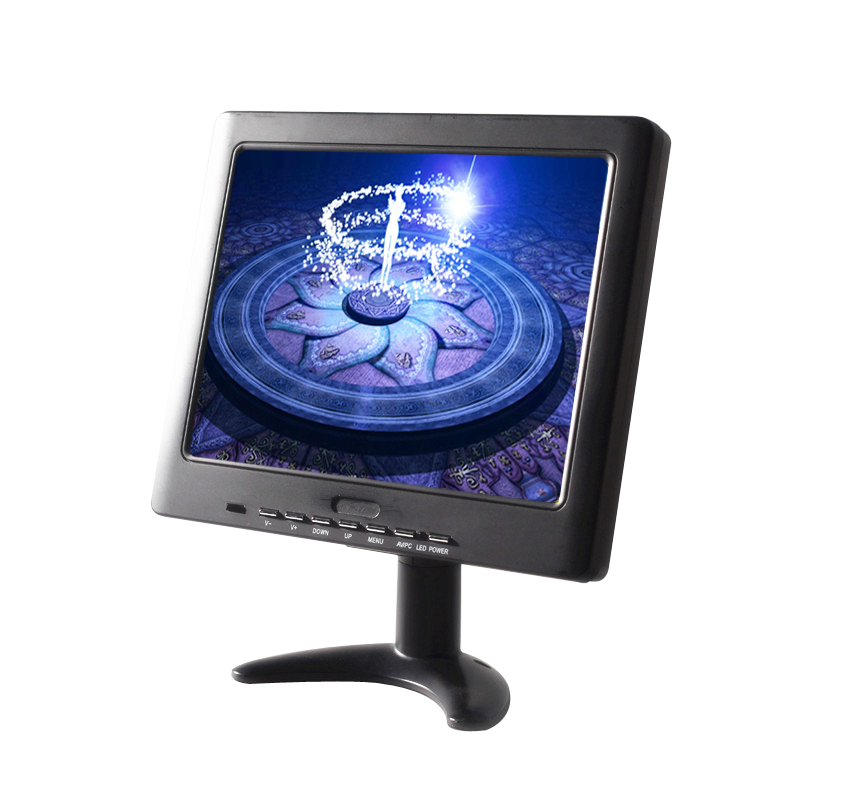

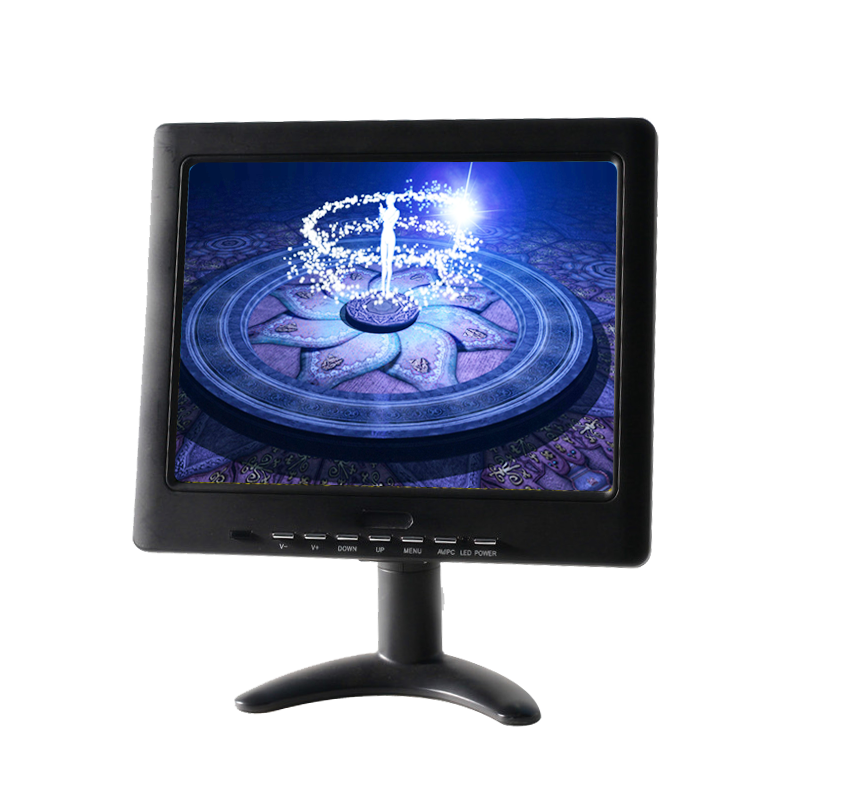

H102B 10 inch plastic LCD monitor for security and industry

H102B 10 inch plastic LCD monitor for security and industry

10" plastic TFT LCD Display, 800x600 high resolution screen,both for security camera and industrial usage.
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

10" plastic TFT LCD Display, 800x600  high resolution screen,both for security camera and industrial usage.

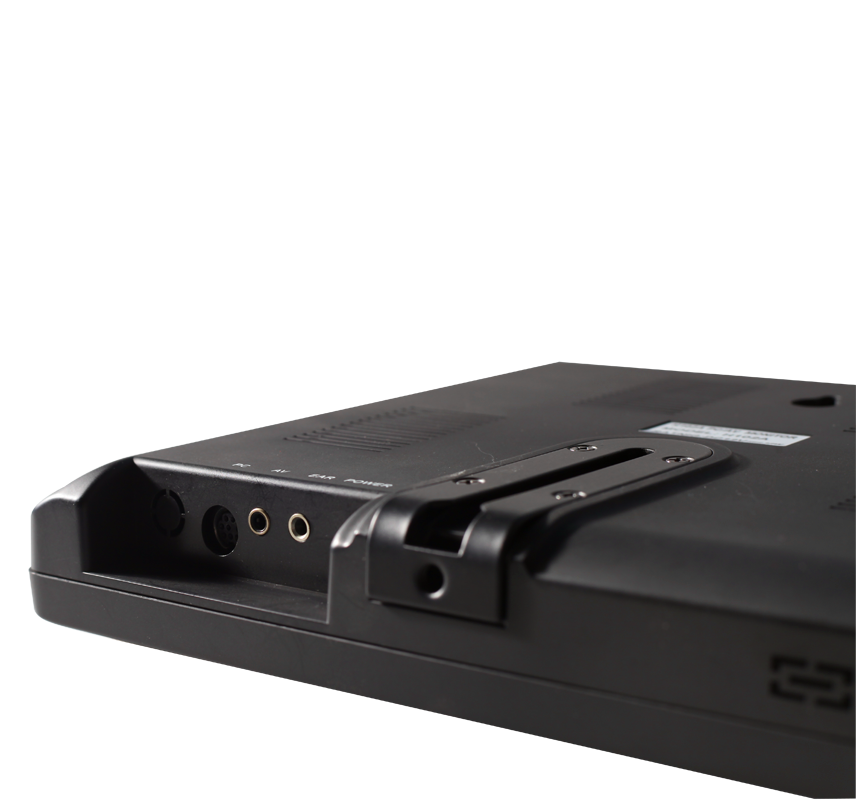

Interface: VGA/AV input RCA output

Optional: BNC/TV

Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean

Certification: FCC, CE, ROHS,CCC

Display Parameters

Aspect Ratio

4:3

Contrast Ratio 250:1 Panel Type LCD
Display Area 202.8×152.1mm Brightness 300cd/㎡ Backlight CCFL
Resolution 800×600 Viewing Angle 140°/150°


Screen Color

262K

Response Time 50ms

Specification

Installation Stand  Frame color Black Product Dimensions 254×210×37(mm)
Power input/output 110V to 240V input, 12V output Operating temperature 0~65℃ Humidity temperature 0~90%@40℃ ( non-condensing )
Storage temperature -10~70℃ Box Packing Dimensions

348×259×75(mm)


Accessories: Specification, Warranty card, stand, AV cable, Remote controller, Power adapter
