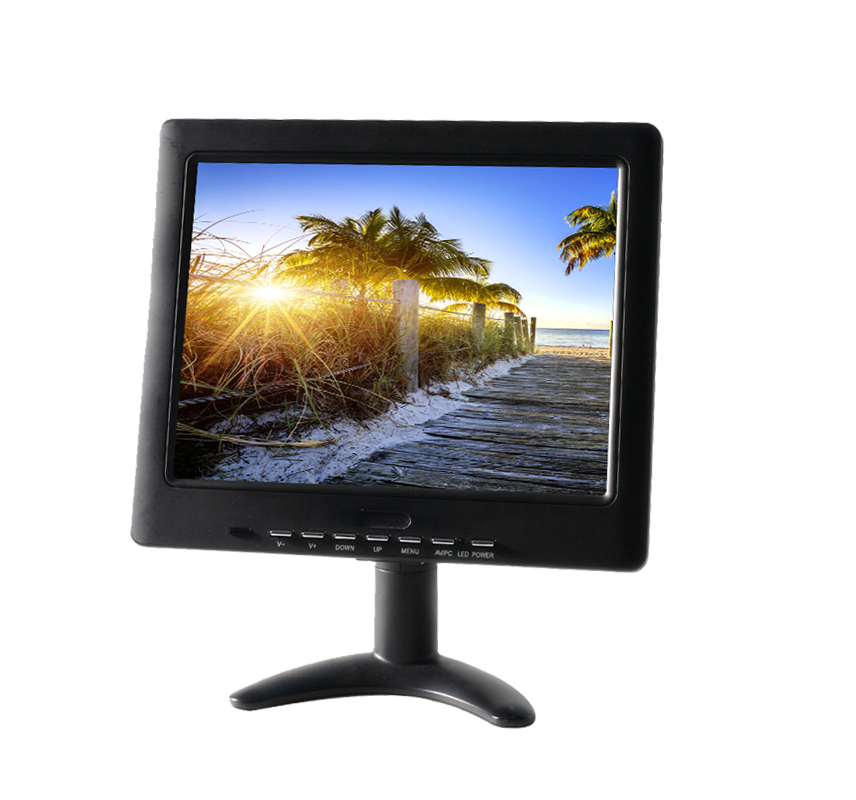

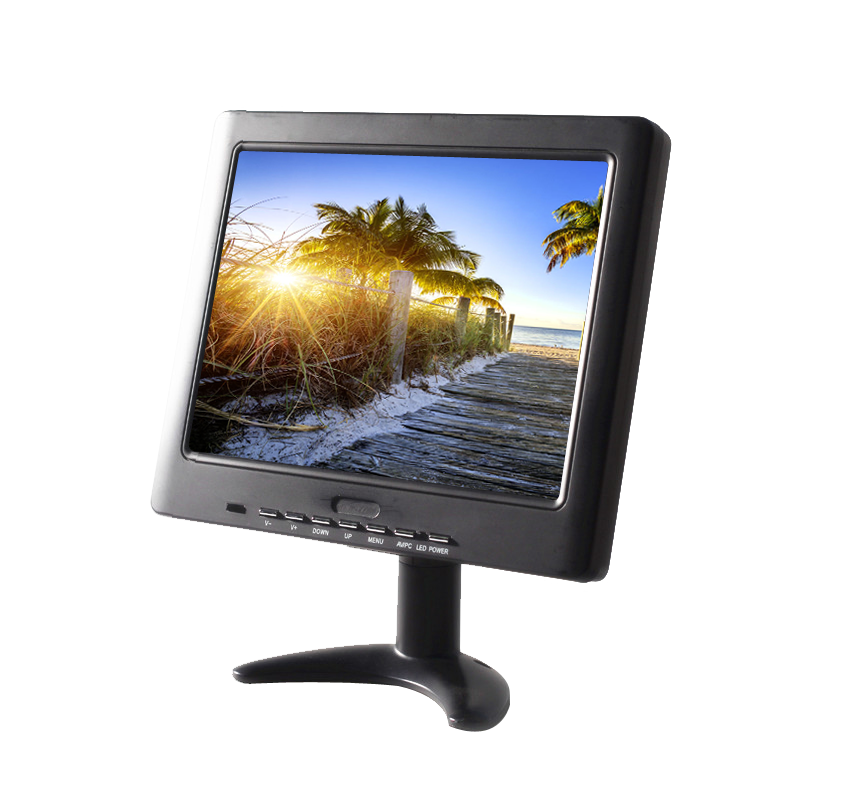

10.4" plastic TFT LCD Display, high resolution screen,can be used as CCTV monitors and and industrial monitors.

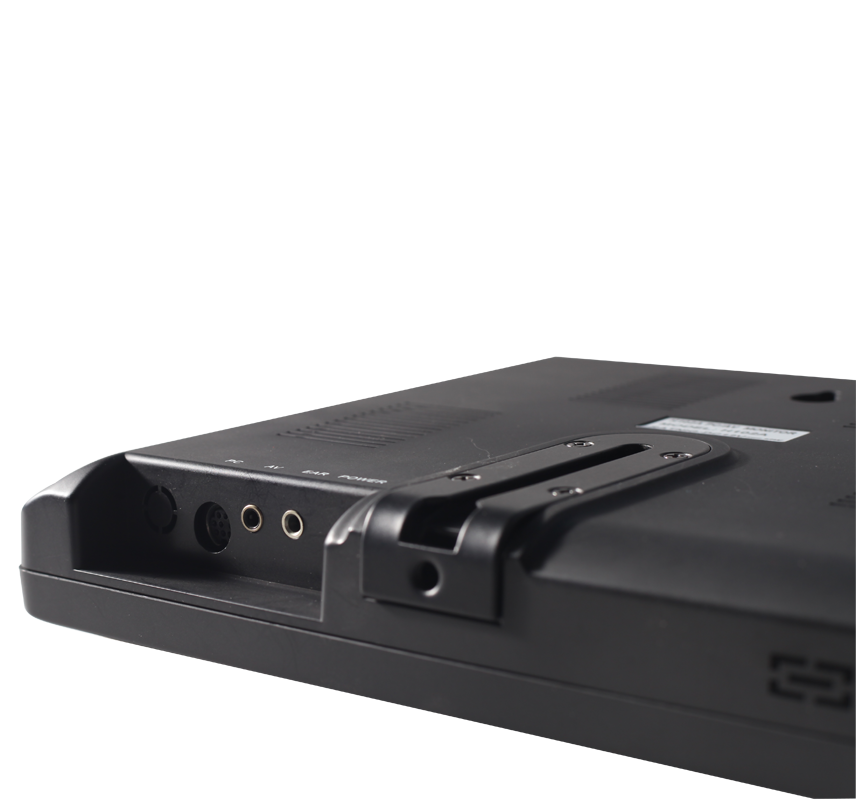

Interface: VGA/AV input RCA output
Optional: BNC/TV
Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean
Certification: FCC, CE, ROHS,CCC
Display Parameters |
|||||
| Aspect Ratio |
4:3 |
Contrast Ratio | 350:1 | Panel Type | LCD |
| Display Area | 211.2×158.4mm | Brightness | 400cd/㎡ | Backlight | CCFL |
| Resolution | 800×600 | Viewing Angle | 100°/120° |
|
|
| Screen Color | 262K | Response Time | 35ms | ||
Specification |
|||||
| Installation | Stand | Frame color | Black | Product Dimensions | 254×210×37mm |
| Power input/output | 110V to 240V input, 12V output | Operating temperature | -10~60℃ | Humidity temperature | 0~80%@50℃ ( non-condensing ) |
| Storage temperature | -20~70℃ | Box Packing Dimensions |
348×259×75mm |
||
