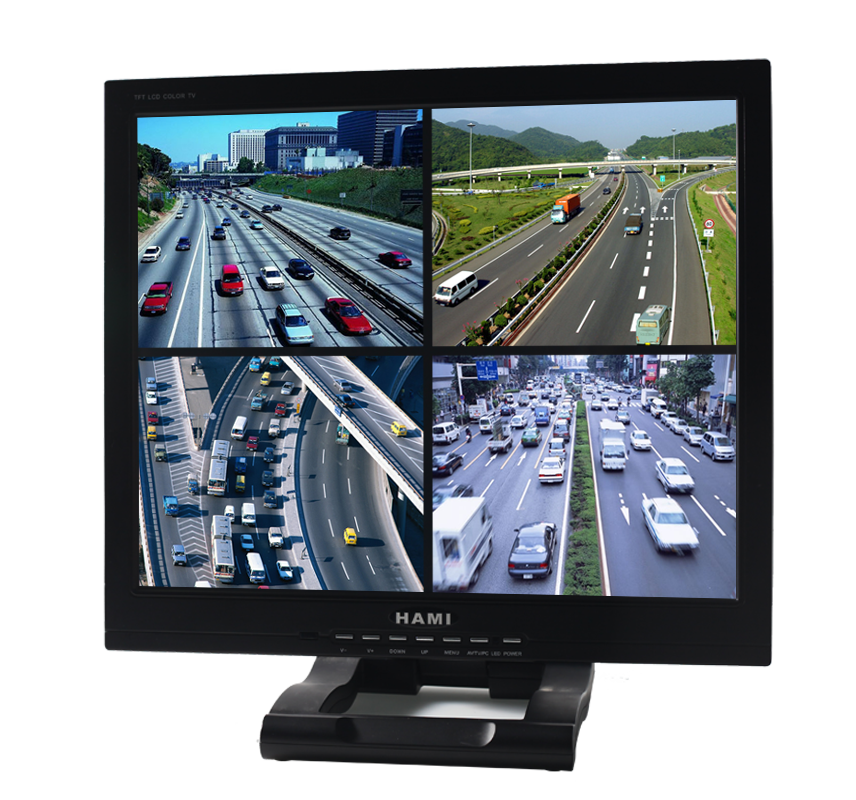

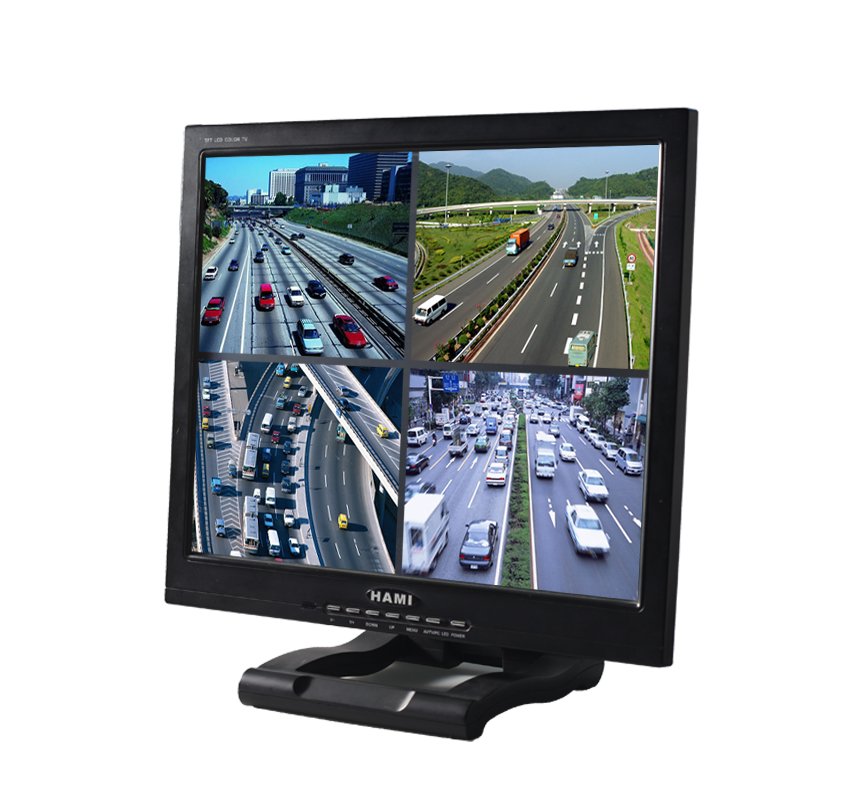

17" plastic TFT LCD Display, with standard VGA and AV ports, optional BNC and HDMI ports, can be used for CCTV security cameras and industrial machines.

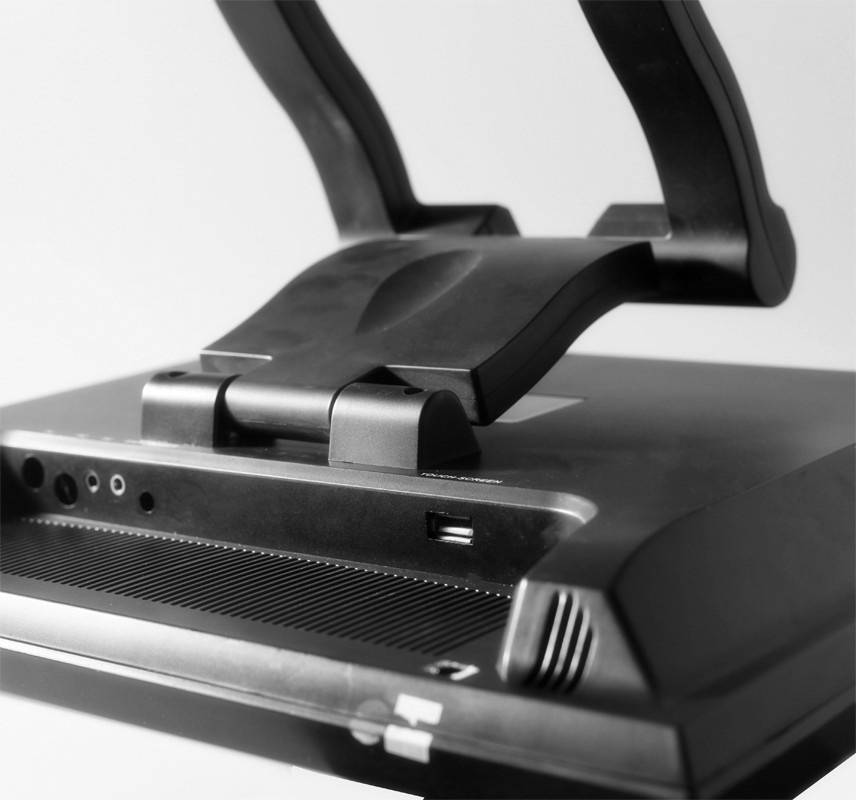

Interface: VGA/AV input; Earphone Jack
Optional: BNC/TV
Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean
Certification: FCC, CE, ROHS,CCC
Display Parameters |
|||||
| Aspect Ratio |
4:3 |
Contrast Ratio | 1000:1 | Panel Type | LCD |
| Display Area | 337.92×270.33mm | Brightness | 250cd/㎡ | Backlight | CCFL |
| Resolution | 1280×1024 | Viewing Angle | 170°/160° |
|
|
| Screen Color | 16.7M | Response Time | 5ms | ||
Specification |
|||||
| Installation | Stand | Frame color | Black | Product Dimensions |
379×330×48mm |
| Power input/output | 110V to 240V input, 12V output | Operating temperature | 0~50℃ | Humidity temperature | 5~95%@40℃ ( non-condensing ) |
| Storage temperature |
-25~60℃ |
Box Packing Dimensions |
440×142×388mm |
||
